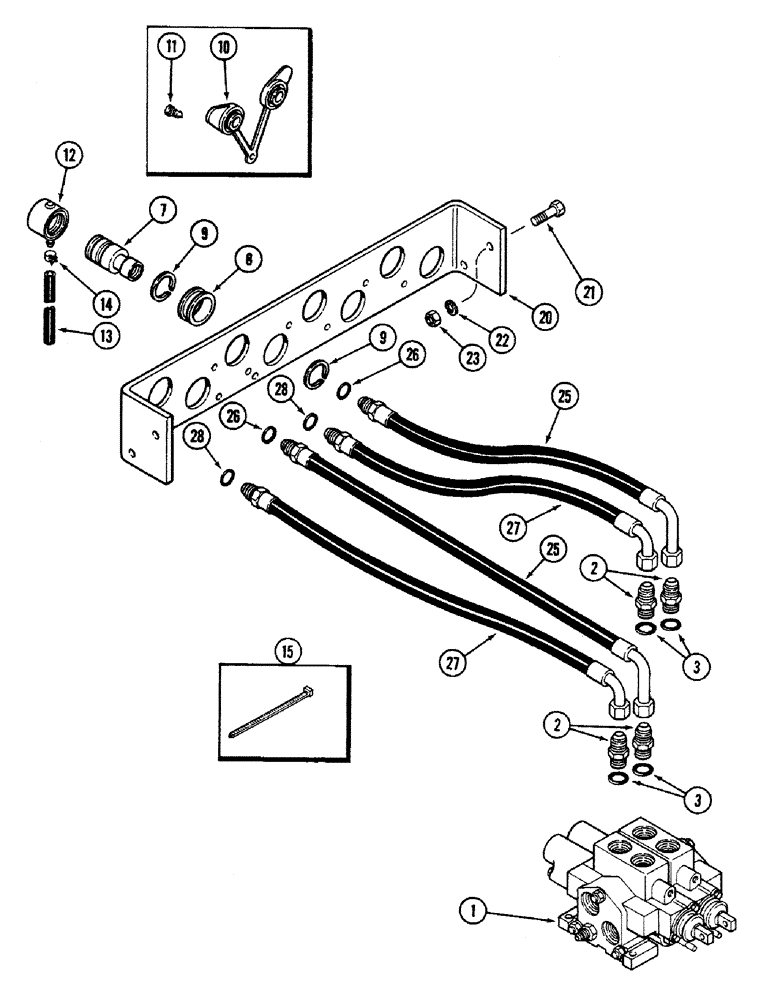

Запчасти Case IH 4694 (8-328) - REMOTE HYDRAULIC HOSES AND COUPLINGS, TWO CIRCUIT SYSTEM WITHOUT LOAD CHECK (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - remote hydraulic control (See Figure 8-340)

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - 5/8 tube 7/8-14 inch thread, Includes: Ref. 3

4шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (19 ID x 2 MM width)

1шт.

7

REF

INSTRUCTION

COUPLING ASSEMBLY - break-away (See Figure 8-356)

4шт.

8

A149221

RETAINER

- coupling to rear plate

4шт.

9

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, retainer

8шт.

10

A145468

PLUG

- dust, coupling

2шт.

11

A162364

FASTENER

- dust plug

2шт.

12

A177479

CAP

ASSEMBLY - dust

4шт.

13

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain 7.90 mm ID x 914.40 mm, SAE J200

4шт.

14

A180159

CLAMP,10.29mm - 12.32mm

- drain hose retaining

4шт.

15

R38237

STRAP

- retaining

1шт.

20

A165737

PLATE ASSY.

PLATE - mounting, remote coupling

1шт.

21

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

22

92-8

LOCK WASHER,1/2"

4шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

25

A162487

HOSE

ASSEMBLY - valve to coupling, 23 inch (584 MM) long, Includes: Ref. 26

2шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (19 ID x 2 MM width)

1шт.

27

A162486

HOSE

ASSEMBLY - valve to coupling, 20-1/2 inch (521 MM) long, Includes: Ref. 28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (19 ID x 2 MM width)

1шт.
