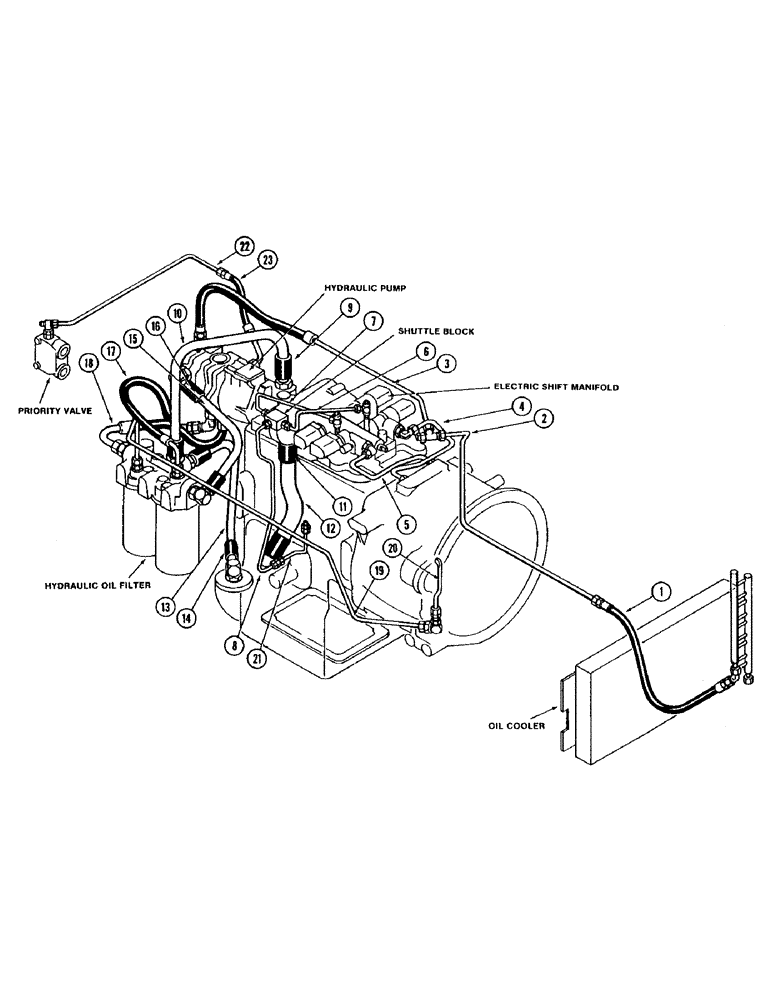

Запчасти Case IH 4694 (1-020) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX

1

Oil Cooler Return Hose, Page 8-305

1шт.

2

Oil Cooler Return Hose Tube, Page 8-305

1шт.

3

Relief Valve Drain Tube, Page 8-307

1шт.

4

(C4) Clutch to Valve, Page 6-147

1шт.

5

(C1) Clutch to Valve, Page 6-147

1шт.

6

(C3) Shuttle Tube, Page 6-147

1шт.

7

(C2) Shuttle Tube, Page 6-147

1шт.

8

Valve to Shift Housing Tube, Page 6-147

1шт.

9

Outlet Tube Hose, Page 8-289

1шт.

10

Pump to Filter Outlet Tube, Page 8-289

1шт.

11

Suction Tube Hose, Page 8-289

1шт.

12

Pump Suction Tube, Page 8-289

1шт.

13

Filter to Pressure Relief Valve Tube, Page 8-289

1шт.

14

Tube to Relief Valve Hose, Page 8-289

1шт.

15

Filter to Gear Pump Tube, Page 8-289

1шт.

16

Gear Pump Tube Hose, Page 8-289

1шт.

17

Gear Pump to Filter Hose, Page 8-289

1шт.

18

Filter to Piston Pump Hose, Page 8-289

1шт.

19

(C1) Lubrication Tube, Page 8-285

1шт.

20

(C1) Lubrication Tube, Page 8-285

1шт.

21

Shift Lubrication Tube, Page 6-151

1шт.

22

Priority Sensing Tube, Page 5-121

1шт.

23

Priority Sensing Hose, Page 5-121

1шт.
