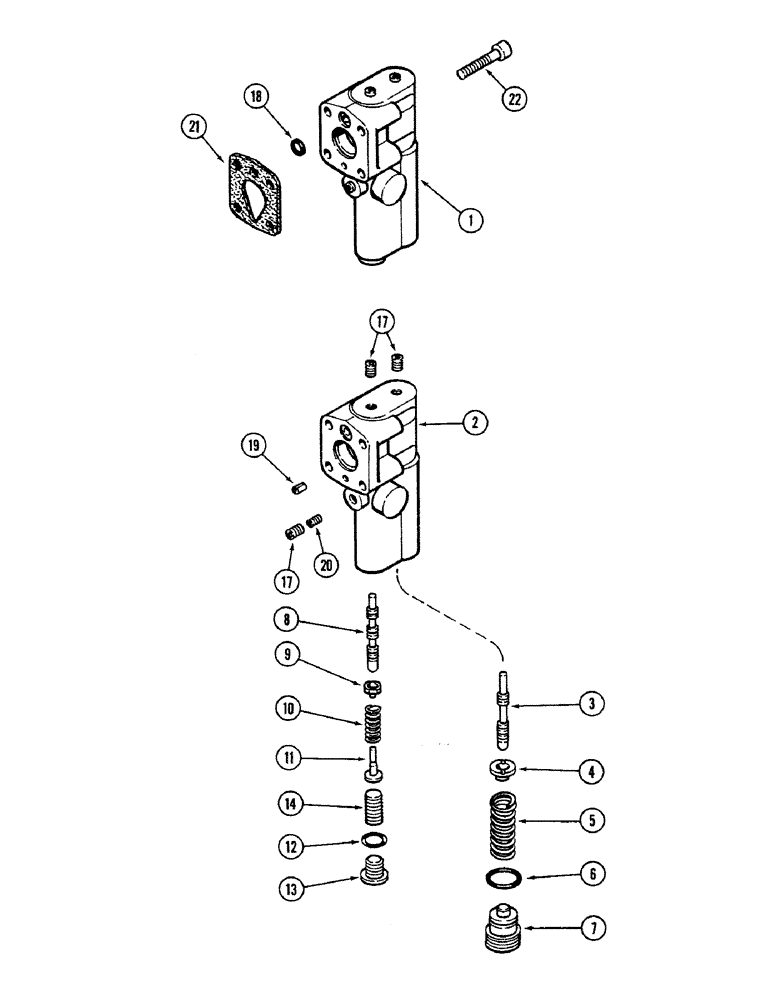

Запчасти Case IH 4694 (8-318) - COMPENSATOR ASSEMBLY (08) - HYDRAULICS

1

A52401

EQUALIZER

COMPENSATOR ASSEMBLY - pump, Includes: Ref. 2 - 22

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order A52401)

1шт.

3

A47316

SPOOL

- pressure limiter

1шт.

4

A47317

PLUG

SEAT - pressure limiter spool

1шт.

5

A47318

SPRING

- pressure limiter spool

1шт.

6

A65918

O-RING,0.551" ID x 0.691" OD

- 9/16 inch (14 MM) ID

1шт.

7

A47320

PLUG

- pressure limiter spool adjusting

1шт.

8

A47321

SPOOL

- load sensing

1шт.

9

A49441

SEAT

- load sensing spool, upper

1шт.

10

A49439

SPRING

- load sensing spool

1шт.

11

A49442

SEAT

- load sensing spool, lower

1шт.

12

A49435

O-RING

- sensing plug

1шт.

13

A49437

PLUG

- hex socket

1шт.

14

A49440

SET SCREW,Lock

- set, load sensing, self-locking

1шт.

17

221-850

PLUG,Hex Soc, 1/16"-27

- socket head, 1/16 inch PT

3шт.

18

A138385

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- 5/16 inch (8 MM) ID

1шт.

19

A47645

PLUG

- valve body

1шт.

20

A47327

FITTING

ORIFICE - valve body

1шт.

21

A49436

GASKET

- valve

1шт.

22

165-26

HEX SOC SCREW,#10 - 24 x 1 1/4"

SCREW - socket head cap, no. 10 NC x 1-1/4 inch

4шт.
