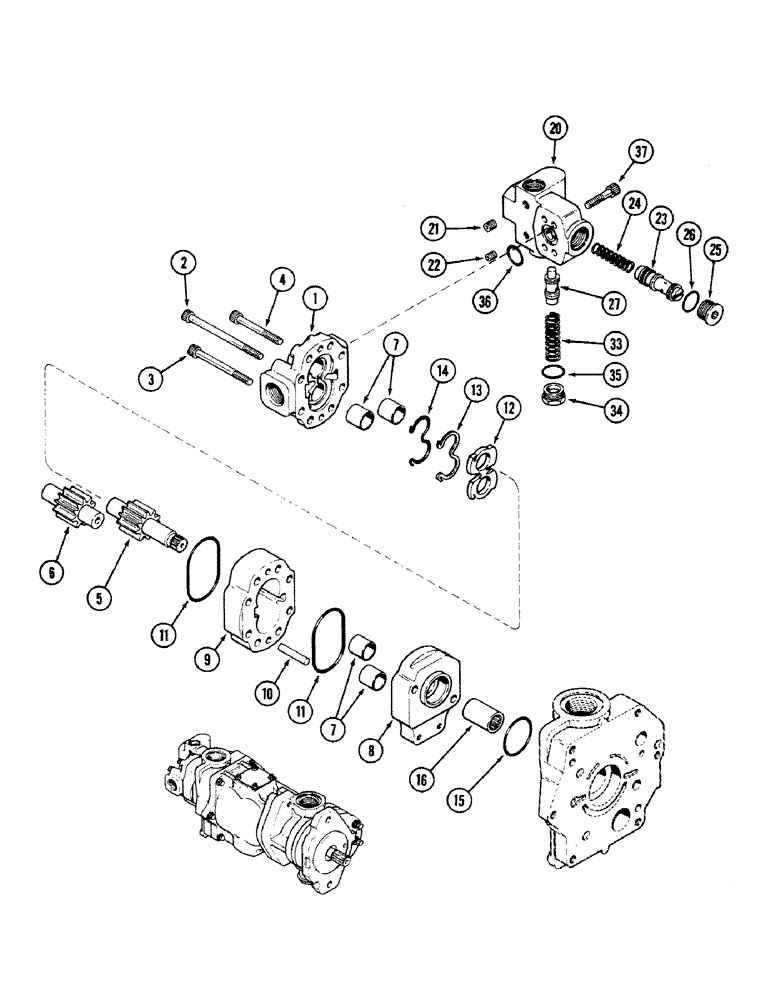

Запчасти Case IH 4694 (8-316) - TRIPLE HYDRAULIC PUMP ASSEMBLY, GEAR PUMP SECTION (08) - HYDRAULICS

A166507

HYDRAULIC PUMP

PUMP ASSEMBLY - triple hydraulic, Includes: Ref. 1 - 37 in this figure and parts in Figures 8-308 thru 8-314

1шт.

129330A1R

REMAN-HYD PUMP

4694 (1/83-12/86), Center Section (Piston Pump) Only.

1шт.

129330A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

A48145

PUMP

ASSEMBLY - gear, steering hydraulic, Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - rear

1шт.

2

NSS

NOT SOLD SEPARAT

SCREW - cap, mounting

2шт.

3

NSS

NOT SOLD SEPARAT

SCREW - cap, cover

2шт.

4

NSS

NOT SOLD SEPARAT

SCREW - cap, cover

4шт.

5

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

7

NSS

NOT SOLD SEPARAT

BUSHING - gear shaft

4шт.

8

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

10

NSS

NOT SOLD SEPARAT

PIN - dowel

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING - body

2шт.

Part of Gear Pump Seal Kit, P/N A47643

1шт.

12

NSS

NOT SOLD SEPARAT

PLATE - rear

1шт.

Part of Gear Pump Seal Kit, P/N A47643

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - teflon

1шт.

Part of Gear Pump Seal Kit, P/N A47643

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - rubber

1шт.

Part of Gear Pump Seal Kit, P/N A47643

1шт.

15

F98069

O-RING

- gear pump to piston pump

1шт.

Part of Gear Pump Seal Kit, P/N A47643

1шт.

16

A47312

COUPLING, BREAK AWAY

COUPLING - gear pump drive to piston pump

1шт.

A47643

SEAL

KIT - seal, gear pump, Includes: Ref. 11 - 15

1шт.

A47642

VALVE

ASSEMBLY - flow divider, Includes: Ref. 20 - 35

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

21

221-1849

PLUG

- socket head, 1/8 inch PT

1шт.

22

221-850

PLUG,Hex Soc, 1/16"-27

- socket head, 1/16 inch PT

1шт.

23

A47647

SPOOL

- flow divider

1шт.

24

A47648

SPRING

- flow divider spool

1шт.

25

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy, Incl Ref 26 Hex Soc, 3/4"-16 ORB

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (19 ID x 2 MM width)

1шт.

Part of Flow Divider Valve Seal Kit, P/N A47653

1шт.

27

A47650

SPOOL

ASSEMBLY - relief valve

1шт.

33

A47651

SPRING

- relief valve

1шт.

34

A47652

PLUG

ASSEMBLY - relief valve, Includes: Ref. 35

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (19 ID x 2 MM width)

1шт.

Part of Flow Divider Valve Seal Kit, P/N A47653

1шт.

36

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

- valve to pump (Replaces S16202)

1шт.

Part of Flow Divider Valve Seal Kit, P/N A47653

1шт.

37

861-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

SCREW, Hex Soc Hd, M8 x 35, 12.9

4шт.

A47653

KIT

- seal, flow divider valve, Includes: Ref. 26, 35 and 36

1шт.
