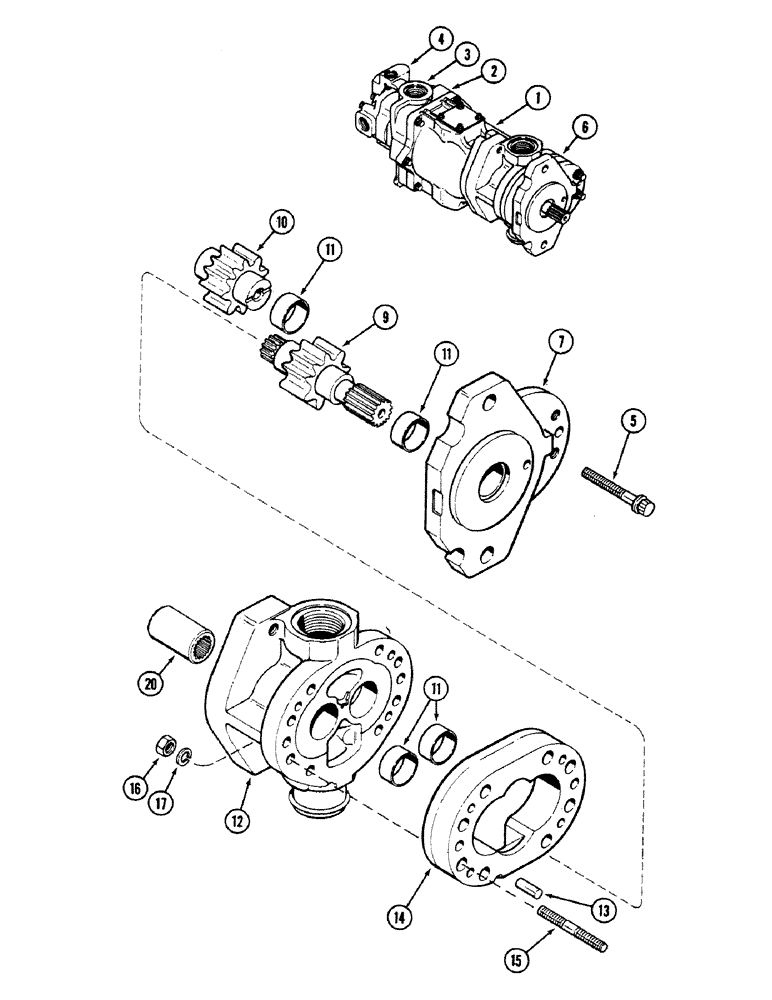

Запчасти Case IH 4694 (8-308) - TRIPLE HYDRAULIC PUMP ASSEMBLY, CHARGE PUMP SECTION (08) - HYDRAULICS

A166507

HYDRAULIC PUMP

PUMP ASSEMBLY - triple hydraulic, Includes: Ref. 1 - 20 in this figure and parts in Figures 8-310 thru 8-316

1шт.

129330A1R

REMAN-HYD PUMP

4694 (1/83-12/86), Center Section (Piston Pump) Only.

1шт.

129330A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - piston (See Figure 8-310)

1шт.

2

A49494

VALVE

COMPENSATOR ASSEMBLY - pump (See Figure 8-314)

1шт.

3

A48145

PUMP

ASSEMBLY - gear (See Figure 8-316)

1шт.

4

A47642

VALVE

ASSEMBLY - flow divider, front steering (See Figure 8-316)

1шт.

5

A47639

BOLT,12 Pt Flg, M8 x 110mm, Cl 12.9

- cap, 8 x 110 MM

2шт.

6

A47640

PUMP

ASSEMBLY - charge, Includes: Ref. 7 - 17

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

11

NSS

NOT SOLD SEPARAT

BUSHING - gear

4шт.

12

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

13

NSS

NOT SOLD SEPARAT

DOWEL - body

2шт.

14

NSS

NOT SOLD SEPARAT

BODY - center section

1шт.

15

NSS

NOT SOLD SEPARAT

STUD - body

4шт.

16

NSS

NOT SOLD SEPARAT

NUT - stud

4шт.

17

NSS

NOT SOLD SEPARAT

WASHER - lock

4шт.

20

A47641

COUPLING, BREAK AWAY

COUPLING - charge pump to piston pump

1шт.
