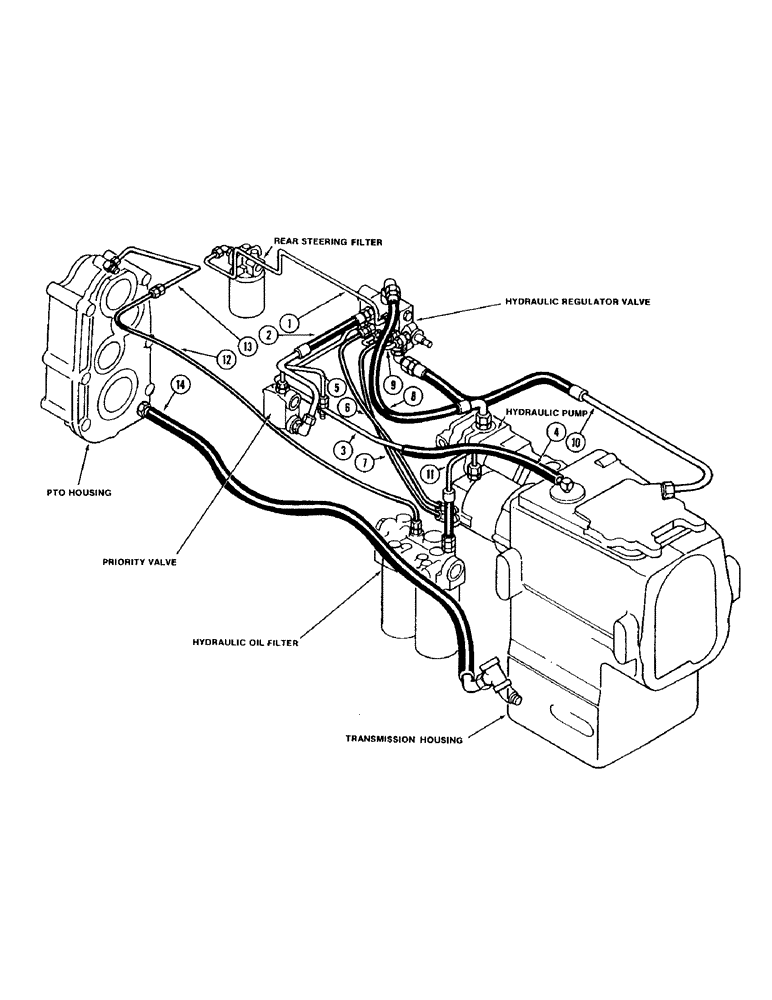

Запчасти Case IH 4694 (1-018) - PICTORIAL INDEX, PTO HYDRAULICS (00) - PICTORIAL INDEX

1

Steering Filter Inlet Tube, Page 5-127

1шт.

2

Regulator to Priority Valve Hose, Page 5-121

1шт.

3

Regulator to Reservoir Tube, Page 5-121

1шт.

4

Regulator Valve Drain Hose, Page 8-293

1шт.

5

Priority Valve Drain Tube, Page 5-121

1шт.

6

Regulator Valve to PTO Clutch Hose, Page 8-283

1шт.

7

Regulator Valve to PTO Clutch Hose, Page 8-283

1шт.

8

Hydraulic Pump to Regulator Valve Hose, Page 5-121

1шт.

9

Sump Bypass Tube, Page 8-293

1шт.

10

Pressure Regulator Valve to Top Cover Hose, Page 8-307

1шт.

11

PTO Clutch Lubrication Hose, Page 8-307

1шт.

12

PTO Front Lubrication Tube, Page 8-283

1шт.

13

PTO Rear Lubrication Tube, Page 8-283

1шт.

14

PTO Drain Hose, Page 8-283

1шт.
