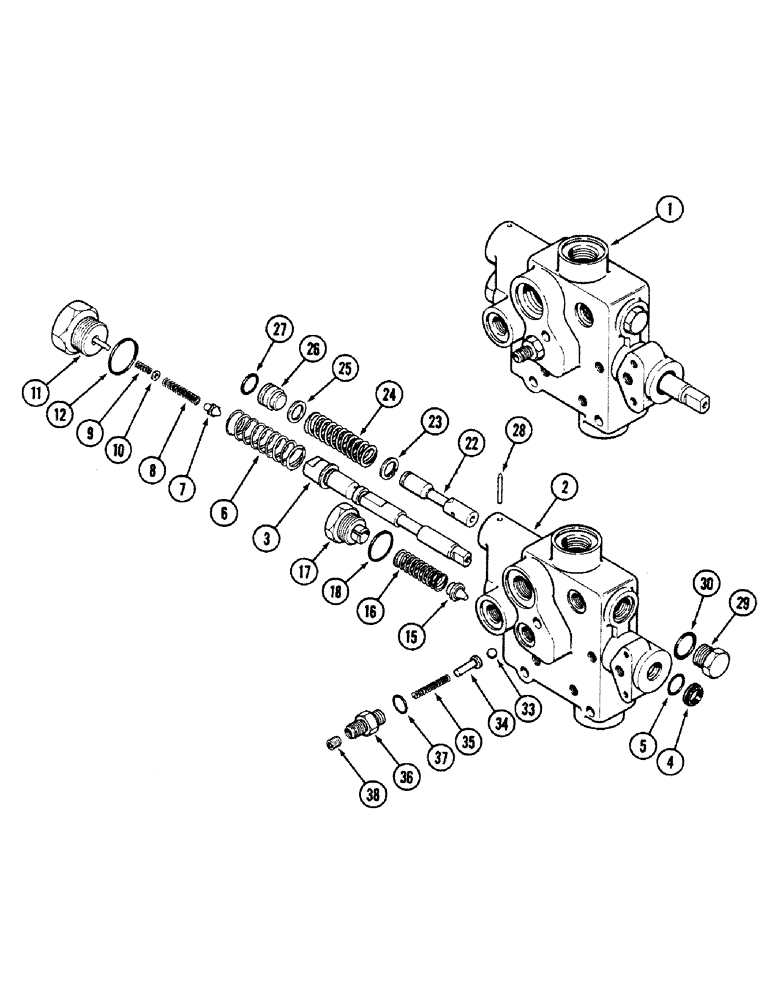

Запчасти Case IH 4694 (8-294) - HYDRAULIC PRESSURE REGULATOR VALVE - A169224 (08) - HYDRAULICS

1

A169224

VALVE

ASSEMBLY - regulator, hydraulic pressure, Includes: Ref. 2 - 38

1шт.

Reference No. A139910 stamped on body of valve. For repairs order G107961.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - valve (Includes relief valve seat)

1шт.

3

A139912

SPOOL

- control, PTO

1шт.

4

A63600

STRAP

RING - wiper, control spool

1шт.

5

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- spool

1шт.

6

A139739

SPRING

- return, control spool

1шт.

7

A61991

POINT

- modulator, control spool

1шт.

8

A141647

SPRING

- modulator, 1-55/64 inch (47 MM) free length

1шт.

9

A139738

SPRING

- modulator, 5/8 inch (16 MM) free length

1шт.

10

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring guide

1шт.

11

A139689

PLUG

ASSEMBLY - modulator, Includes: Ref. 12

1шт.

12

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 ID x 7/64 width (27 ID x 3 MM width)

1шт.

15

A60687

VALVE POPPET

POPPET - relief valve

1шт.

16

G109164

SPRING

- relief valve (Replaces A60286)

1шт.

17

A139173

PLUG

ASSEMBLY - hex, relief valve, 7/8-14 thread, Includes: Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 inch width (19 ID x 2 MM width)

1шт.

22

NSS

NOT SOLD SEPARAT

SPOOL - pressure regulator (Order A169224)

1шт.

23

A60273

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

25

G109129

SPRING

- regulator spool (Replaces A60274)

1шт.

25

A149281

SHIM

- regulator spring, 1/64 inch (0.40 MM)

1шт.

26

A149282

PLUG

- regulator spring

1шт.

27

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- 11/16 ID x 3/32 inch width (17 ID x 2 MM width)

1шт.

28

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN - roll, 3/16 x 1-1/4 inch

1шт.

29

86512512

PLUG,7/8" - 14 ORB

ASSEMBLY - hex, 7/8-14 inch, Incl. Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (19 ID x 2 MM width)

1шт.

33

211-28

BALL,13/32" Dia

- detent, 13/32 inch (10 MM) diameter

1шт.

34

G109322

PIN

- detent spring (Replaces A161859)

1шт.

35

G109019

SPRING

- detent (Replaces A141647)

1шт.

36

A169229

HYD CONNECTOR

CONNECTOR ASSEMBLY - clutch tube (Replaces G109083), Includes: Ref. 37 and 38

1шт.

37

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 2 mm)

1шт.

38

A160657

SET SCREW,3/8" - 16

- set

1шт.
