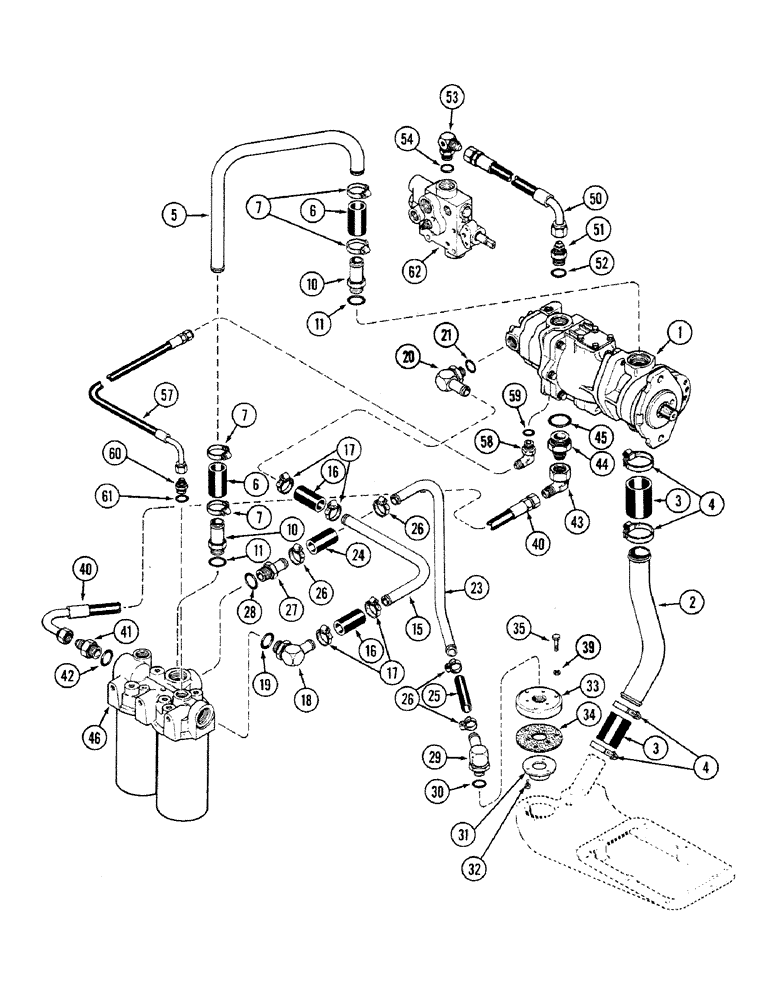

Запчасти Case IH 4694 (8-288) - HYDRAULIC CHARGE SYSTEM (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See Figure 8-308)

1шт.

2

A160168

TUBE

- suction, Serial Range: sump-pump

1шт.

3

A144526

HOSE

- suction tube, 2 ID x 3-1/32 inch long (51 x 77 MM)

2шт.

4

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose, 2-1/16 inch to 3 inch

4шт.

5

A163040

TUBE

- outlet, Serial Range: pump-filter

1шт.

6

D36350

HOSE

- outlet tube (Order R13911 and, Serial Range: cut-length)

2шт.

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- outlet 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

7

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

10

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

CONNECTOR ASSEMBLY - 1-1/4 hose x 1-5/8-12 inch thread, Incl. Ref. 11

2шт.

11

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-23/32 ID x 1/8 inch width (44 ID x 3 MM width)

1шт.

15

A160213

TUBE

- filter to gear pump

1шт.

16

A160211

HOSE,1.00" ID x 3.00", SAE 30R2 TYPE 2 PER SAE J30

1.00" ID x 3.00", SAE 30R2 - Gear Pump Tube

2шт.

17

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch

4шт.

18

217-354

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW ASSEMBLY - 90 degree, 1 hose x 1-5/8-12 inch thread, Includes: Ref. 19

1шт.

19

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-23/32 ID x 1/8 inch width (44 ID x 3 MM width)

1шт.

20

217-366

FITTING,90 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90°, 1" Hose x 1 1/16"-12 ORB Beaded, Assy, Includes Ref. 21

1шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64 inch width (23 ID x 3 MM width)

1шт.

23

A160214

TUBE

- filter to pressure relief valve

1шт.

24

A160211

HOSE,1.00" ID x 3.00", SAE 30R2 TYPE 2 PER SAE J30

1.00" ID x 3.00", SAE 30R2 - Tube to Filter

1шт.

25

L60332

HOSE

- tube to relief valve, 1 ID x 5 inch long (25 x 128 MM)

1шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch

4шт.

27

217-173

FITTING,1" Hose Barb x 1-5/8" - 12 Male ORB

Includes Ref. 28 1" Hose x 1 5/8"-12 ORB, Beaded

1шт.

28

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-23/32 ID x 1/8 inch width (44 ID x 3 MM width)

1шт.

29

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW ASSEMBLY - 90 degree, 1 hose x 1-5/16-12 inch thread, Includes: Ref. 30

1шт.

30

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch width (30 ID x 3 MM width)

1шт.

31

A152794

VALVE

- relief, filter oil pressure (In transmission sump)

1шт.

31

113-37

BOLT,Locking, 1/4" - 20 x 3/4", Gr 5, Full Thd

- hex lock, 1/4 NC x 3/4 inch

3шт.

33

A152779

HOUSING

- pressure relief valve

1шт.

34

A152826

GASKET

-, Serial Range: housing-sump

1шт.

35

113-157

BOLT,Locking, 5/16" - 18 x 1-1/2", Gr 5

- hex lock, 5/16 NC x 1-1/2 inch

3шт.

39

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

40

L101916

HOSE,1.00" ID x 28.00"

Filter to Piston Pump 1.00" ID x 28.00"

1шт.

41

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

CONNECTOR ASSEMBLY - 1 tube 1-5/8-12 inch thread, Includes: Ref. 42

1шт.

42

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-23/32 ID x 1/8 inch width (44 ID x 3 MM width)

1шт.

43

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

ASSEMBLY - 90 degree swivel, 1 tube x 1-5/16-12 inch

1шт.

44

A147128

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - elbow to pump, 1-5/16-12 x 1-7/8-12 inch thread, Includes: Ref. 45

1шт.

45

218-5349

O-RING,1.364" ID x 1.504" OD x 0.07"

- 2-3/32 ID x 1/8 inch width (53 ID x 3 MM width)

1шт.

46

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic oil (See Figure 8-302)

1шт.

50

H377762

HOSE

- outlet, piston pump to regulator valve (Replaces A148749)

1шт.

51

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSEMBLY - 3/4 tube 1-5/16-12 inch thread, Incl. Ref. 52

1шт.

52

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch width (30 ID x 3 MM width)

1шт.

53

A169036

FITTING

ELBOW ASSEMBLY - 90 degree, 3/4 tube 1-1/16-12 inch thread, Includes: Ref. 54

1шт.

54

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64 inch width (23 ID x 3 MM width)

1шт.

57

A151831

HOSE

- gear, Serial Range: pump-filter

1шт.

58

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree, 1/2 tube 3/4-16 inch thread, Includes: Ref. 59

1шт.

60

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - 1/2 tube 1-1/16 inch thread, Includes: Ref. 61

1шт.

61

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 7/64 inch width (23 ID x 3 MM width)

1шт.

62

REF

INSTRUCTION

VALVE ASSEMBLY - regulator (See Figure 8-294)

1шт.

59

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch width (16 ID x 2 MM width)

1шт.
