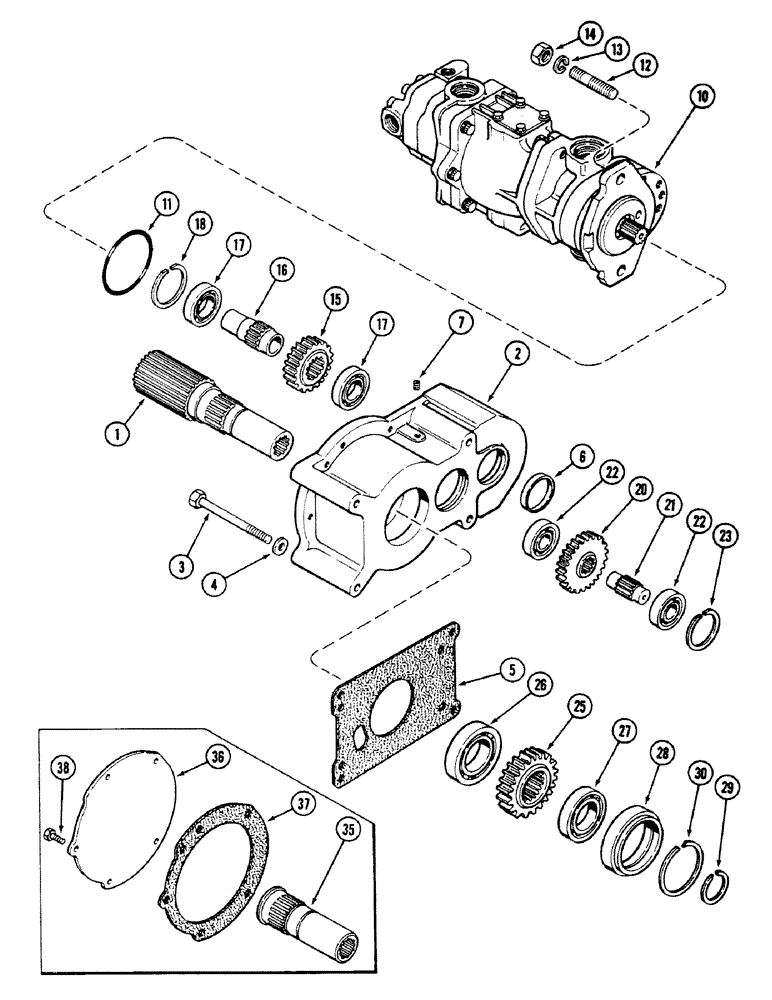

Запчасти Case IH 4694 (8-286) - HYDRAULIC PUMP DRIVE (08) - HYDRAULICS

1

A156124

SHAFT

- hydraulic pump drive and PTO input

1шт.

2

A151698

HOUSING

- hydraulic pump drive

1шт.

3

113-437

BOLT,Hex, 1/2" - 13 x 6", Gr 5

4шт.

4

A30061

WASHER

- mounting bolt

4шт.

5

A153700

GASKET

- housing to transmission case

1шт.

6

A24361

PLUG

- cup, 1-3/8 inch (35 MM) diameter

1шт.

7

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - square head, 1/8 inch PT (Replaces 221-849)

1шт.

10

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See page 8-260)

1шт.

11

49389

O-RING,0.21" Thk x 4.1" ID, -346, Cl 5, 75 Duro

- 4-1/8 ID x 3/16 inch width (105 ID x 5 MM width)

1шт.

12

A50237

STUD

-, Serial Range: pump-housing

2шт.

13

195-108

WASHER,5/8"

- 11/16 x 1-3/4 x 9/64 inch (18 x 35 x 4 MM)

2шт.

14

129-107

NUT,5/8"-11, G5

2шт.

15

A151310

GEAR

- drive, hydraulic pump coupling

1шт.

16

A144124

COUPLING, BREAK AWAY

COUPLING - pump drive shaft

1шт.

17

A150525

BALL BEARING,1.5748" ID x 2.6772" OD x 0.5906"

BEARING - pump drive coupling

2шт.

18

A27414

RING

- snap, bearing

1шт.

20

A151311

GEAR

- idler, pump drive

1шт.

21

A144122

SHAFT

- idler gear

1шт.

22

A150643

BALL BEARING,24.99mm ID x 62mm OD x 17mm W

BEARING - idler shaft

2шт.

23

T17410

SNAP RING,M62 x 1.58mm Thk, Int

RING - snap, bearing

1шт.

25

A151309

GEAR

- drive, input shaft

1шт.

26

A150644

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING - rear, input shaft

1шт.

27

A150523

BALL BEARING,1.9685" ID x 3.5433" OD x 0.7874"

BEARING - front, input shaft

1шт.

28

A144120

RING

- pilot, front bearing

1шт.

29

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, Serial Range: bearing-shaft

1шт.

30

G46143

RING

- snap, bearing to pilot ring

1шт.

35

A144136

COUPLING, BREAK AWAY

COUPLING - drive (Without PTO)

1шт.

36

A144137

COVER

- rear, pump drive housing (Without PTO)

1шт.

37

A153699

GASKET

- cover

1шт.

38

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.
