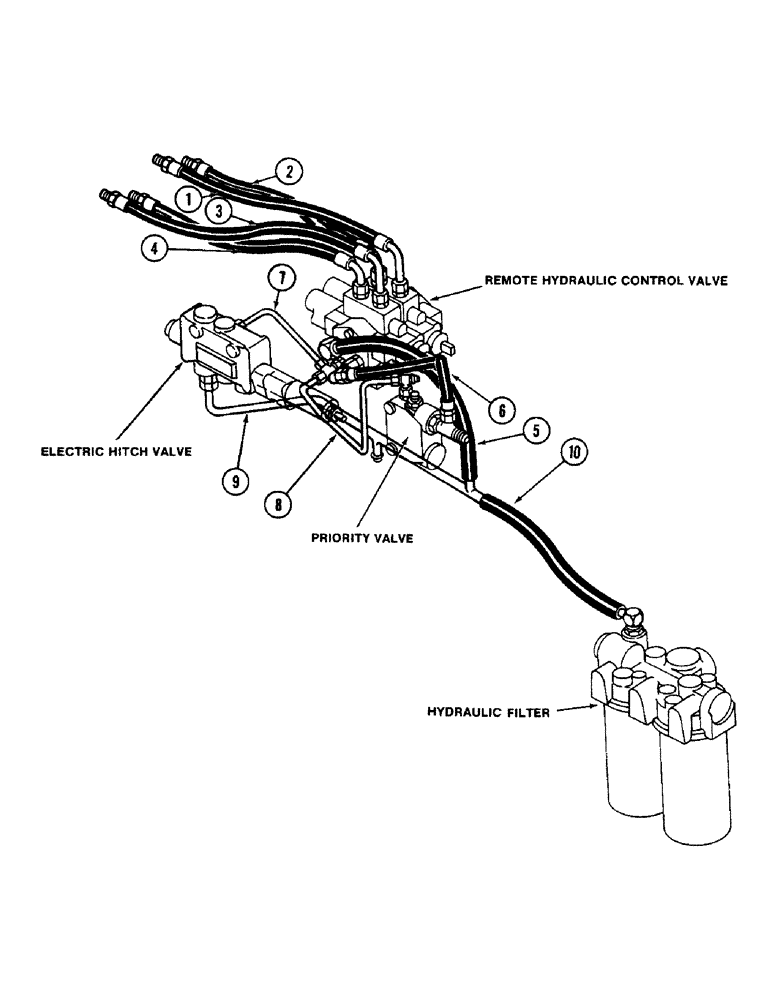

Запчасти Case IH 4694 (1-016) - PICTORIAL INDEX, REMOTE HYDRAULICS (00) - PICTORIAL INDEX
4
5
10
1
9
2
3
7
6
8
№
Артикул
Название
Примечание
Количество
1
Remote Valve to Coupling Hose, Page 8-329
1шт.
2
Remote Valve to Coupling Hose, Page 8-329
1шт.
3
Remote Valve to Coupling Hose, Page 8-329
1шт.
4
Remote Valve to Coupling Hose, Page 8-329
1шт.
5
Remote Valve Drain Hose, Page 8-327
1шт.
6
Remote to Priority Valve Hose, Page 8-327
1шт.
7
Hitch Valve Sensing Tube, Page 8-327
1шт.
8
Priority to Hitch Valve Tube, Page 8-327
1шт.
9
Hitch Valve Drain Tube, Page 8-327
1шт.
10
Drain Tube to Filter Hose, Page 8-327
1шт.
Выбрано товаров: 10
