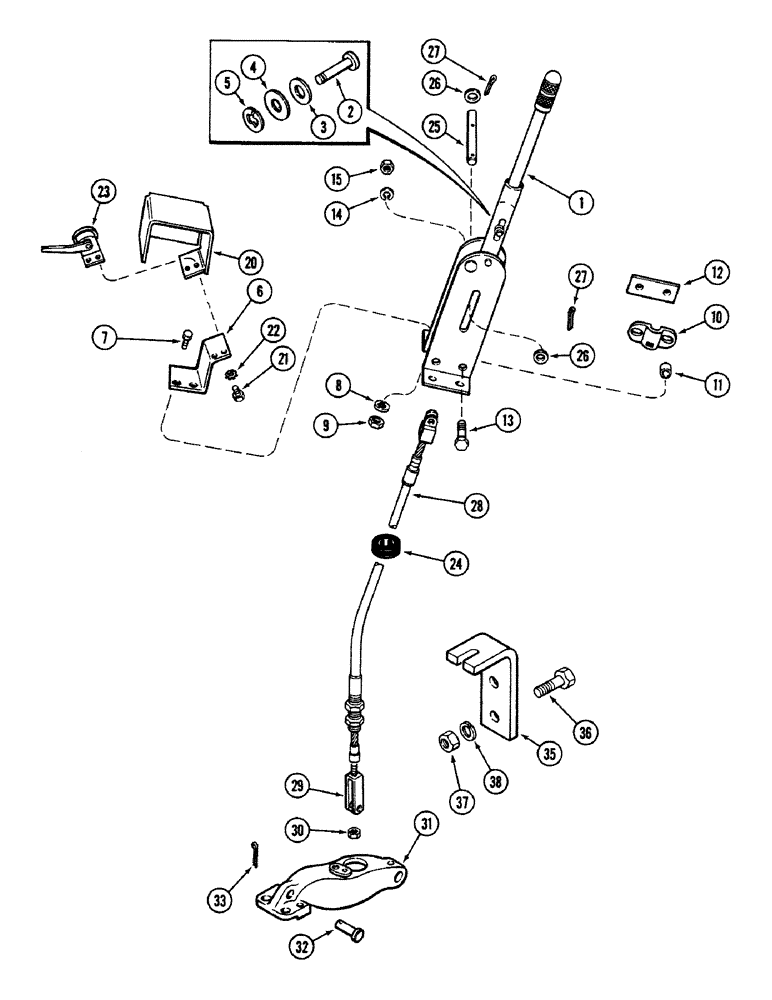

Запчасти Case IH 4694 (7-276) - PARKING BRAKE LINKAGE (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
A161718
LEVER
ASSEMBLY - hand, parking brake, Includes: Ref. 2 - 5
1шт.
2
A42204
PIN
- lever
1шт.
3
A55934
WASHER
- spring
1шт.
4
195-103
WASHER,5/16"
- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 MM)
1шт.
5
A52207
RING - snap (Order F45340)
1шт.
6
A176408
BRACKET
- switch, hand brake (Replaces A169261)
1шт.
7
113-113
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
4шт.
8
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
4шт.
9
9635082
NUT,5/16" - 18, Gr 5
4шт.
10
A76109
CLAMP
- cable to lever assembly
1шт.
11
A31238
BUSHING
SPACER - clamp bolt
2шт.
12
A75745
BUSHING
SPACER - clamp
1шт.
13
113-122
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
2шт.
14
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
20
A139933
COVER
- switch
1шт.
21
163-9
SCREW,Hex, #10 - 32 x 1/2"
- hex machine, no. 10-32 x 1/2 inch
2шт.
22
193-70
LOCK WASHER,Ext-Int Tooth, #10
WASHER - internal-external tooth, 5/16 inch
2шт.
23
A33977
SWITCH
- warning light (See Fig 4-74)
1шт.
24
F37765
GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut
- cable
1шт.
25
A161784
PIN
- clevis, cable to hand lever
1шт.
26
195-521
WASHER,5/16", SAE
- flat, 11/32 x 11/16 x 1/16 inch (9 x 18 x 2 MM)
2шт.
27
132-316
COTTER PIN,3/32" x 1 1/4"
PIN, SPLIT (COTTER), 3/32" x 1 1/4"
2шт.
28
A138977
CABLE
ASSEMBLY - control, parking brake, Includes: Ref. 29 and 30
1шт.
29
A45085
CLEVIS
- cable to lever pin
1шт.
30
131-751
NUT - hex lock, 5/16 inch NF
1шт.
31
REF
INSTRUCTION
LEVER - brake actuating (See Figure 7-274)
1шт.
32
141-54
CLEVIS PIN,3/8" x 1 1/16"
clevis to actuating lever 3/8" x 1 1/16"
1шт.
33
132-316
COTTER PIN,3/32" x 1 1/4"
PIN, SPLIT (COTTER), 3/32" x 1 1/4"
1шт.
35
A138978
BRACKET
- stop, control cable
1шт.
36
113-412
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
2шт.
37
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
38
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
Выбрано товаров: 33
