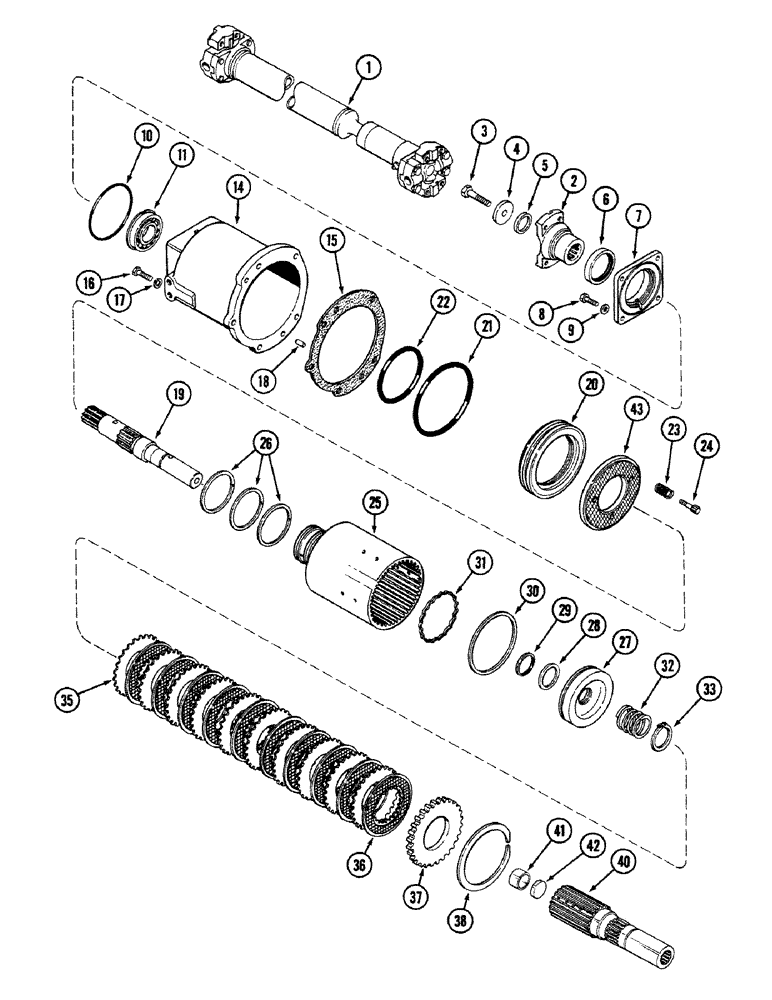

Запчасти Case IH 4694 (6-266) - PTO CLUTCH AND SHAFTS (06) - POWER TRAIN

1

REF

INSTRUCTION

SHAFT ASSEMBLY - PTO drive (See Figure 6-268)

1шт.

2

A76560

YOKE

- drive shaft

1шт.

3

113-2436

BOLT,Locking, 1/2" - 13 x 2-1/4", Gr 5

- hex lock, 1/2 NC x 2-1/4 inch

1шт.

4

A75206

WASHER,13.5mm ID x 50.8mm OD x 9.53mm Thk

- yoke

1шт.

5

A75205

SEALING WASHER

- yoke

1шт.

6

A76014

OIL SEAL

- oil, output shaft

1шт.

7

A152916

BEARING CAP

CAP - bearing

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

9

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- bearing cap

4шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- bearing cap

1шт.

11

G13606

BALL BEARING

BEARING - output shaft

1шт.

14

A144126

HOUSING

- PTO clutch

1шт.

15

A153699

GASKET

- clutch housing to drive housing

1шт.

16

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

5шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

18

A8134

PIN

DOWEL - clutch housing

2шт.

19

A182211

SHAFT

- output, PTO (Replaces A138523)

1шт.

20

A150236

PISTON

ASSEMBLY - PTO brake (Replaces A182360)

1шт.

21

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

- outer, piston, 6 ID x 1/8 inch width (152 ID x 3 MM width)

1шт.

22

49393

O-RING,4.734" ID x 5.012" OD x 0.139"

- inner, piston, 4-3/4 ID x 1/8 inch width (121 ID x 3 MM width)

1шт.

23

A155605

SPRING

- return, brake piston (replaces A63260)

3шт.

24

166-1005

12 PT SCREW,Lock, Flg, 3/8" - 16 x 2", Gr 8

SCREW - 12 point, lock, 3/8 NC x 2 inch

3шт.

25

A182406

CARRIER

- PTO clutch (Replaces A182212)

1шт.

26

A58384

RING

- seal, carrier

3шт.

27

A155962

PISTON

- PTO, clutch

1шт.

28

A63258

SEAL

- internal, brake piston

1шт.

29

A155964

O-RING,1.812" ID x 0.073" Thk

SEAL - internal clutch piston

1шт.

30

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

SEAL - external brake piston

1шт.

31

A155963

SEAL

- external, clutch piston

1шт.

32

A63260

SPRING

- piston return, 1-3/4 inch (44 MM) free length

1шт.

33

T37909

SNAP RING,#150, Ext

Ring, Snap, , return spring #150, Ext

1шт.

35

A67156

PLATE

- steel, PTO clutch

10шт.

36

A67130

PLATE

- friction, PTO clutch

10шт.

37

A50643

PLATE

- back, PTO clutch

1шт.

38

A50639

RING

- snap, back plate

1шт.

40

A156124

SHAFT

- input, PTO and hydraulic pump drive

1шт.

41

A138866

BUSHING

- input shaft

1шт.

42

41-1024

PLUG,Cup, 1 1/2"

- cup, 1-1/2 inch (38 MM) diameter

1шт.

43

A182409

BRAKE PLATE

PLATE - PTO brake

1шт.
