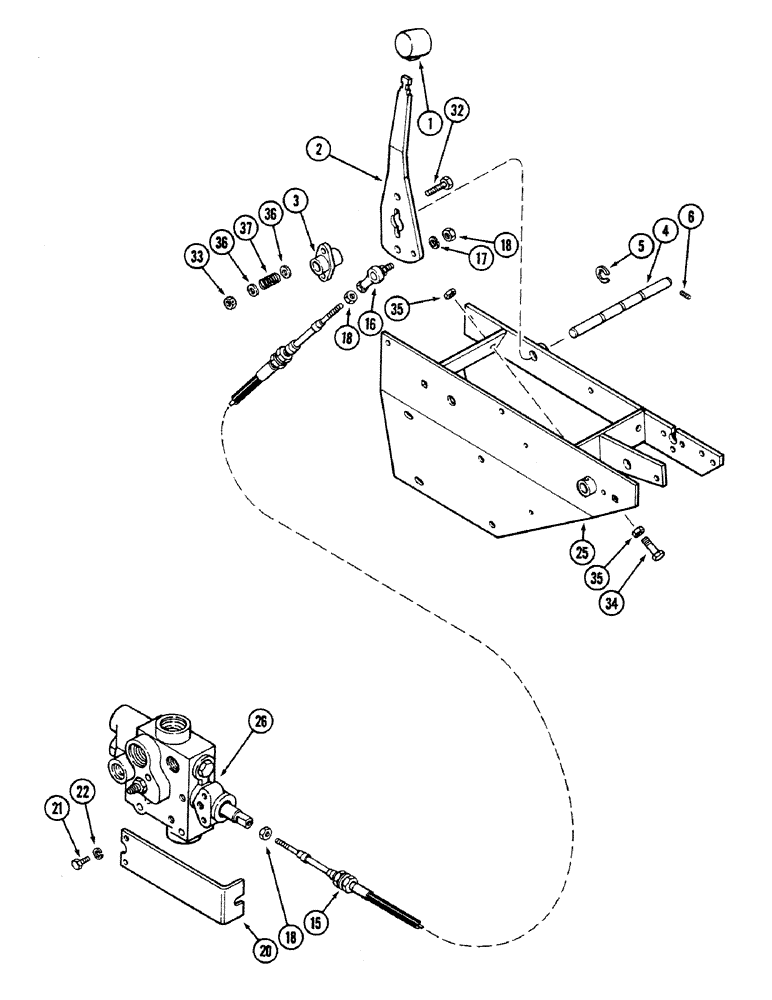

Запчасти Case IH 4694 (6-264) - PTO CONTROL LINKAGE (06) - POWER TRAIN

1

A177437

KNOB

- control lever (Yellow) (Replaces A167959)

1шт.

2

A169077

LEVER

- hand, PTO control

1шт.

3

A162299

BEARING,15.95mm ID

- hand lever

1шт.

4

A161039

SHAFT

- hand lever

1шт.

5

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, , shaft #62, .480" Dia, E-Type

2шт.

6

178-24

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - headless socket set, 1/4 NC x 1/4 inch

1шт.

15

A149528

CABLE

- control, Serial Range: lever-valve

1шт.

16

A75447

BALL JOINT

JOINT - ball

1шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

18

129-37

NUT,#10-32

3шт.

20

A161005

BRACKET

- anchor, control cable

1шт.

21

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

25

REF

INSTRUCTION

CONSOLE - control (See page 9-474)

1шт.

26

REF

INSTRUCTION

VALVE ASSEMBLY - regulator (See page 8-372)

1шт.

32

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

33

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

34

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

36

195-515

WASHER,#12

- flat, 1/4 x 1/2 x 1/16 inch

1шт.

37

A169282

VALVE SPRING

SPRING - detent and return

2шт.
