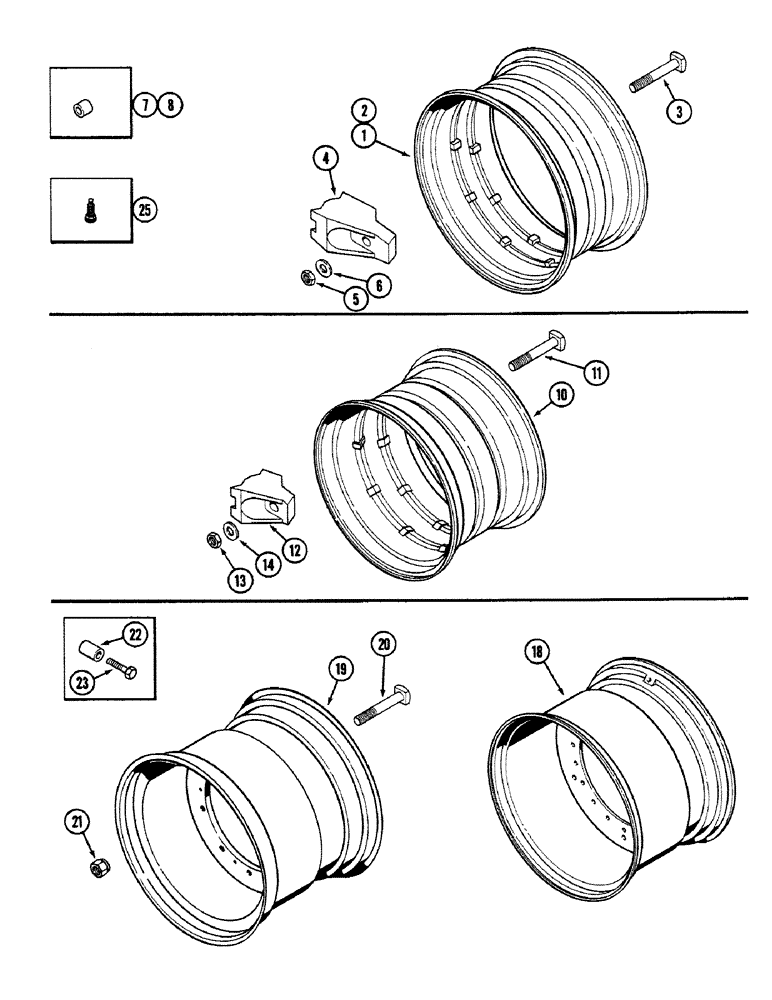

Запчасти Case IH 4694 (6-258) - WHEEL RIMS AND CLAMPS (06) - POWER TRAIN

1

A160132

RIM

- wheel, 18.4 x 38 inch tire (467 x 965 MM)

4шт.

1

A75887

WHEEL

RIM - wheel, 18.4 x 34 inch tire (467 x 864 MM)

4шт.

2

A75891

RIM

- wheel, 20.8 x 34 inch tire (528 x 864 MM)

4шт.

2

A147805

WHEEL

RIM - wheel, 23.1 x 34 inch tire (587 x 864 MM)

4шт.

2

A160133

RIM

- wheel, 20.8 x 38 inch tire (528 x 965 MM)

4шт.

3

A160853

SQUARE BOLT

- clamp

40шт.

4

A139724

CLAMP

- rim, double position

40шт.

5

129-198

NUT - hex, 3/4 inch NC

40шт.

6

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp bolt

40шт.

7

A161212

SPACER

- rear stop bolt (When using 23.1 x 34 tire) 57/64 inch (23 MM)

2шт.

8

A140011

BUSHING

SPACER - front stop bolt (When using 23.1 x 34 tire) 21/64 inch (8 MM)

2шт.

10

A75890

RIM

- wheel, 23.1 x 30 inch tire (587 x 767 MM)

4шт.

11

A160853

SQUARE BOLT

- clamp

40шт.

12

A75894

CLAMP

- rim, double position

40шт.

13

129-137

NUT,3/4"-10, G5

40шт.

14

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp bolt

40шт.

18

A180079

RIM

WHEEL - 24.5 x 32 inch tire (622 x 813 MM) (Replaces A167983), single wheels

4шт.

19

A187015

RIM

WHEEL - 30.5 x 32 inch tire (780 x 813 MM) (Replaces A148139), single wheels

4шт.

20

117-614

SQUARE BOLT,3/4" - 10 x 4", Gr 5

- square head, 3/4 NC x 3-3/4 inch, single wheels

40шт.

21

A160864

WHEEL NUT

- wheel, single

40шт.

22

A161885

SPACER

- stop (Used with 30.5 x 32 inch tire), single wheels

2шт.

23

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, 5/8 NC x 2-1/4 inch, grade 8, single wheels

2шт.

25

A20058

VALVE STEM

VALVE STEM - Air, tubeless tire, single wheels

1шт.
