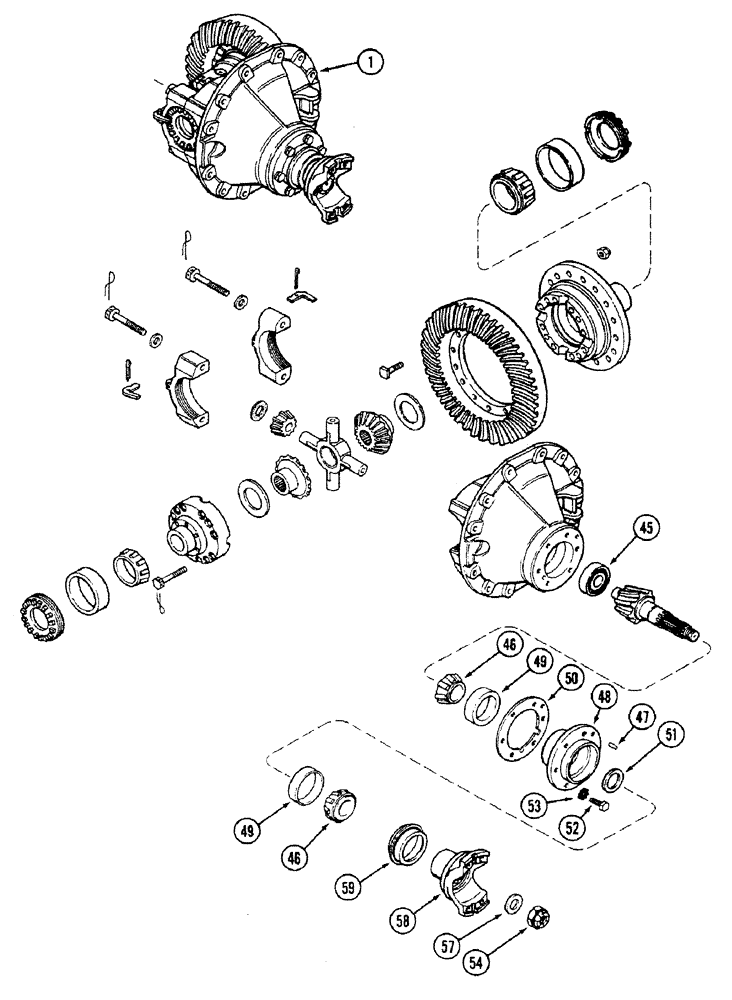

Запчасти Case IH 4694 (6-250) - REAR AXLE DIFFERENTIAL AND CARRIER, PRIOR TO AXLE SERIAL NO. 13015953 (CONTD) (06) - POWER TRAIN

1

A153462

DIFFERENTIAL

CARRIER - differential, rear axle, Includes: Ref. 45 - 59 in this figure and axle carrier assembly and Ref. 3 - 41 on Figure 6-248

1шт.

45

L33062

ROLLER BEARING

BEARING - roller, drive pinion

1шт.

46

A44210

ROLLER BEARING,1.75" ID x 1.25"

CONE - bearing, pinion shaft, 1-3/4 inch (44 MM) ID

2шт.

A44230

CAGE ASSY.,4.250" OD

CAGE ASSEMBLY - pinion bearing, Includes: Ref. 47 - 49

1шт.

47

A45631

PIN

- guide

1шт.

48

NSS

NOT SOLD SEPARAT

CAGE - bearing (Order A44230)

1шт.

49

F61284

BEARING CUP

CUP - bearing, pinion shaft, 3-3/4 inch (95 MM) OD

2шт.

50

A44232

SHIM,.003" Thk

Bearing cage (0.076 mm) .003" Thk

1шт.

50

A44233

SHIM,.005" Thk

Bearing cage (0.127 mm) .005" Thk

1шт.

50

A44234

SHIM,.010" Thk

Bearing cage (0.254 mm) .010" Thk

1шт.

50

A44235

SHIM,.020" Thk

Bearing cage (0.508 mm) .020" Thk

1шт.

50

A44236

SHIM,.030" Thk

Bearing cage (0.762 mm) .030" Thk

1шт.

51

A45587

BUSHING

SPACER - pinion bearing, 0.514 inch (13.056 MM)

1шт.

51

A45588

BUSHING

SPACER - pinion bearing, 0.522 inch (13.259 MM)

1шт.

51

A45589

BUSHING

SPACER - pinion bearing, 0.530 inch (13.462 MM)

1шт.

51

A45590

BUSHING

SPACER - pinion bearing, 0.538 inch (13.665 MM)

1шт.

51

A45591

BUSHING

SPACER - pinion bearing, 0.542 inch (13.767 MM)

1шт.

52

A44212

BOLT

- bearing cage

6шт.

53

193-33

LOCK WASHER,9/16"

WASHER - lock, external Shakeproof, 9/16 inch

6шт.

54

A45567

NUT

- yoke to pinion shaft

1шт.

57

A44209

WASHER

- yoke to pinion shaft

1шт.

58

A44700

YOKE

- drive shaft

1шт.

59

A179821

SEAL,64.52mm ID x 112.67mm OD x 27.79mm Thk

ASSEMBLY - oil, pinion shaft (Replaces A48857)

1шт.
