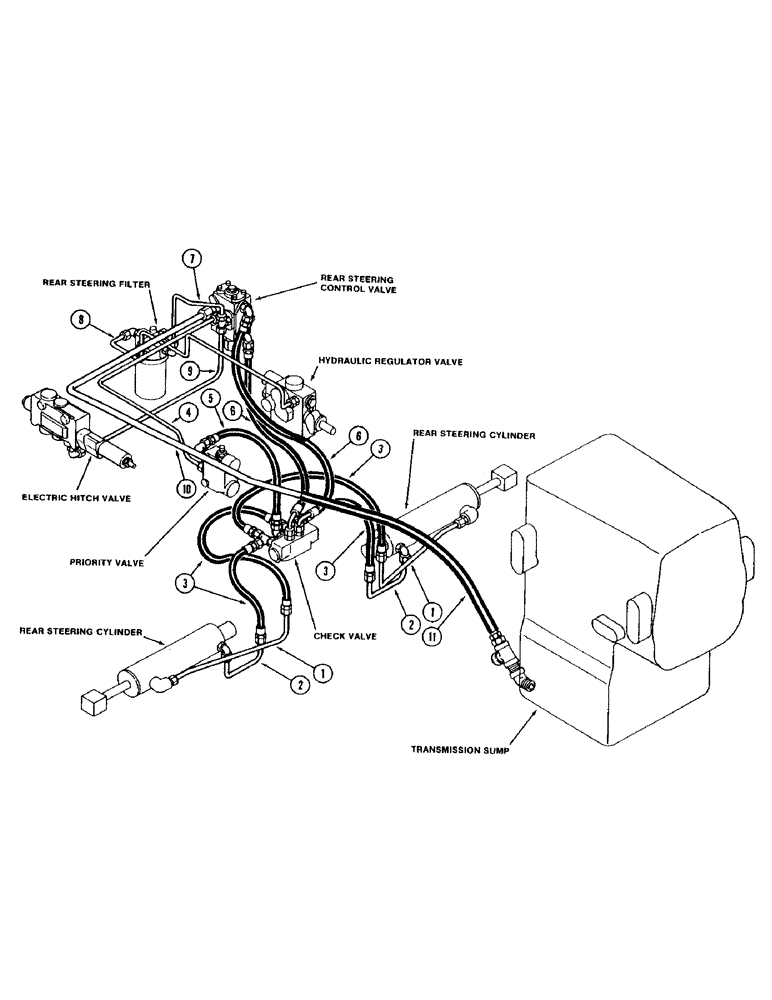

Запчасти Case IH 4694 (1-012) - PICTORIAL INDEX, REAR STEERING HYDRAULICS (00) - PICTORIAL INDEX

1

Steering Cylinder Tube to Check Valve Hose (Long), Page 5-125

1шт.

2

Steering Cylinder Tube to Check Valve Hose (Short), Page 5-125

1шт.

3

Steering Cylinder Hose to Check Valve, Page 5-125

1шт.

4

Steering Valve to Priority Valve Tube, Page 5-123

1шт.

5

Priority Valve to Check Valve Hose, Page 5-123

1шт.

6

Steering Valve to Check Valve Hose, Page 5-123, 125

1шт.

7

Steering Filter Outlet Tube, Page 5-127

1шт.

8

Steering Filter Inlet Tube, Page 5-127

1шт.

9

Steering Valve to Hitch Valve Tube, Page 5-127

1шт.

10

Steering Valve to Transmission Sump Tube, Page 8-293

1шт.

11

Steering Valve to Transmission Sump Hose, Page 8-293

1шт.
