Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION

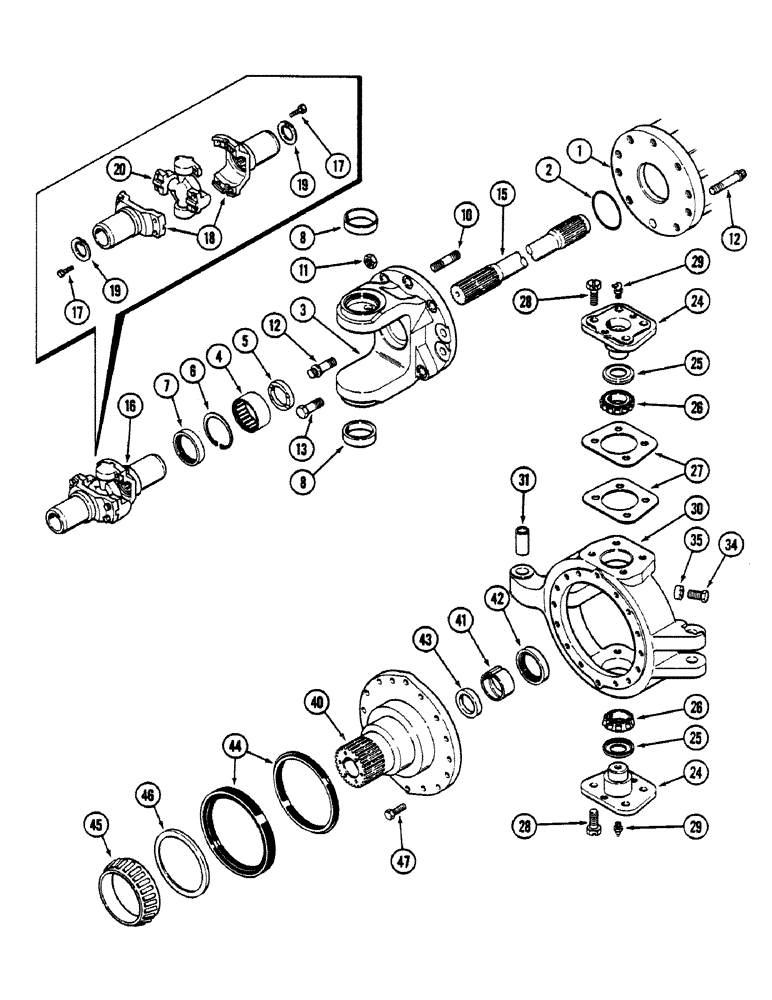

HOUSING - axle (See Figure 6-226)
1шт.
2
A21301
O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro
- housing
1шт.
3
A156467
TRUNNION
ASSEMBLY - axle, Includes: Ref. 4 - 8
1шт.
4
A144093
NEEDLE BEARING,Needle, 63.53mm ID x 82.55mm OD x 38.1mm W
BEARING - needle
1шт.
5
A168815
WASHER,52.07mm ID x 64.07mm OD x 11.71mm Thk
- thrust
1шт.
6
S97613
SNAP RING,3.25", Int, #325
Ring, Snap, 3.25", Int, #325
1шт.
7
A168810
OIL SEAL,61.4mm ID x 89.31mm OD x 16mm Thk
- oil
1шт.
8
A156466
BEARING, CUP
CUP - bearing
2шт.
10
A77281
STUD
- trunnion to axle housing, 3/4 NC x 2-7/8 inch
1шт.
11
25-1612
NUT,3/4"-10, G5, Hvy
- hex, 3/4 inch NC
1шт.
12
166-134
12 PT SCREW,Flg, 3/4" - 10 x 2", Gr 8
BOLT - 12 point head, 3/4 NC x 2 inch, grade 8
2шт.
12
166-139
12 PT SCREW,Flg, 3/4" - 10 x 3 1/4", Gr 8
BOLT - 12 point head, 3/4 NC x 3-1/4 inch, grade 8
2шт.
13
26-1232
BOLT,Hex, 3/4" - 10 x 2", Gr 8
4шт.
13
26-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8
- hex, 3/4 NC x 2-1/2 inch, grade 8
1шт.
15
A179306
SHAFT
- axle, 32-1/2 inch long
1шт.
16
A168812
JOINT
ASSEMBLY - universal, Includes: Ref. 17 - 20
1шт.
17
A12870
BOLT,Hex, 7/16" - 20 x 1 1/16"
- universal joint to slip yoke
8шт.
19
A44249
SNAP RING,1.812", Int, #181
Ring, Snap, 1.812", Int, #181
1шт.
20
D50866
SPIDER,49.28mm Cap Dia, 117.35mm L, Grease-able
U-JOINT - universal (Includes bearings)
1шт.
24
A156468
PIN
ASSEMBLY - king, upper and lower, Includes: Ref. 25 - 47
2шт.
25
A179808
SEALING RING
RING - sealing
1шт.
26
A31257
ROLLER BEARING,1.5" ID x 1.01"
CONE - bearing
1шт.
27
A182553
SHIM,.002" Thk
King pin .002" Thk
1шт.
27
A136186
SHIM,82.96mm ID x 126.75mm OD x 0.13mm Thk
King pin .005" Thk
1шт.
27
A136187
SHIM,82.96mm ID x 126.75mm OD x 0.38mm Thk
King pin .015" Thk
1шт.
28
26-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8
- hex, 5/8 NC x 1-3/4 inch, grade 8
8шт.
29
219-3
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight lube, 1/8 inch PT
2шт.
30
A152552
HOUSING
ASSEMBLY - spindle, Includes: Ref. 31
1шт.
31
A75239
BUSHING,22.28mm ID x 28.66mm OD x 56.34mm L
- tie rod pivot bolt
1шт.
35
A140011
BUSHING
SPACER - 21/32 x 1 x 5/16 inch
1шт.
40
A179717
HUB
SPINDLE ASSEMBLY - wheel, Includes: Ref. 41 - 46
1шт.
41
A179704
BUSHING,63.55mm ID x 68.43mm OD x 38.1mm L
- universal joint, 2-11/16 OD x 1-1/2 inch wide
1шт.
42
A168810
OIL SEAL,61.4mm ID x 89.31mm OD x 16mm Thk
- oil
1шт.
43
A168815
WASHER,52.07mm ID x 64.07mm OD x 11.71mm Thk
- thrust
1шт.
44
A76272
OIL SEAL,174.22mm ID x 219.53mm OD x 20.95mm Thk
ASSEMBLY - oil, spindle
1шт.
45
306854C91
BEARING
CONE - bearing, wheel
1шт.
46
A75256
RING
- backup, bearing core
1шт.
47
26-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8
14шт.
47
26-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8
2шт.
Выбрано товаров: 41
