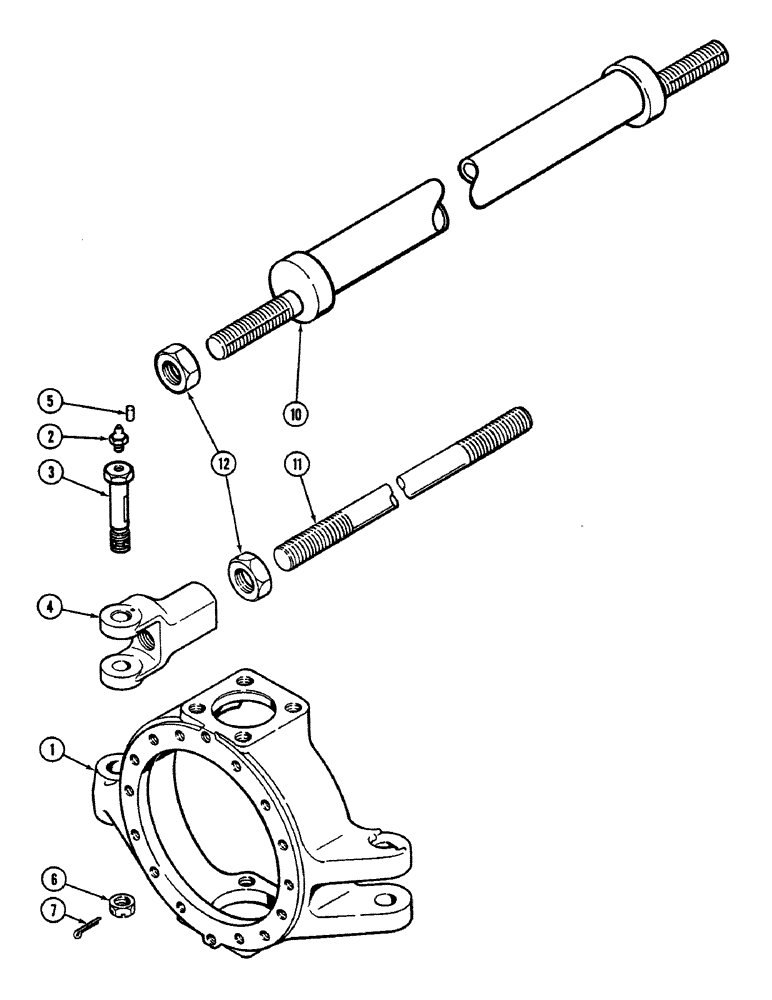

Запчасти Case IH 4694 (6-224) - FRONT AND REAR TIE RODS, AXLE SERIAL NO. 13015953 AND AFTER (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING ASSEMBLY - spindle (See Figures 6-188, 6-190, 6-230 and 6-236)

4шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube

4шт.

3

A13107

BOLT

- pivot, tie rod yoke

4шт.

4

A182604

YOKE

- tie rod

4шт.

5

138-324

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

2шт.

6

A13110

NUT

- tie rod pivot bolt

4шт.

7

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

10

A155046

ROD

- tie, front axle, 58-5/16 inch (1481 MM)

1шт.

11

A76586

ROD

- tie, rear axle, 66-1/4 inch (1683 MM)

1шт.

12

25-1520

NUT

- hex jam, 1-1/4 inch NF

2шт.
