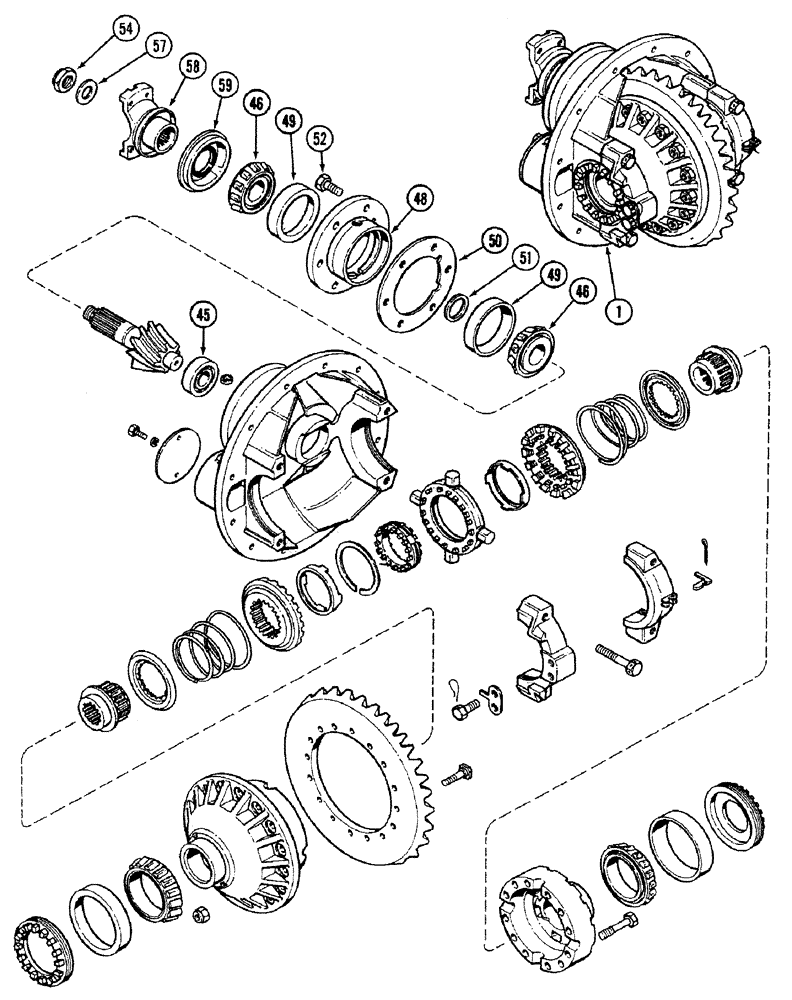

Запчасти Case IH 4694 (6-220) - FRONT AXLE DIFFERENTIAL AND CARRIER, NO SPIN DIFFERENTIAL, AXLE S/N 13015953 AND AFTER (CONTD) (06) - POWER TRAIN

1

A179208

CARRIER

ASSEMBLY - no spin differential, front axle, Includes: Ref. 45 - 59 in this figure and differential pinion housing assembly and Ref. 2 - 41 on Figure 6-218

1шт.

45

L33062

ROLLER BEARING

BEARING - roller, drive pinion

1шт.

46

A52295

ROLLER BEARING,44.45 mm ID x 26.909 mm

CONE - bearing, pinion shaft, 1-3/4 inch (44 MM) ID

2шт.

A52296

PINION

CAGE ASSEMBLY - pinion bearing, Includes: Ref. 48 and 49

1шт.

48

NSS

NOT SOLD SEPARAT

CAGE - bearing (Order A52296)

1шт.

49

A9840

BEARING CUP

CUP - bearing, pinion shaft

2шт.

50

S68370

SHIM,.003" Thk

Bearing cage (0.076 mm) .003" Thk

1шт.

50

S68371

SHIM,.005" Thk

Bearing cage (0.127 mm) .005" Thk

1шт.

50

S68362

SHIM,.0100" Thk

Bearing cage (0.254 mm) .0100" Thk

1шт.

50

S68373

SHIM,.020" Thk

Bearing cage (0.508 mm) .020" Thk

1шт.

50

S75901

SHIM,.030" Thk

Bearing cage (0.762 mm) .030" Thk

1шт.

51

A52317

SPACER

- pinion bearing, 0.623 (15.824 MM)

1шт.

51

A52318

SPACER

- pinion bearing, 0.624 inch (15.850 MM)

1шт.

51

A52319

SPACER

- pinion bearing, 0.625 inch (15.875 MM)

1шт.

51

A52320

SPACER

- pinion bearing, 0.626 inch (15.900 MM)

1шт.

51

A52321

SPACER

- pinion bearing, 0.627 inch (15.926 MM)

1шт.

51

A52322

SPACER

- pinion bearing, 0.628 inch (15.951 MM)

1шт.

51

A52323

SPACER

- pinion bearing, 0.629 inch (15.977 MM)

1шт.

51

A52324

SPACER

- pinion bearing, 0.630 inch (16.002 MM)

1шт.

51

NLS

NO LONGER SERVICED

SPACER - pinion bearing, 0.631 inch (16.027 MM)

1шт.

51

A52326

SPACER

- pinion bearing, 0.632 inch (16.053 MM)

1шт.

51

A52327

SPACER

- pinion bearing, 0.633 (16.078 MM)

1шт.

51

A52328

SPACER

- pinion bearing, 0.634 inch (16.104 MM)

1шт.

51

A52329

SPACER - pinion bearing, 0.6345 inch (16.116 MM)

1шт.

51

A52330

SPACER

- pinion bearing, 0.635 inch (16.129 MM)

1шт.

51

A52331

SPACER - pinion bearing, 0.6355 inch (16.142 MM)

1шт.

51

A52332

SPACER

- pinion bearing, 0.636 inch (16.154 MM)

1шт.

51

A52333

SPACER - pinion bearing, 0.6365 inch (16.167 MM)

1шт.

51

A52334

SPACER

- pinion bearing, 0.637 inch (16.180 MM)

1шт.

51

A52335

SPACER

- pinion bearing, 0.6375 (16.181 MM)

1шт.

51

A52336

SPACER

- pinion bearing, 0.638 inch (16.205 MM)

1шт.

51

A52337

SPACER - pinion bearing, 0.6385 inch (16.218 MM)

1шт.

51

A52338

SPACER

- pinion bearing, 0.639 inch (16.231 MM)

1шт.

51

A52339

SPACER - pinion bearing, 0.6395 inch (16.243 MM)

1шт.

51

A52340

SPACER

- pinion bearing, 0.640 inch (16.260 MM)

1шт.

51

A52341

SPACER - pinion bearing, 0.6405 inch (16.269 MM)

1шт.

51

A52342

SPACER

- pinion bearing, 0.641 inch (16.281 MM)

1шт.

51

A52353

SPACER

- pinion bearing, 0.6415 inch (16.294 MM)

1шт.

51

A52344

SPACER

- pinion bearing, 0.642 (16.307 MM)

1шт.

51

A52345

SPACER - pinion bearing, 0.6425 inch (16.308 MM)

1шт.

51

A52346

SPACER

- pinion bearing, 0.643 inch (16.332 MM)

1шт.

51

A52347

SPACER - pinion bearing, 0.6435 inch (16.345 MM)

1шт.

51

A52348

- pinion bearing, 0.644 inch (16.358 MM)

1шт.

51

A52349

SPACER

- pinion bearing, 0.645 inch (16.383 MM)

1шт.

51

A52350

SPACER

- pinion bearing, 0.646 (16.408 MM)

1шт.

51

A52351

SPACER

- pinion bearing, 0.647 inch (16.434 MM)

1шт.

51

A52352

SPACER

- pinion bearing, 0.648 inch (16.459 MM)

1шт.

51

A52353

SPACER

- pinion bearing, 0.649 inch (16.485 MM)

1шт.

51

A52354

SPACER

- pinion bearing, 0.650 inch (16.510 MM)

1шт.

51

A52355

SPACER

- pinion bearing, 0.651 (16.535 MM)

1шт.

51

A52356

SPACER

- pinion bearing, 0.652 inch (16.561 MM)

1шт.

51

A52357

SPACER

- pinion bearing, 0.653 inch (16.586 MM)

1шт.

51

A52358

SPACER

- pinion bearing, 0.654 inch (16.612 MM)

1шт.

52

13-924

BOLT,Hex, 9/16" - 12 x 1-1/2", Gr 5

- hex, 9/16 NC x 1-1/2 inch

6шт.

54

A45567

NUT

- yoke to pinion shaft

1шт.

57

A44209

WASHER

- yoke to pinion shaft

1шт.

58

A44700

YOKE

- drive shaft

1шт.

59

A52299

OIL SEAL

SEAL ASSEMBLY - oil, pinion shaft

1шт.
