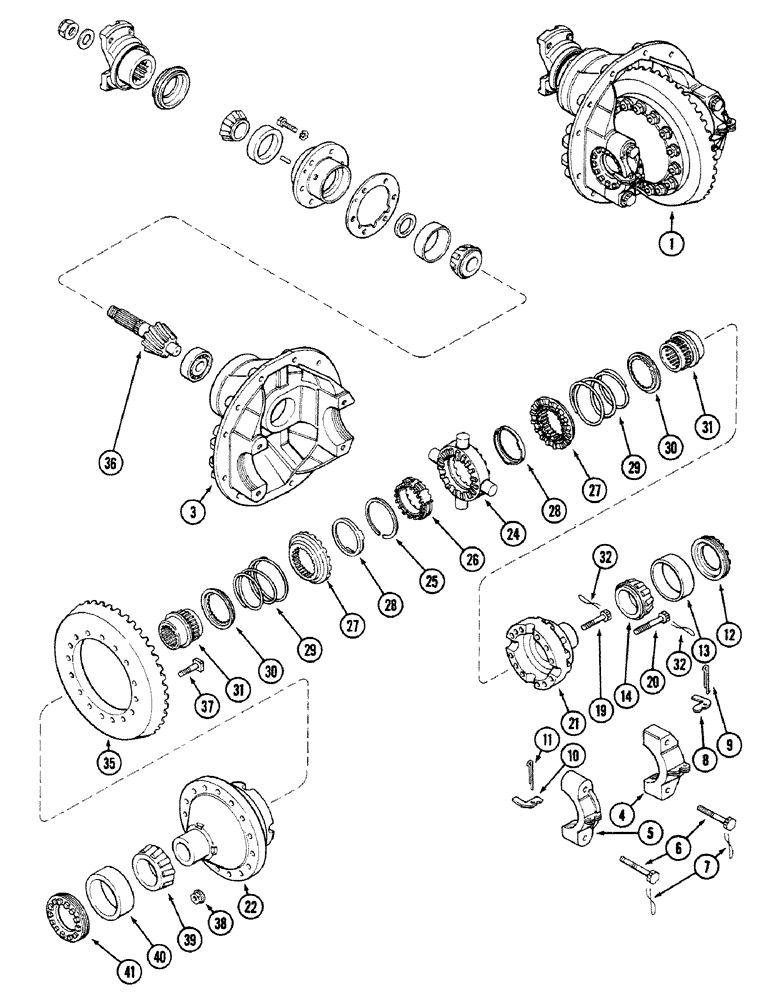

Запчасти Case IH 4694 (6-214) - FRONT AXLE DIFFERENTIAL AND CARRIER, NO SPIN DIFFERENTIAL, PRIOR TO AXLE SERIAL NO. 13015953 (06) - POWER TRAIN

1

A157448

CARRIER

ASSEMBLY - no spin differential, front axle, Includes: differential carrier assembly and Ref. 3 - 41 in this figure and Ref. 45 - 59 on Figure 6-216

1шт.

A44224

CARRIER

ASSEMBLY - differential, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

CARRIER - differential (Order A44224)

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - bearing

1шт.

5

NSS

NOT SOLD SEPARAT

CAP - bearing

1шт.

6

A44227

BOLT

-, Serial Range: cap-carrier

4шт.

7

391-621

ELECTRICAL WIRE

WIRE - lock, no. 16 gauge x 13 inch (2 x 330 MM) (Order 391-622)

4шт.

8

A44216

LOCK

- adjusting nut, left

1шт.

9

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

10

A44217

LOCK

- adjusting nut, right

1шт.

11

132-348

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

12

A44214

NUT

- adjusting, left bearing

1шт.

13

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - left bearing, 4-7/16 inch (113 MM) OD

1шт.

14

A18173

ROLLER BEARING

CONE - left bearing

1шт.

A44684

DIFFERENTIAL

ASSEMBLY - no spin, Includes: Ref. 19 - 31

1шт.

19

A44239

BOLT,Hex, 1/2" - 13 x 2 1/8", Gr 7, Gr 8 Optional, Drilled

- hex drilled, 1/2 NC x 1-1/8 inch

4шт.

20

A44241

BOLT,1/2" x 2 7/8", Gr 7

- hex drilled, 1/2 NC x 2-7/8 inch

8шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - plain half

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - flange half

1шт.

A44693

U-JOINT SPIDER

SPIDER ASSEMBLY - no spin, Includes: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

SPIDER - no spin

1шт.

25

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

26

NSS

NOT SOLD SEPARAT

CAM ASSEMBLY - center

1шт.

L35998

CLUTCH ASSEMBLY

- differential, Includes: Ref. 27 and 28

2шт.

27

NSS

NOT SOLD SEPARAT

CLUTCH

1шт.

28

NSS

NOT SOLD SEPARAT

RING - holdout

1шт.

29

L36000

VALVE SPRING

SPRING - clutch

2шт.

30

A44688

DIFFERENTIAL

RETAINER - clutch spring

2шт.

31

A44692

GEAR

- side

2шт.

32

391-709

ELECTRICAL WIRE

WIRE - lock, 18 gauge x 84 inch (1 x 2 134 MM) roll

1шт.

A45112

GEAR

SET - matched pinion and drive gear, Includes: Ref. 35 and 36

1шт.

35

NSS

NOT SOLD SEPARAT

GEAR - drive, 39 teeth (Order A45112)

1шт.

36

NSS

NOT SOLD SEPARAT

PINION - drive, 8 teeth (Order A45112)

1шт.

37

A44263

STEP BOLT

BOLT - drive, Serial Range: gear-housing

16шт.

38

A44264

NUT

- gear bolt

16шт.

39

A31243

ROLLER BEARING

CONE - right bearing, 2-7/8 inch (73 MM) ID

1шт.

40

A31242

CUP

- right bearing, 5 inch (127 MM) OD

1шт.

41

A44215

NUT

- adjusting, right bearing

1шт.
