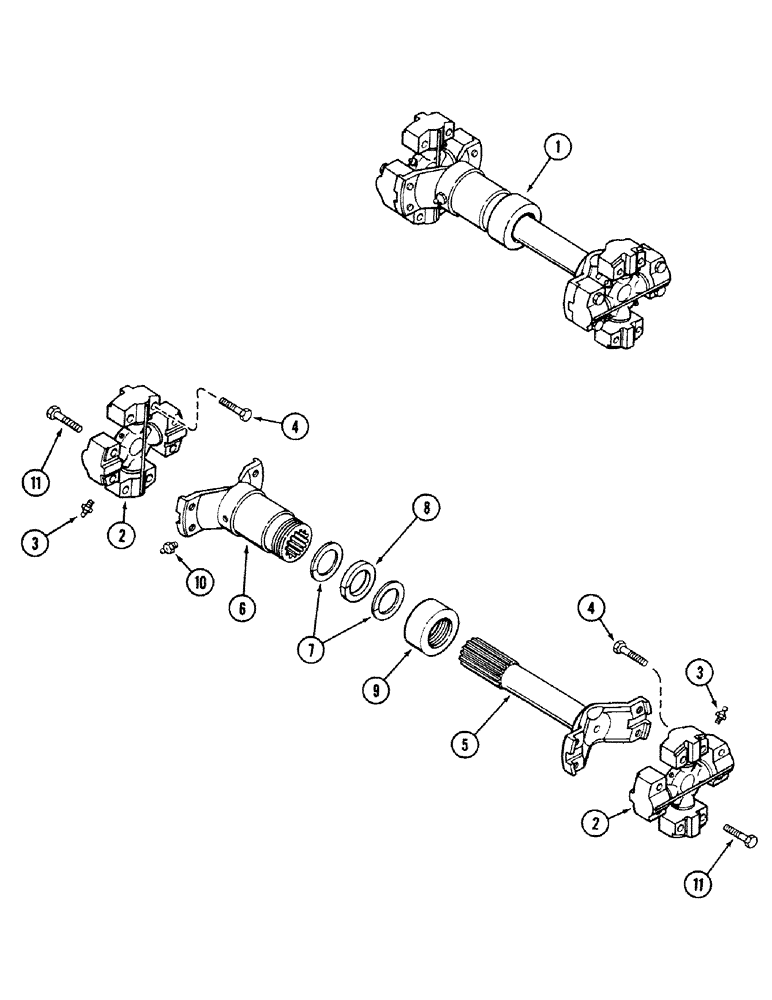

Запчасти Case IH 4694 (6-204) - FRONT AXLE DRIVE SHAFT, AXLE SERIAL NO. 13015953 AND AFTER (06) - POWER TRAIN

1

A182433

SHAFT

ASSEMBLY - drive, front axle (Order components), Includes: Ref. 2 - 11

1шт.

2

A182457

JOINT

BEARING ASSEMBLY - drive shaft, Includes: Ref. 3 and 4

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight lube, 1/8 inch

4шт.

4

A56245

BOLT,Hex, 1/2" x 2 3/8"

SCREW - cap

8шт.

5

A47525

TUBE

- drive shaft yoke

1шт.

A47526

YOKE

ASSEMBLY - slip, Includes: Ref. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

YOKE - slip (Order A47526)

1шт.

7

A47531

WASHER

- retainer, felt seal

2шт.

8

S74239

SEAL

- felt

1шт.

9

A12867

CAP

- seal

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight lube, 1/8 inch PT

1шт.

11

A56245

BOLT,Hex, 1/2" x 2 3/8"

SCREW - hex cap

8шт.
