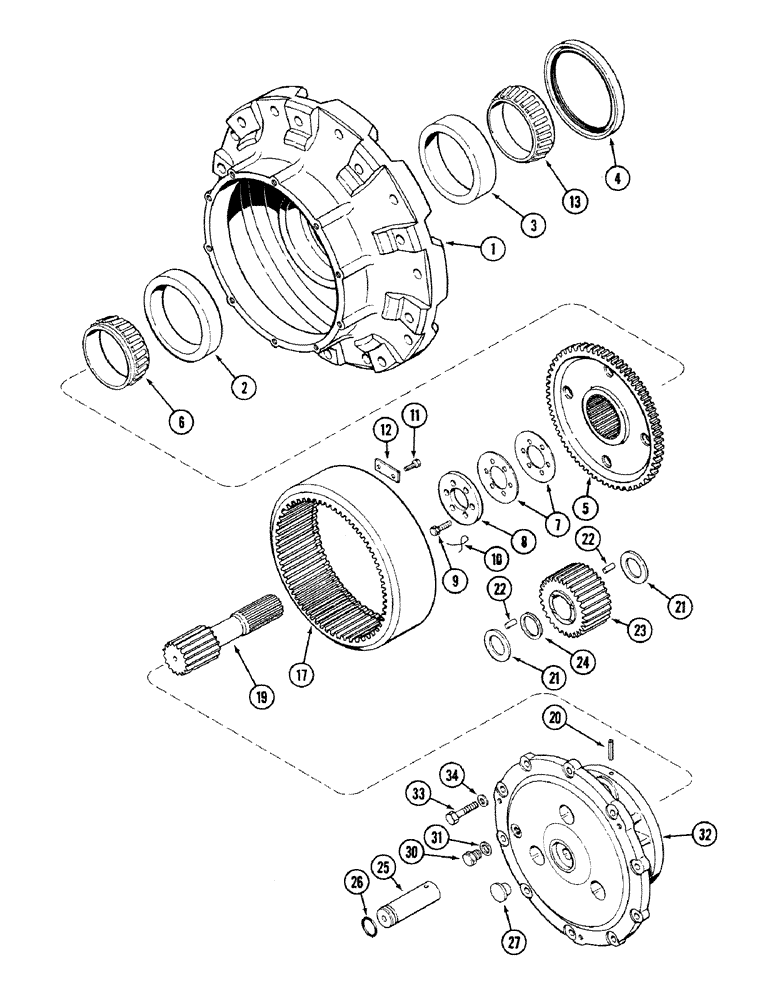

Запчасти Case IH 4694 (6-200) - FRONT AXLE ASSEMBLY, WHEEL HUB AND AXLE PLANETARY, AXLE SERIAL NO. 13015953 AND AFTER (06) - POWER TRAIN

1

A179187

HUB

ASSEMBLY - wheel drive, Includes: Ref. 2 - 4

2шт.

2

A75262

CUP

- outer bearing, 7-3/4 OD x 1-13/16 inch wide (197 x 46 MM)

1шт.

3

L31698

BEARING CUP

CUP - inner bearing, 7-3/16 OD x1-15/16 inch wide (183 x 49 MM)

1шт.

4

A76272

OIL SEAL,174.22mm ID x 219.53mm OD x 20.95mm Thk

- oil

1шт.

5

A168493

PINION

HOLDER - planetary ring gear

2шт.

6

A75263

CONE

- outer bearing, 5 ID x 1-13/16 inch (127 x 46 MM)

1шт.

7

A75264

SHIM,.003" Thk

Wheel hub brg. (0.076 mm) .003" Thk

1шт.

7

A75265

SHIM,.007" Thk

Wheel hub brg. (0.178 mm) .007" Thk

1шт.

7

A75266

SHIM,.020" Thk

Wheel hub brg. (0.508 mm) .020" Thk

1шт.

8

A75267

CAP

- retainer, bearing

2шт.

9

A75268

BOLT

- hex drilled, 3/8 NC x 1-1/4 inch

2шт.

10

391-629

ELECTRICAL WIRE

WIRE - safety

1шт.

11

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex, 3/8 NC x 1 inch (Grade 8)

24шт.

12

A77291

PAWL

RETAINER - ring gear (Order A153458)

12шт.

13

306854C91

BEARING

CONE - inner bearing, 5 ID x 1-1/2 inch wide (127 x 38 MM)

2шт.

17

A168158

PINION

GEAR - ring, planetary

2шт.

19

A168157

SHAFT

- planet sun gear

2шт.

20

138-2066

PIN,3/8" x 1 1/2", Coiled

- spiral, 1/4 x 1/2 inch

6шт.

21

A67116

WASHER

- planet pin

12шт.

22

A47252

ROLLER BEARING

BEARING KIT - needle roller (Set of 38)

1шт.

23

A168175

GEAR

- planet

6шт.

24

A67117

SPACER

- bearing

6шт.

25

A168244

PIN,41.94mm OD x 138.2mm L

- planet gear

6шт.

26

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- pin

6шт.

27

A182244

HOLE PLUG BUTTON

BOLT - sun gear stop

2шт.

30

A140222

PLUG

- fill or drain

2шт.

31

A51759

GASKET

- plug

2шт.

32

A168245

CARRIER

- planetary

2шт.

33

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

- hex, 1/2 NC x 1-7/8 inch (Grade 8)

20шт.

34

L30674

WASHER

- carrier bolt

20шт.
