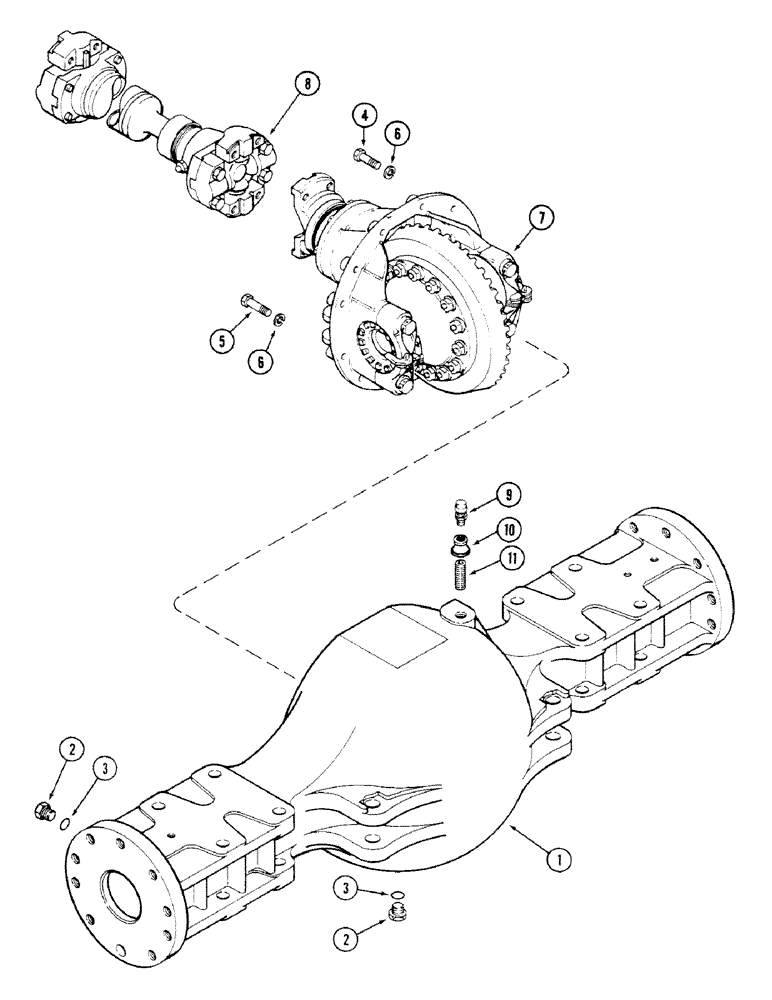

Запчасти Case IH 4694 (6-184) - FRONT AXLE ASSEMBLY, NO SPIN DIFFERENTIAL (06) - POWER TRAIN

1

A159510

HOUSING

- axle

1шт.

Axle serial no. 13015953 and after.

1шт.

1

A150700

HOUSING

- axle

1шт.

Prior to axle serial no. 13015953.

1шт.

2

A140222

PLUG

- drain, axle housing

2шт.

3

A51759

GASKET

- drain plug

2шт.

4

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

5

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch (Grade 8)

4шт.

6

92-8

LOCK WASHER,1/2"

12шт.

7

REF

INSTRUCTION

DIFFERENTIAL ASSEMBLY - no spin (See page 6-210)

1шт.

8

REF

INSTRUCTION

SHAFT ASSEMBLY - drive, front axle (See Figure 6-202)

1шт.

9

A12928

BREATHER

- differential (If equipped)

1шт.

10

221-1345

COUPLING, BREAK AWAY

COUPLING - reducer, 1/8 x 1/8 inch PT (If equipped)

1шт.

11

221-1158

FITTING

NIPPLE - 3/8 PT x 1 inch (If equipped)

1шт.

A179227

AXLE ASSEMBLY - front, no-spin (Complete)

1шт.

Prior to axle serial no. 13015953.

1шт.

A179448

AXLE ASSEMBLY - front, no-spin (Complete)

1шт.

Axle serial no. 13015953 and after.

1шт.
