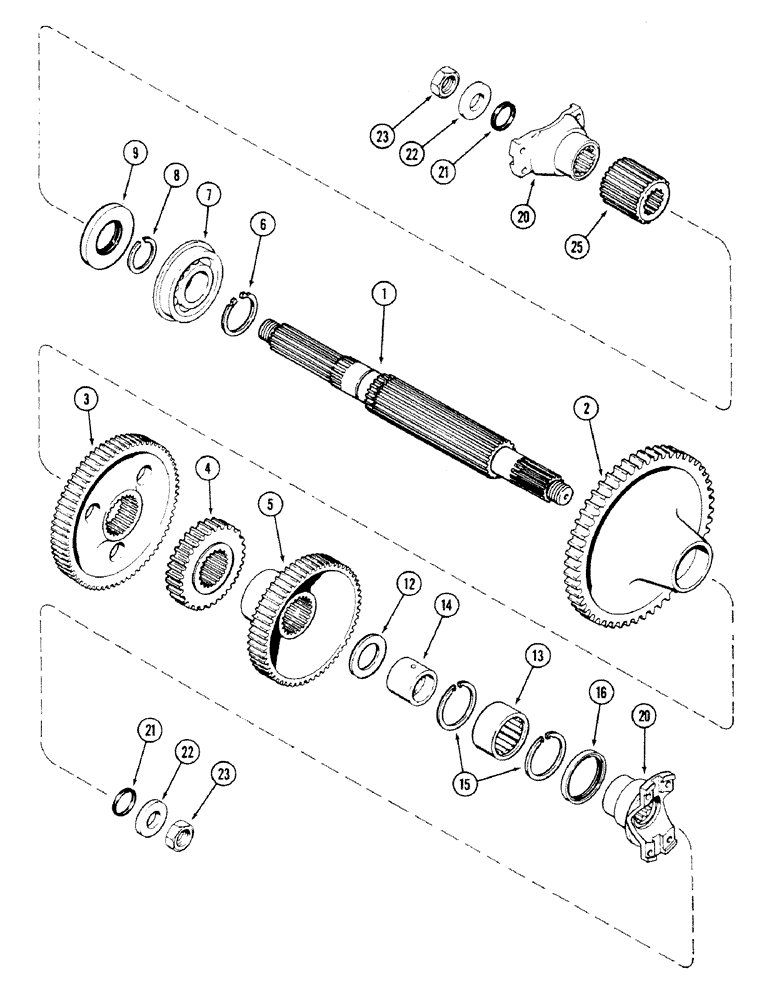

Запчасти Case IH 4694 (6-180) - TRANSMISSION OUTPUT SHAFT (06) - POWER TRAIN

1

A151849

SHAFT

- output

1шт.

2

A76510

GEAR

- first driven 76 teeth

1шт.

3

A76509

GEAR

- second driven 65 teeth

1шт.

4

A155293

GEAR

- fourth driven 39 teeth

1шт.

5

A76507

GEAR

- third driven 55 teeth

1шт.

6

A152350

RING

- snap, first gear

1шт.

7

A76512

BALL BEARING,2.1654" ID x 5.09" OD x 1.1417"

BEARING - rear

1шт.

8

39326

SNAP RING,#215, Ext

Ring, Snap, , rear bearing #215, Ext

1шт.

9

A152352

OIL SEAL

- oil, brake housing

1шт.

12

A42844

WASHER,50.85mm ID x 69.6mm OD x 3.2mm Thk

- thrust, front bearing

1шт.

13

A144093

NEEDLE BEARING,Needle, 63.53mm ID x 82.55mm OD x 38.1mm W

BEARING - front

1шт.

14

A152340

RACE

- bearing, front

1шт.

15

A152245

RING

- snap, front bearing

2шт.

16

A38231

OIL SEAL,66.67mm ID x 85.22mm OD x 9.53mm Thk

- oil, front

1шт.

20

A76502

YOKE

- drive shaft, front and rear

2шт.

21

A76503

SEALING WASHER,44.45mm ID x 50.8mm OD x 7.11mm Thk

GASKET - yoke

2шт.

22

A76504

WASHER

- retainer

2шт.

23

131-587

LOCK NUT,1 3/8"-12

NUT - hex lock, 1-3/8 inch NF

2шт.

25

A152349

HUB

- brake adapter

1шт.
