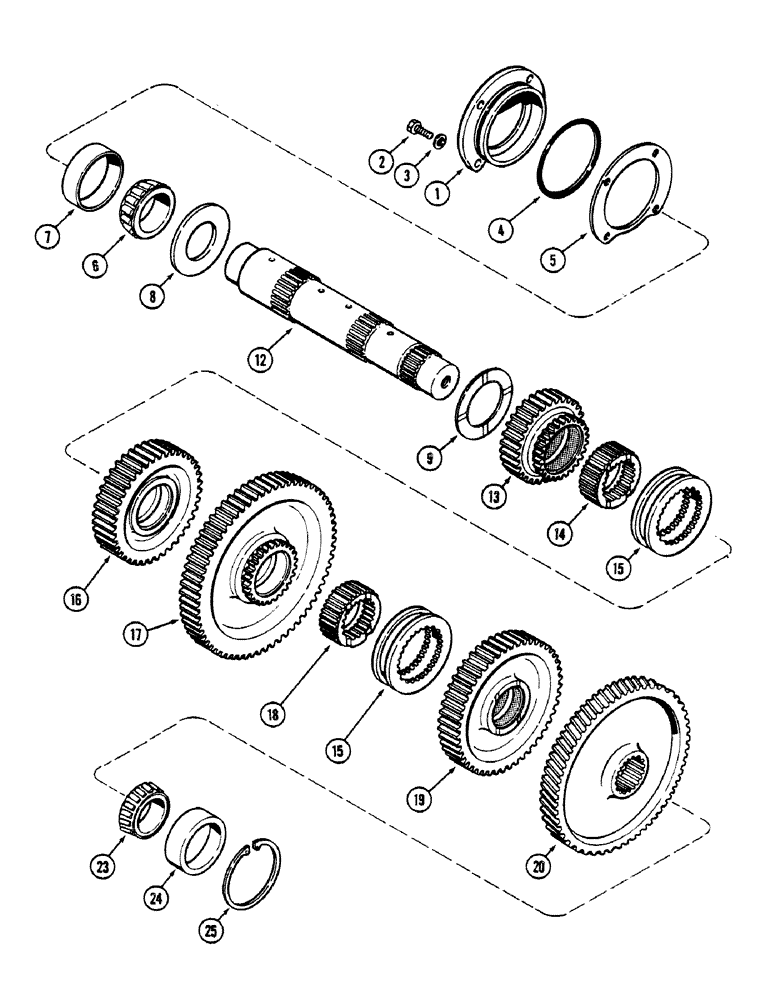

Запчасти Case IH 4694 (6-178) - TRANSMISSION INTERMEDIATE SHAFT (06) - POWER TRAIN

1

A152956

CAP

- rear bearing

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

3

T40163

WASHER

- hardened, 5/8 inch (16 MM)

4шт.

4

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- cap seal

1шт.

5

A150777

SHIM

- end cap, 0.003 inch (0.762 MM)

1шт.

5

A150778

SHIM

- end cap, 0.005 inch (0.127 MM)

1шт.

5

A150779

SHIM

- end cap, 0.007 inch (0.177 MM)

1шт.

6

G100323

BEARING

CONE - rear bearing

1шт.

7

L35931

BEARING CUP

CUP - rear bearing, 4-21/64 inch (110 MM) OD

1шт.

8

A152957

THRUST WASHER

SPACER - rear bearing

1шт.

9

A155526

THRUST WASHER

WASHER - thrust, 0.033 inch (0.838 MM)

1шт.

9

A179406

WASHER, THRUST

WASHER - thrust, 0.042 inch (1.09 MM)

1шт.

9

A179407

WASHER, THRUST

WASHER - thrust, 0.052 inch (1.33 MM)

1шт.

12

A152344

SHAFT

- intermediate

1шт.

13

A179920

GEAR WHEEL

GEAR ASSEMBLY - first drive (Includes bushing) (With identification groove) (Replaces A168011)

1шт.

14

A77229

HUB

- shift collar, first and second driver gear

1шт.

15

A157410

COLLAR

- shift, driver gears

2шт.

16

A179924

GEAR WHEEL

GEAR ASSEMBLY - second driver (Includes bushing) (Replaces A157432)

1шт.

17

A179930

GEAR WHEEL

GEAR ASSEMBLY - fourth driver (Includes bushing) (Replaces A157434)

1шт.

18

A77230

HUB

- shift collar, third and fourth driver gear

1шт.

19

A179926

GEAR

ASSEMBLY - third driver (Includes bushing) (Replaces A157436)

1шт.

20

A152346

GEAR

- drop, shaft drive

1шт.

23

A77367

ROLLER BEARING,2.1654" ID x 1.1417"

CONE - front bearing

1шт.

24

A77368

CUP

- front bearing

1шт.

25

R30570

SNAP RING,3.75", Int, #375

Ring, Snap, , front brg 3.75", Int, #375

1шт.
