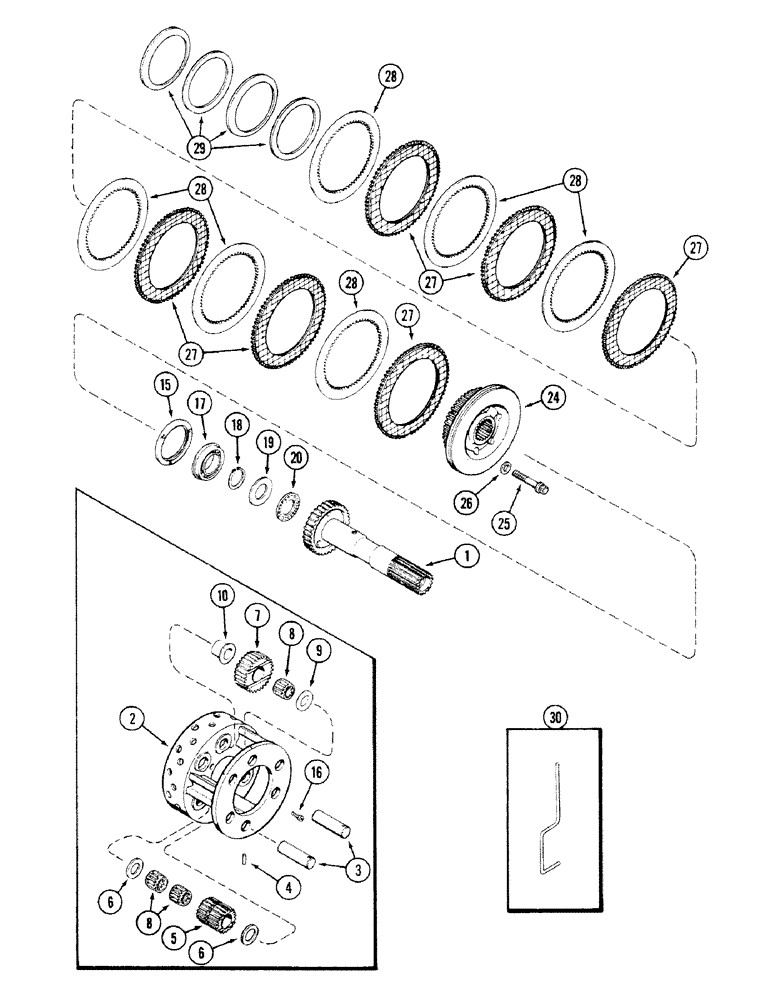

Запчасти Case IH 4694 (6-166) - TRANSMISSION CLUTCH ASSEMBLY, (C2) CLUTCH AND PLANETARY, PRIOR TO TRANSMISSION SERIAL NO. 16258468 (06) - POWER TRAIN

1

A148695

SHAFT

- drive gear, input

1шт.

2

A179219

CARRIER

- planetary (Replaces A152473)

1шт.

3

A76492

PIN,25.4mm OD x 92.33mm L

- planetary gear

6шт.

4

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

6шт.

5

A157787

GEAR

- planet, long

3шт.

6

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust, needle bearing, long planet gear

6шт.

7

A63105

GEAR

- planet, short

3шт.

8

A62543

NEEDLE BEARING,25.39mm ID x 33.36mm OD x 31.56mm W

BEARING - roller, planet gears

9шт.

9

A150410

SPACER

RACE - thrust, needle bearing, short planet gear

3шт.

10

A140876

SPACER,25.65mm ID x 31.88mm OD x 31.75mm L

- rear, short planet gear

3шт.

15

A146603

RETAINER

- planetary carrier

1шт.

16

62-410

HEX SOC SCREW,1/4"-28 x 5/8"

SCREW - socket head cap, 1/4 NF x 5/8 inch

3шт.

17

A63109

BEARING, BALL

BEARING - carrier (Includes snap ring)

1шт.

18

D25280

SNAP RING,#175, Ext

Ring, Snap, , output shaft #175, Ext

1шт.

19

A54021

WASHER

RACE - thrust, drive gear

1шт.

20

A154648

THRUST BEARING,44.5mm ID x 66.04mm OD x 2.69mm W

BEARING ASSEMBLY - thrust, drive gear

1шт.

24

A153083

HUB

- (C2) clutch

1шт.

25

166-96

12 PT SCREW,Flg, 1/2" - 13 x 4", Gr 8

SCREW - 12 point head, 1/2 NC x 4 inch

6шт.

26

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- hardened

6шт.

27

A61981

PLATE

- sintered, (C2) clutch

6шт.

28

A155461

PLATE

- steel, (C2) clutch

6шт.

29

A58094

SPRING

- return

4шт.

30

A45212

HOLDER

- clutch plate (Service tool)

3шт.

A153170

CLUTCH

ASSEMBLY - power shift and planetary (Complete unit), Includes: parts on this figure and parts on Figures 6-160, 6-162, 6-170 and 6-174

1шт.
