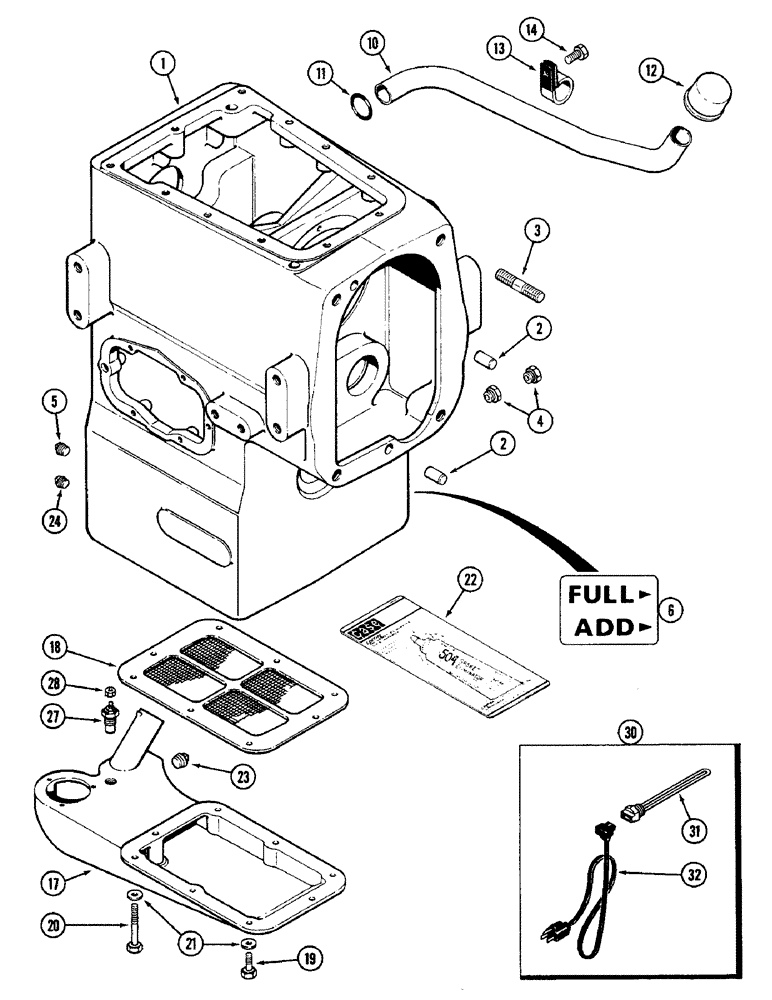

Запчасти Case IH 4690 (6-154) - TRANSMISSION HOUSING (06) - POWER TRAIN

1

A157392

TRANSMISSION

CASE - transmission (Replaces A152985)

1шт.

2

A28269

PIN

- dowel, 3/4" x 1-1/4" (19.05 x 31.73 MM)

2шт.

3

A151866

STUD

- clutch housing, 7/8" NF x 4"

4шт.

4

A156111

GAUGE

- sight, oil level (Replaces A77278)

2шт.

5

221-844

PLUG,Hex Soc, 1/2"-14

- heater hole, 1/2" PT square head

1шт.

6

321-2470

DECAL

- oil level

1шт.

10

A151173

TUBE

- filler, transmission oil

1шт.

11

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- tube

1шт.

12

A27973

CAP

- breather

1шт.

13

49773

CLAMP

- tube

1шт.

14

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

17

A153931

COVER

- bottom, transmission case

1шт.

18

A140228

FILTER SCREEN

SCREEN - bottom

1шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

7шт.

20

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

21

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened, 25/64" x 3/4" x 1/2" (9.92 x 19.05 x 0.79 MM)

8шт.

22

B17428

LOCTITE

- gasket eliminator, 2 oz. (50 CC) tube (Used case to clutch housing and bottom, Serial Range: cover-case)

1шт.

23

221-844

PLUG,Hex Soc, 1/2"-14

- drain, 1/2" PT sqaure head

1шт.

24

221-846

PLUG,Hex Soc, 1"-11 1/2

- 1" PT hex socket (Used with no PTO)

1шт.

27

A135001

SWITCH

- sender, transmission oil temperature

1шт.

28

193-1000

NUT,Keps, w/LW,#10-32

- wire, #10-32 hex Keps

1шт.

30

A164503

HEATER ASSY.

HEATER KIT - transmission oil, Canadian limited tractors, Includes: Ref. 31 and 32

1шт.

31

NSS

NOT SOLD SEPARAT

ELEMENT - heat

1шт.

32

A48171

HARNESS

CORD - heater element, 60" (1524 MM)

1шт.
