Запчасти Case IH 4690 (6-152) - CLUTCH HOUSING (06) - POWER TRAIN

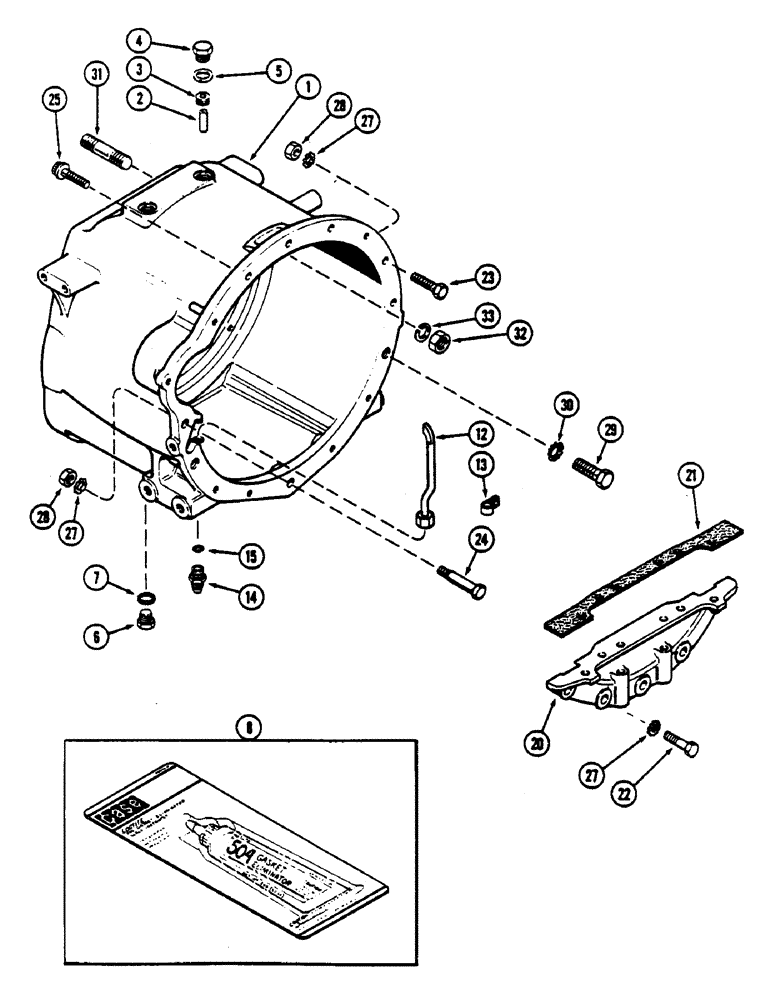

Схема запчастей Case IH 4690 - (6-152) - CLUTCH HOUSING (06) - POWER TRAIN
2
21
31
27
5
14
30
12
28
28
6
25
27
15
4
1
33
20
26
24
23
13
8
22
21
32
3
7

Артикул

Название

Примечание

Количество

1

A140730

HOUSING

Clutch

1шт.

2

A58049

TUBE

Oil fill, (C1) and (C4) clutch

2шт.

3

A58050

PLUG

Fill tube

2шт.

4

214389

PLUG,3/4" - 16 ORB

Assy, Tube opening, Includes Ref. 5

2шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(M16.36 ID x 2.21 Thk)

1шт.

6

214389

PLUG,3/4" - 16 ORB

Assy, Drain, 1/2" tube, Includes Ref. 7

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(M16.36 ID x 2.21 Thk)

1шт.

8

B17428

LOCTITE

Gasket eliminator, 2 oz. (50 CC) tube

1шт.

12

A146773

TUBE

Lubricating, (C1) clutch

1шт.

13

49838

CLAMP

Tube

1шт.

14

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

Tube, 3/4"-16 x 2-7/16"

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(M16.36 ID x 2.21 Thk)

1шт.

20

A144906

PLATE

Cover, flywheel

1шт.

21

REF

INSTRUCTION

GASKET - cover plate and oil pan (Order A152479 Figure 2-48)

1шт.

22

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

5шт.

23

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

23

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

23

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

24

A149764

STEP BOLT

Dowel (1/2" x 3-9/64" NC)

1шт.

24

A149765

STEP BOLT

Dowel (1/2" x 2-21/32" NC)

2шт.

25

166-89

12 PT SCREW,1/2" - 13 x 2", Gr 8

2шт.

25

166-88

12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8

3шт.

27

A34650

LOCK WASHER

Lock (1/2" external type)

14шт.

28

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Grade 8)

3шт.

29

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

2шт.

30

193-15

LOCK WASHER,Ext Tooth, 3/4"

2шт.

31

A151866

STUD

Transmission case (7/8" NF x 4")

4шт.

32

129-129

NUT,7/8"-14, G5

4шт.

33

193-75

LOCK WASHER,7/8"

Internal Shakeproof

4шт.

Выбрано товаров: 29
