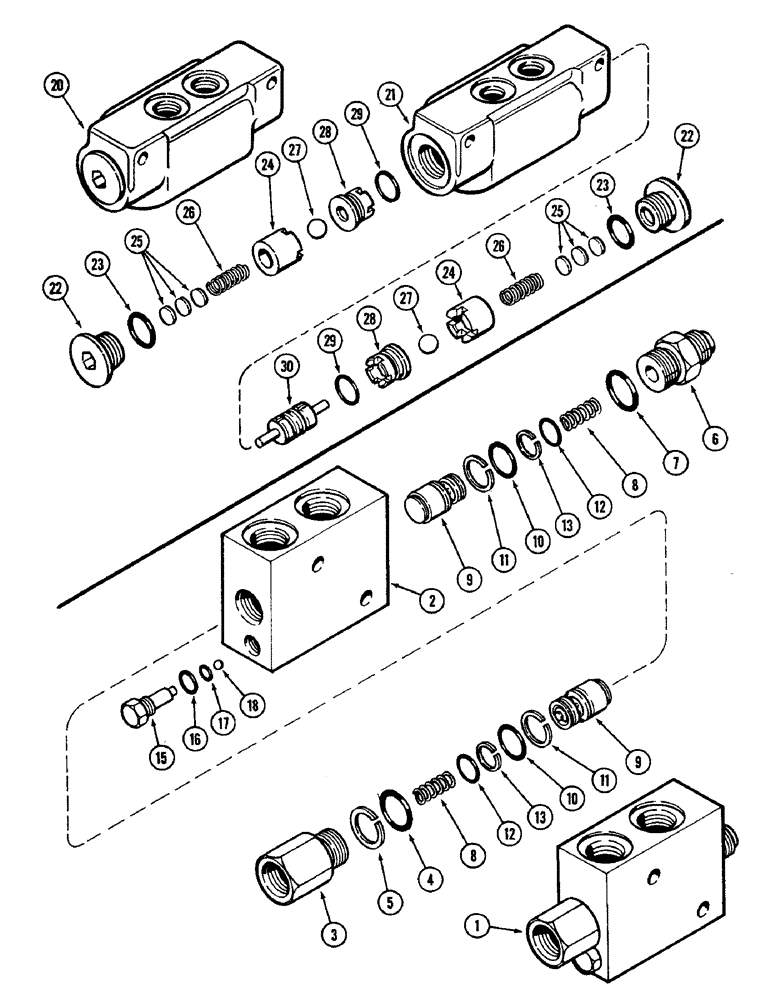

Запчасти Case IH 4690 (5-150) - REAR STEER CHECK VALVE (05) - STEERING

1

A147823

VALVE

ASSEMBLY - check (Order (1) A161709 valve and (1) 218-5242 fitting), Includes: Ref. 2 - 18

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (See ref. 1)

1шт.

3

A47663

ADAPTER

- female, cylinder hose

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - adapter (Order A47665)

1шт.

Part of seal kit, P/N A47665

1шт.

5

NSS

NOT SOLD SEPARAT

RING - backup (Order A47665)

1шт.

Part of seal kit, P/N A47665

1шт.

6

A47661

CONNECTOR, ELEC

CONNECTOR - male, cylinder hose

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - connector (Order A47665)

1шт.

Part of seal kit, P/N A47665

1шт.

8

A47660

SPRING

- check valve, 1-1/16" (26.99 MM) free length

2шт.

9

A47662

VALVE

CARTRIDGE - check, Includes: Ref. 10 - 13

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING - large (Order A47665)

1шт.

Part of seal kit, P/N A47665

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup (Order A47665)

1шт.

Part of seal kit, P/N A47665

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - small (Order A47665)

1шт.

Part of seal kit, P/N A47665

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup (Order A47665)

1шт.

Part of seal kit, P/N A47665

1шт.

15

A47659

SCREW

- signal port

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - screw (Order A47665)

1шт.

Part of seal kit, P/N A47665

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - small (Order A47665)

1шт.

Part of seal kit, P/N A47665

1шт.

18

211-108

BALL,5/32" Dia, Stainless

- shuttle, 5/32" (3.9 MM) diameter

1шт.

A47665

SEAL

KIT - Includes: Refs. 4, 5, 7, 10, 11, 12, 13, 16, 17, 23, 25, 26, 27, 28 and 29

1шт.

20

A161709

VALVE

ASSEMBLY - check, Includes: Ref. 21 - 30

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - valve (Order A161709)

1шт.

22

A47714

PLUG

- valve end

2шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug, 15/16 ID x 0.764" width (23.47 ID x 2.95 MM width)

2шт.

Part of valve repair kit, P/N A47715

1шт.

24

A47711

SLEEVE

- valve

2шт.

26

NSS

NOT SOLD SEPARAT

SPRING - sleeve (Order A47715)

2шт.

Part of valve repair kit, P/N A47715

1шт.

27

211-212

BALL

- sleeve spring, 0.437" (11.099 MM) dia

2шт.

Part of valve repair kit, P/N A47715

1шт.

28

NSS

NOT SOLD SEPARAT

SEAT - valve (Order A47715)

2шт.

Part of valve repair kit, P/N A47715

1шт.

29

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- seat

2шт.

Part of valve repair kit, P/N A47715

1шт.

30

A47709

VALVE

SHUTTLE - valve

1шт.

A47715

SEAL

KIT - valve repair, Includes: Refs. 4, 5, 7, 10, 11, 12, 13, 16, 17, 23, 25, 26, 27, 28 and 29

1шт.
