Запчасти Case IH 4690 (5-144) - REAR STEERING CYLINDER, 3" (76.2 MM) DIAMETER X 8" (203.2 MM) STROKE (05) - STEERING

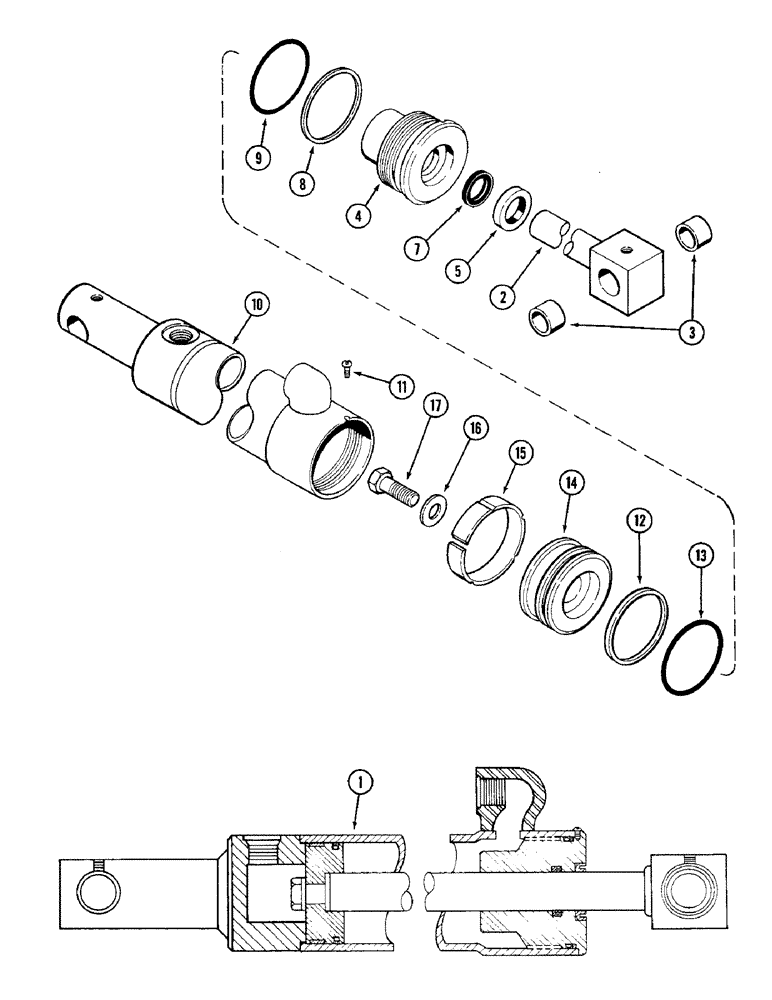

Схема запчастей Case IH 4690 - (5-144) - REAR STEERING CYLINDER, 3" (76.2 MM) DIAMETER X 8" (203.2 MM) STROKE (05) - STEERING
4
9
7
3
2
17
13
8
16
12
15
10
1
5
14
11

Артикул

Название

Примечание

Количество

1

G100065

CYLINDER

ASSEMBLY - rear steering, Includes: Ref. 2 - 17

2шт.

2

G35511

ROD

ASSEMBLY - piston, Includes: Ref. 3

1шт.

3

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- rod eye

2шт.

4

G35373

REPAIR KIT

GLAND ASSEMBLY, Includes: Ref. 5 - 9

1шт.

5

G33955

WIPER SEAL,25.37mm ID x 38.13mm OD x 7.92mm Thk

SCRAPER - rod

1шт.

Part of seal kit, P/N G35374

1шт.

7

G35372

SEAL

- rod

1шт.

Part of seal kit, P/N G35374

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, 3" (76.2 MM) ID

1шт.

Part of seal kit, P/N G35374

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

O RING - gland

1шт.

Part of seal kit, P/N G35374

1шт.

10

G34779

TUBE

- cylinder

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8-32 x 1/4" slotted round head

1шт.

12

G32034

RING

- seal, piston

1шт.

Part of seal kit, P/N G35374

1шт.

13

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

O RING - piston

1шт.

Part of seal kit, P/N G35374

1шт.

14

G34229

PISTON

- cylinder

1шт.

15

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

1шт.

Part of seal kit, P/N G35374

1шт.

16

G35009

WASHER

- 17/32" x 1-1/16" x 7/64" (13.49 x 26.99 x 2.78 MM)

1шт.

17

28-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

- 1/2" x 1-1/2" NC hex (Grade 8)

1шт.

G35374

KIT

- seal, Includes: Refs. 5, 7, 8, 9, 12, 13 and 15

1шт.
