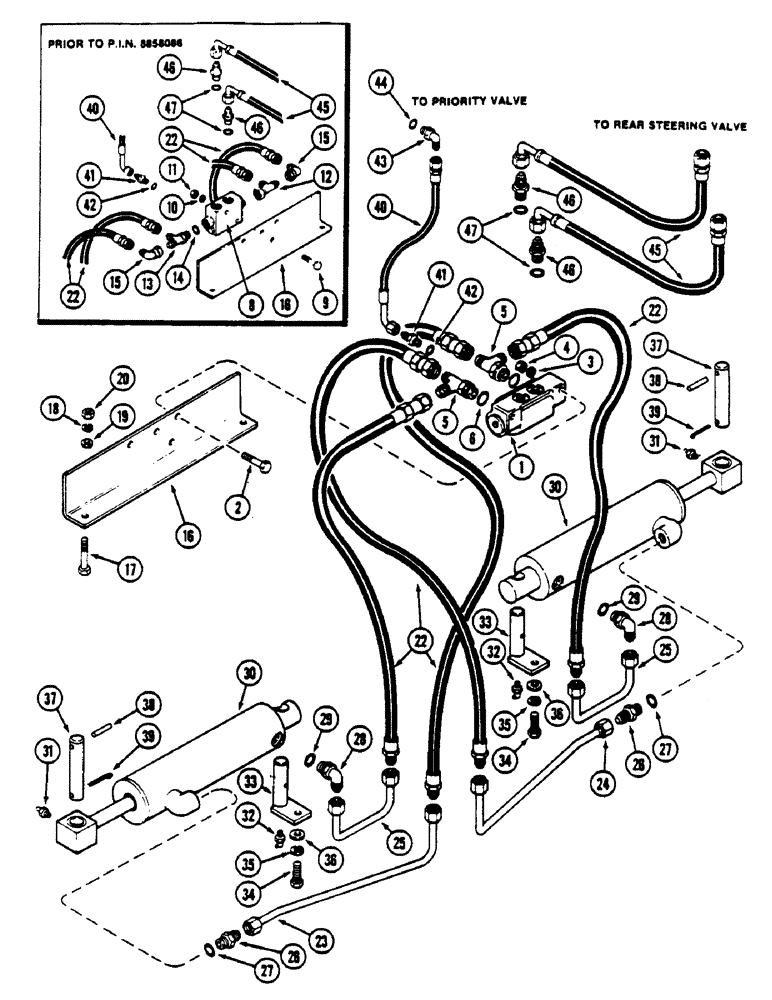

Запчасти Case IH 4690 (5-134) - REAR STEER HYDRAULICS, CHECK VALVE AND CYLINDERS (05) - STEERING

1

A161709

VALVE

VALVE ASSEMBLY - check (P.I.N. 8858086 and after) (See Figure 5-150)

1шт.

2

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

(Replaces 13-636)

2шт.

3

92-5

LOCK WASHER,5/16"

(Replaces 92-6)

2шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

NUT - 5/16" NC hex (Replaces 25-106)

2шт.

5

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

CONNECTOR ASSEMBLY - branch, 1/2" tube, Includes: Ref. 6

2шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(M16.36 ID x 2.21 Thk)

1шт.

8

A147823

VALVE

ASSEMBLY - check (Prior to P.I.N. 8858086) (Order A161709, see Figure 5-150)

1шт.

9

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

12

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

CONNECTOR - branch, 1/2" tube (LH hose)

1шт.

13

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

CONNECTOR ASSEMBLY - branch, 1/2" tube (RH hose), Includes: Ref. 14

1шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(M16.36 ID x 2.21 Thk)

1шт.

15

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1/2" tube

2шт.

16

A161785

ANGLE

Mounting, check valve (Replaces A16004)

1шт.

17

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

95-6

WASHER,3/8"

WASHER - 7/16" x 1" x 5/64" (11.1 x 25.4 x 1.9 mm)

2шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

22

A162278

HOSE,0.38" ID x 20.00", SAE 100R2 per SAE J517

Valve to cylinder tube (Replaces A161688)

4шт.

23

A77058

TUBE

Hose to RH steering cylinder

1шт.

24

A77059

TUBE

Hose to LH steering cylinder

1шт.

25

A77057

TUBE

Valve, Serial Range: hose-cylinder

2шт.

26

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Straight, 1/2" tube, Incl. Ref 27

2шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(M16.36 ID x 2.21 Thk)

1шт.

28

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY, Includes Ref. 29

2шт.

29

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(M16.36 ID x 2.21 Thk)

1шт.

30

REF

INSTRUCTION

CYLINDER ASSEMBLY - rear steer (See Figure 5-144)

2шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

32

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

33

A160384

PIN

Inner, steering cylinder (Replaces A76545)

2шт.

34

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

35

192-23

LOCK WASHER,1/2"

2шт.

36

195-106

WASHER,1/2"

WASHER - 9/16" x 1-3/8" x 7/64" (14.3 x 34.9 x 2.8 mm)

2шт.

37

A160382

PIN,25.4mm OD x 132.08mm L

Outer, steering cylinder

2шт.

38

135-764

GROOVED PIN,1/4" x 1 1/2", Type E

1/4" x 1/2"

2шт.

39

132-307

COTTER PIN,1/4" x 1 3/4"

2шт.

40

A161535

TUBE

HOSE - priority valve to check valve (Prior P.I.N. 8860450) (See Figure 5-132 for P.I.N. 8860450 and after)

1шт.

41

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ASSEMBLY (At check valve), Incl. Ref. 42

1шт.

42

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

(M11.89 ID x 1.98 Thk)

1шт.

43

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Assy, 3/8" tube x 7/16"-20 (At priority valve), Incl. Ref 44

1шт.

44

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

(M8.92 ID x 1.83 Thk)

1шт.

45

A160449

HOSE

Control valve to check valve

2шт.

46

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ASSEMBLY - straight, 1/2" tube (At check valve), Incl. Ref 47

2шт.

47

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(M16.36 ID x 2.21 Thk)

1шт.
