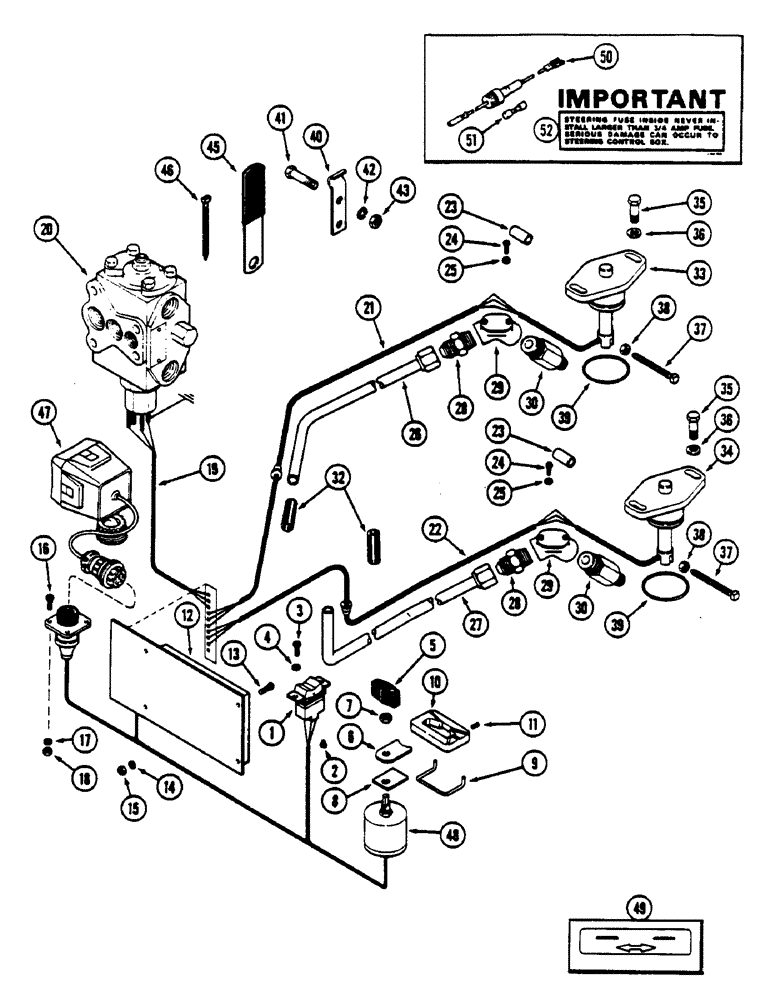

Запчасти Case IH 4690 (5-126) - REAR STEERING ELECTRIC CONTROLS (05) - STEERING

1

A162070

SWITCH

ASSEMBLY - rocker, rear steer control (Replaces A160186), Includes: Ref. 2

1шт.

2

182-583

SCREW,Slotted Pan Hd, #6-32 x 3/16"

Brass

3шт.

3

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

2шт.

4

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

2шт.

5

A160272

KNOB

Control box, steering

1шт.

6

A162042

PLATE

STRAP - switch retaining (Replaces 195-525)

1шт.

7

A39888

NUT

Spring (3/8"-32)

1шт.

8

A160501

SPRING

Selector knob

1шт.

9

A160502

ELECTRICAL WIRE

WIRE Stop

1шт.

10

A162250

KNOB

Stop wire (Replaces A160531)

1шт.

11

178-850

SET SCREW,Hex Soc, #6-32 x 1/4"

(Replaces 176-409)

2шт.

12

A162852

ELEC CONNECTOR

MODULE ASSEMBLY - control (Replaces A160049)

1шт.

13

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

5шт.

14

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

4шт.

15

129-16

NUT,#8-32

5шт.

16

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

4шт.

17

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

4шт.

18

129-15

NUT,#6-32

4шт.

19

A160043

HARNESS

Wire, control box to control valve

1шт.

129-16

NUT,#8-32

(Harness to valve) (Not shown)

1шт.

20

REF

INSTRUCTION

VALVE ASSEMBLY - rear steer control (See Figure 5-148)

1шт.

21

A160042

HARNESS

Wire, rear, Serial Range: sensor-box

1шт.

22

A160041

HARNESS

Wire, front, Serial Range: sensor-box

1шт.

23

A161254

SLEEVE

Shrink, harness to sensor lugs (Set of 3)

2шт.

Use 345-92 silicone protector.

1шт.

24

182-583

SCREW,Slotted Pan Hd, #6-32 x 3/16"

Brass (Harness terminals)

6шт.

25

129-15

NUT,#6-32

6шт.

26

A149688

CONDUIT

Rear wire harness

1шт.

27

A149685

CONDUIT

Front wire harness

1шт.

28

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

Straight

2шт.

29

A149530

FITTING

ELBOW - conduit to axle trunnion

2шт.

30

A149605

CONNECTOR, ELEC

CONNECTOR Straight, 3/4" PT x 5/8" - 11

2шт.

32

A161375

SLEEVE

Shrink, harness to conduit (Set of 2)

1шт.

33

A149695

TRANSMITTER

SENSOR - rear axle LH trunnion

1шт.

33

A185742R

REMAN-SENSOR

4690 CASE TRACTOR, SENSOR, rear axle LH trunnion (1/79-12/83), Reman for New PN A149695

1шт.

33

A185742C

CORE-SENSOR

Return Number

1шт.

34

A149694

TRANSMITTER

SENSOR - front axle LH trunnion

1шт.

34

A185741R

REMAN-SENSOR

4690 CASE TRACTOR, SENSOR, front axle LH trunnion (1/79-12/83), Reman for New PN A149694

1шт.

34

A185741C

CORE-SENSOR

Return Number

1шт.

35

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

36

195-104

WASHER,3/8"

WASHER - 7/16" x 1" x 5/64" (11.1 x 25.4 x 1.9 mm)

4шт.

37

A160466

SQUARE BOLT,1/4" - 20, SST

Set, Serial Range: sensor-trunnion

2шт.

38

129-141

JAM NUT,Jam, 1/4"-20, G5

2шт.

39

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

(50.8 ID x 3.17 mm width)

2шт.

40

A27886

BRACKET

SPARE PART Front wire conduit to frame (If equipped)

1шт.

41

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(If equipped)

1шт.

42

192-21

LOCK WASHER,3/8"

(If equipped)

1шт.

43

129-103

NUT,Hex, 3/8" - 16, Gr 5

(If equipped)

1шт.

45

A149744

CLAMP

SPARE PART Rear wire conduit

1шт.

46

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Nylon, wire harness

1шт.

47

REF

INSTRUCTION

INDICATOR - turn, rear wheel (See Figure 4-82)

1шт.

48

A47749

SWITCH

ROTARY - replacement kit

1шт.

49

321-5319

DECAL

Selector (Used with A160531 knob)

1шт.

50

A164655

HARNESS

ASSEMBLY - rear steering system in line fuse (Prior P.I.N. 8859751), Includes: Ref. 51

1шт.

51

223-40

FUSE,3/4 Amp, Type 3AG

AGC

1шт.

52

A164700

DECAL

Rear steering fuse (Important) (Prior P.I.N. 8859751)

1шт.
