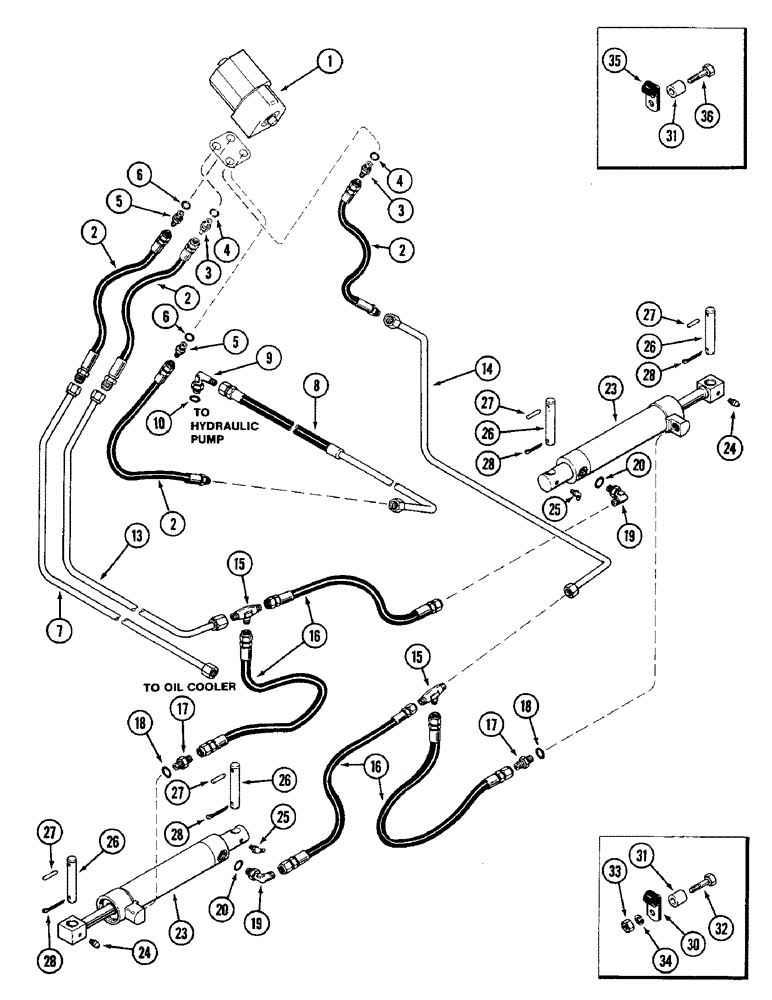

Запчасти Case IH 4690 (5-124) - FRONT STEER HYDRAULICS (05) - STEERING

1

REF

INSTRUCTION

PUMP AND VALVE ASSEMBLY - steering (See Figure 5-136 or 5-138)

1шт.

2

A162278

HOSE,0.38" ID x 20.00", SAE 100R2 per SAE J517

Valve ports (Replaces A161688)

4шт.

3

A149481

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - restrictive, cylinder hoses (1/2" tube), Includes: Ref. 4

2шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(M16.36 ID x 2.21 Thk)

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ASSEMBLY - In and out ports (1/2" tube), Incl. Ref 6

2шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(M16.36 ID x 2.21 Thk)

1шт.

7

A138365

TUBE

Oil cooler inlet

1шт.

8

A162279

HOSE

Pressure, hydraulic pump (Replaces A151131)

1шт.

9

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY, Includes Ref. 10

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(M16.36 ID x 2.21 Thk)

1шт.

13

A138364

TUBE

RH steering cylinder

1шт.

14

A138366

TUBE

LH steering cylinder

1шт.

15

218-594

TEE,3/4"-16, 37 Degree

1/2" tube x 1/2" tube x 3/4"-16

2шт.

16

H364497

HOSE,0.38" ID x 22.00", SAE 100R2A

Steering Cylinder, Replaces D64604

4шт.

17

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ASSEMBLY - Straight, Incl. Ref 18

2шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(M16.36 ID x 2.21 Thk)

1шт.

19

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY, Includes Ref. 20

2шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(M16.36 ID x 2.21 Thk))

1шт.

23

REF

INSTRUCTION

CYLINDER ASSEMLBY - front wheel steer (See Figure 5-140 or 5-142)

2шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

25

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

2шт.

26

A160382

PIN,25.4mm OD x 132.08mm L

Cylinder anchor

4шт.

27

135-764

GROOVED PIN,1/4" x 1 1/2", Type E

4шт.

28

132-307

COTTER PIN,1/4" x 1 3/4"

4шт.

30

49838

CLAMP

Tube

6шт.

31

A76093

BUSHING

SPACER - clamp

2шт.

32

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

33

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

34

192-21

LOCK WASHER,3/8"

2шт.

35

R14668

CLAMP

Pressure hose

1шт.

36

187-1305

SELF-TAP SCREW,Hex, 3/8" - 18 x 1 1/4"

Taptite

1шт.
