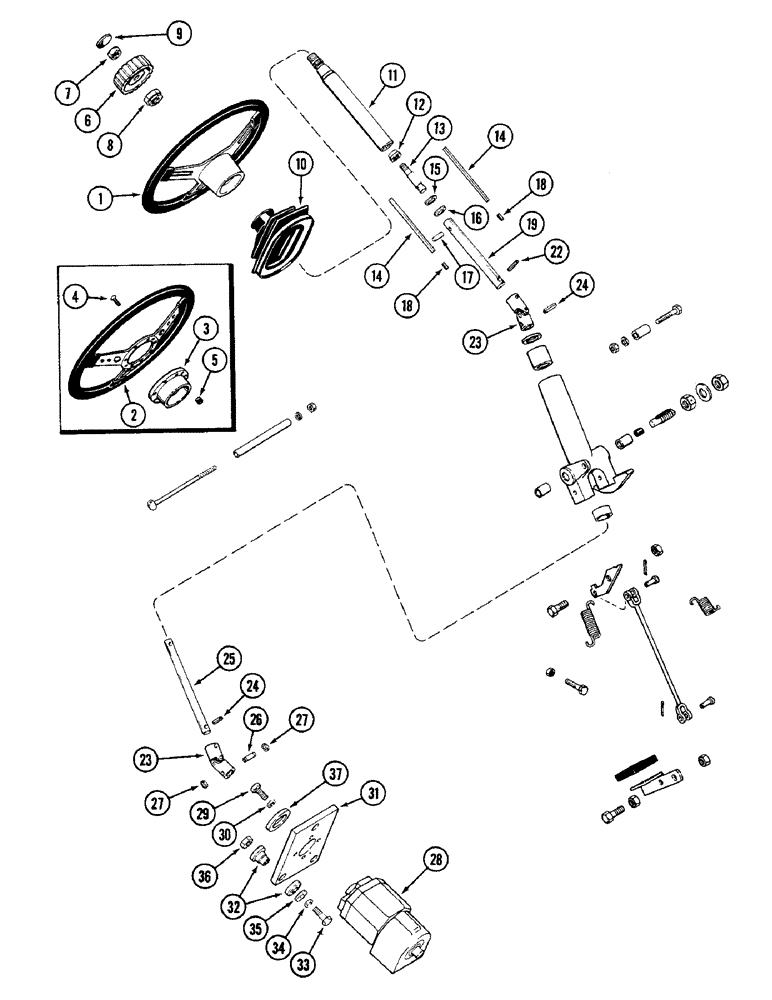

Запчасти Case IH 4690 (5-120) - DELUXE STEERING WHEEL, SHAFT AND PUMP (05) - STEERING

1

A164267

HUB

WHEEL - steering (Replaces A161183 and A161182)

1шт.

2

A161183

WHEEL

Steering, leather covered (Order A164267)

1шт.

3

A161182

HUB

Wheel (Order A164267)

1шт.

4

171-80

SPARE PART #8-32 x 3/4" socket head (Obtain Locally)

9шт.

5

129-653

NUT,#10-32

Knurled, #8-32

9шт.

6

A141827

CAP

Center, steering wheel

1шт.

7

25-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

8

A14567

JAM NUT

, Serial Range: Wheel-shaft

1шт.

9

A161347

INSERT

Cap, solid state selective steering

1шт.

10

A61910

BOOT

Steering shaft

1шт.

11

A63681

SHAFT

Outer steering

1шт.

12

A63684

LOCK NUT

Lock, LH thread (1/2" NC)

1шт.

A180055 Inset Eagle

1шт.

13

A63683

SHAFT

Lock, telescoping shaft

1шт.

14

A63686

KEY

Lock, steering shaft

2шт.

15

A63688

FRICTION WASHER

Retainer, friction lock

1шт.

16

A58116

RING

Snap

1шт.

17

A63685

PIN

Stop

1шт.

18

A63687

LOCK

Friction

2шт.

19

A162020

SHAFT

Inner steering

1шт.

22

A139174

PIN

Inner shaft to joint, 3/8" x 1-3/16"

1шт.

23

A63689

JOINT

Universal, steering shaft

2шт.

24

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

2шт.

25

A150368

SHAFT

Upper shaft to valve assembly

1шт.

26

A64000

PIN,9.42mm OD x 38.1mm L

Valve shaft (3/8" x 1-1/2" with grooves)

1шт.

27

A164905

SNAP RING,#37, Ext

Steering valve pin (Replaces A27795)

2шт.

28

REF

INSTRUCTION

VALVE AND PUMP ASSEMBLY - steering (See Figure 5-136 or 5-138)

1шт.

29

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

30

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

31

A145914

PLATE

Mounting, valve and pump

1шт.

32

A141515

ISOLATOR

MOUNT

3шт.

33

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

34

192-21

LOCK WASHER,3/8"

3шт.

35

195-524

WASHER,5/16"

WASHER - 3/8" x 1-1/8" x 1/16" (9.5 x 28.6 x 1.6 mm)

3шт.

36

129-103

NUT,Hex, 3/8" - 16, Gr 5

3шт.

37

A145915

SEAL,41.148mm ID x 57.15mm OD x 12.7mm Thk

Firewall

1шт.
