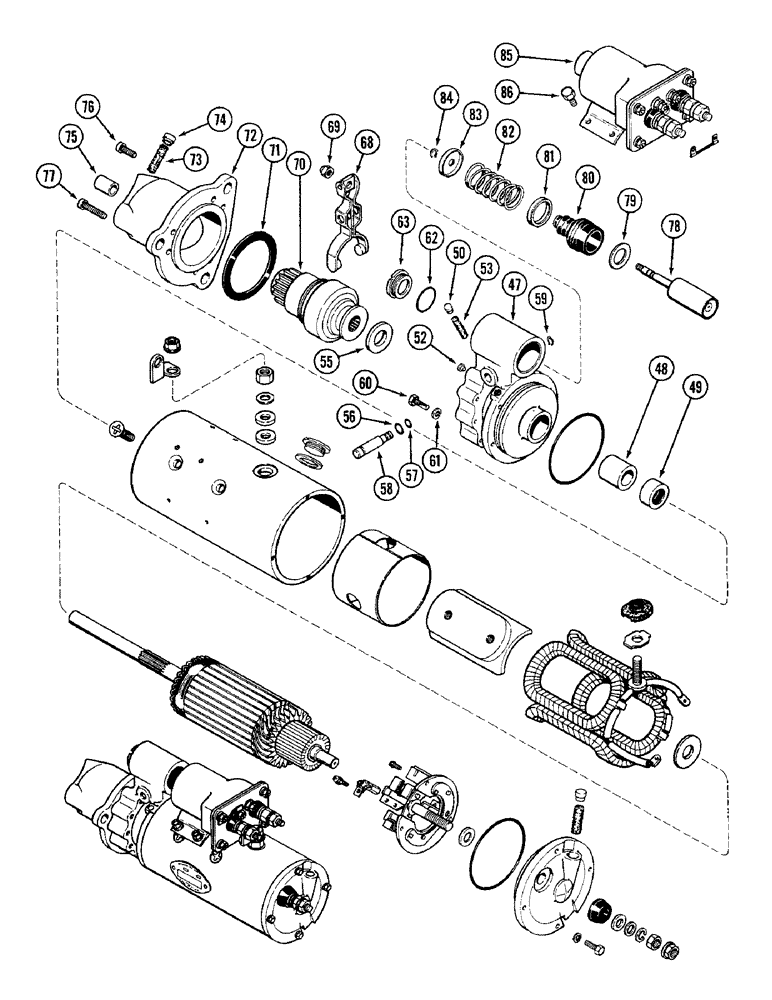

Запчасти Case IH 4690 (4-108) - STARTER ASSEMBLY, PRIOR TO P.I.N. 8860931 (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A162578
ENGINE
STARTER ASSEMBLY - (Continued from Figure 4-106), Includes: Ref. 47 - 86 and 2 - 43 on Figure 4-106
1шт.
47
A47935
HOUSING
ASSEMBLY - shift lever, Includes: Ref. 48 - 55
1шт.
48
A47848
BUSHING
- shift lever housing (Replaces A47842)
1шт.
49
R21582
OIL SEAL
- oil
1шт.
50
A47889
PLUG
- oil reservoir
1шт.
52
A47897
PLUG
- housing
1шт.
53
A47888
WICK
- oil
1шт.
55
R15145
DISC
WASHER - brake
1шт.
56
A47259
O-RING,0.244" ID x 0.391" OD
O RING - stud
1шт.
57
A47258
O-RING,0.369" ID x 0.515" OD
O RING - stud
1шт.
58
A42199
PIN
STUD - shift lever pivot
1шт.
59
G46146
SNAP RING,#37, Ext
Ring, Snap, , stud retaining #37, Ext
1шт.
60
114-1
BOLT,Hex, 1/4" - 28 x 1", Gr 5
5шт.
61
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
5шт.
62
A41924
GASKET
- plug
1шт.
63
R21587
PLUG
- shift lever housing
1шт.
68
D32547
LEVER
ASSEMBLY - shifter
1шт.
69
131-31
LOCK NUT,5/16"-24, G8
NUT - lock, 5/16" NF hex
1шт.
70
A47523
DRIVE
ASSEMBLY - starter clutch
1шт.
71
R21562
GASKET
- drive end housing
1шт.
72
A47898
HOUSING
ASSEMBLY - drive end, Includes: Ref. 73 - 75
1шт.
73
A47888
WICK
- oil
1шт.
74
A47889
PLUG
- 1/8" PT slotted headless
1шт.
75
A47257
BUSHING
- drive end
1шт.
76
D32489
HEX SOC SCREW,5/16" - 18 x 0.86"
SCREW - drive end housing (5/16" x 23/64" NC special socket)
1шт.
77
D32488
HEX SOC SCREW,5/16" - 18 x 1.50"
SCREW - drive end housing (5/16" x 1-1/2" NC special socket)
5шт.
78
A43209
RETAINER
PLUNGER - solenoid core
1шт.
79
A41922
WASHER
SEAT - boot
1шт.
80
A42308
BOOT
COVER - plunger
1шт.
81
A43380
BACK-UP RING
SEAT - spring, solenoid end
1шт.
82
A41242
SPRING
- plunger return
1шт.
83
A43419
SEAT
- spring, lever end
1шт.
84
G46146
SNAP RING,#37, Ext
Ring, Snap, , plunger retaining #37, Ext
1шт.
85
A47931
SOLENOID
ASSEMBLY - starter
1шт.
86
R15159
SCREW,Hex, 1/4" - 20 x 3/8", w/ LW
- solenoid mounting
4шт.
Выбрано товаров: 35
