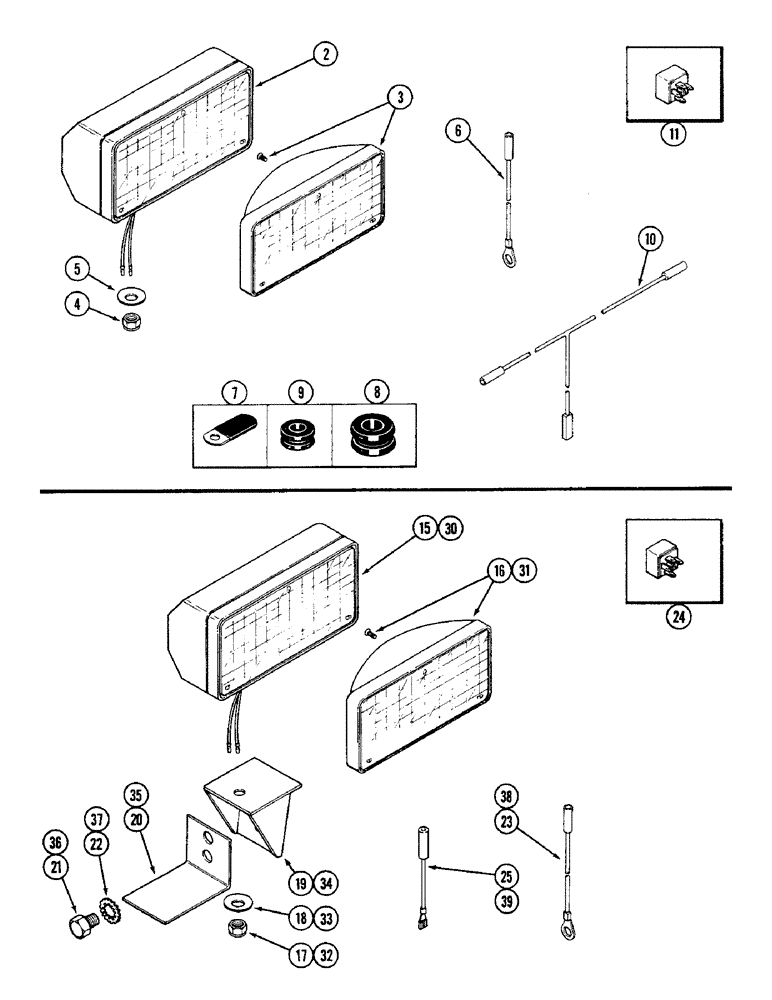

Запчасти Case IH 4690 (4-095A) - FLOOD LAMP ATTACHMENT, CAB MOUNTED (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A165459
ATTACHMENT
- cab mounted flood lamp, Includes: Ref. 2 - 11
1шт.
2
A165192
LAMP
ASSEMBLY - flood, Includes: Ref. 3
1шт.
3
A48265
LAMP
- seal beam (Includes mounting screws)
1шт.
4
129-105
NUT,Hex, 1/2" - 13, Gr 5
1шт.
5
D37049
WASHER
- pivot
1шт.
6
A147344
ELECTRICAL WIRE
WIRE - ground, 1/2" eyelet (12.7 MM)
1шт.
6
A147343
ELECTRICAL WIRE
WIRE - ground, 3/8" eyelet (9.52 MM)
1шт.
7
A22880
CLIP
CLAMP - wire
1шт.
8
A61144
GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut
- wire, 1/2" ID (1.27 MM)
1шт.
9
L13765
GROMMET
- wire, 3/8" ID (9.52 MM)
1шт.
10
A142935
HARNESS
- front lamp
1шт.
11
A147176
RELAY
- lamp
1шт.
A165460
ATTACHMENT
- cab mounted flood lamp, Includes: Ref. 15 - 25
1шт.
15
A165192
LAMP
ASSEMBLY - flood, Includes: Ref. 16
2шт.
16
A48265
LAMP
- seal beam (Includes mounting screws)
1шт.
17
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
18
D37049
WASHER
- pivot
2шт.
19
A149102
BRACKET
- lamp mounting
2шт.
20
A149792
GUARD
SHIELD - lamp terminal
2шт.
21
113-433
BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd
2шт.
22
193-87
LOCK WASHER,Ext-Int Tooth, 1/2"
WASHER, LOCK, Ext-Int Tooth, 1/2"
2шт.
23
A147344
ELECTRICAL WIRE
WIRE - ground, 1/2" eyelet (12.7 MM)
2шт.
24
A147176
RELAY
- lamp
1шт.
25
A160351
ELECTRICAL WIRE
WIRE - adapter
2шт.
A165461
ATTACHMENT
- cab mounted flood lamp, Includes: Ref. 30 - 39
1шт.
30
A165192
LAMP
ASSEMBLY - flood, Includes: Ref. 31
2шт.
31
A48265
LAMP
- seal beam (Includes mounting screws)
1шт.
32
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
33
D37049
WASHER
- pivot
2шт.
34
A149102
BRACKET
- lamp mounting
2шт.
35
A149792
GUARD
SHIELD - lamp terminal
2шт.
36
113-433
BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd
2шт.
37
193-87
LOCK WASHER,Ext-Int Tooth, 1/2"
WASHER, LOCK, Ext-Int Tooth, 1/2"
2шт.
38
A147344
ELECTRICAL WIRE
WIRE - ground, 1/2" eyelet (12.7 MM)
2шт.
39
A160351
ELECTRICAL WIRE
WIRE - adapter
2шт.
Выбрано товаров: 35
