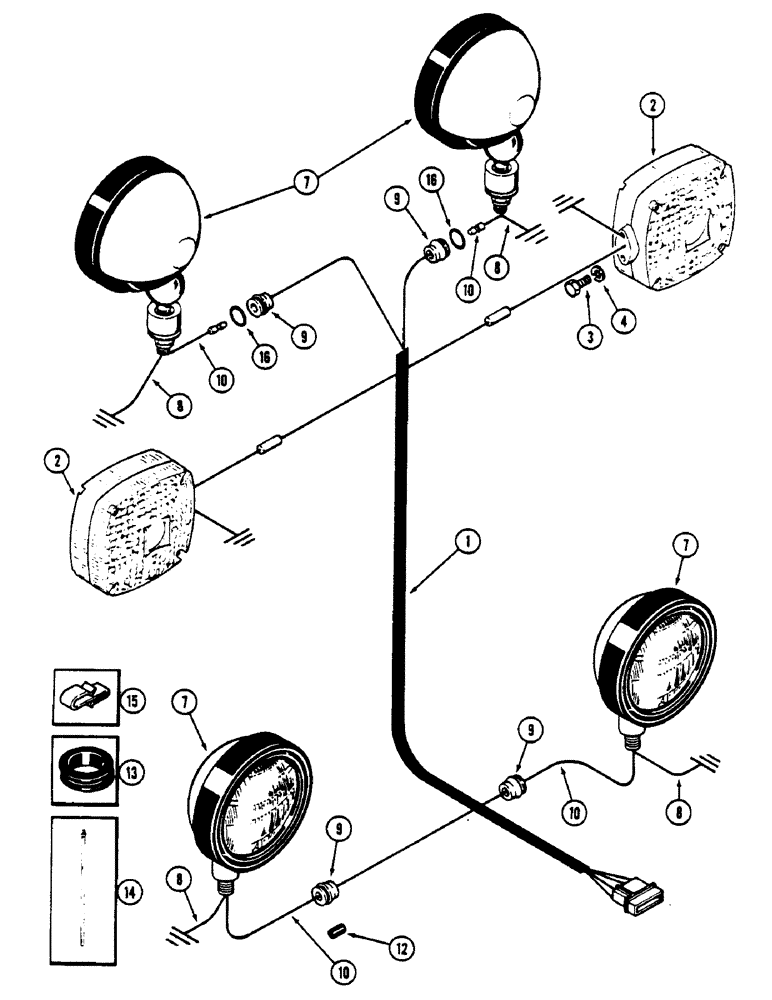

Запчасти Case IH 4690 (4-092) - CAB MOUNTED LIGHTS AND WIRING (04) - ELECTRICAL SYSTEMS
9
8
7
12
16
7
10
9
10
8
1
2
4
16
10
8
15
14
9
2
8
3
7
9
13
10
№
Артикул
Название
Примечание
Количество
1
F64416
HARNESS
Wire, cab mounted upper lights
1шт.
2
REF
INSTRUCTION
LAMP - flasher warning (See Figure 4-090)
2шт.
3
113-2
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
4шт.
4
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
4шт.
7
A145495
LAMP
Flood, front and rear (See Figure 4-094)
4шт.
8
A147344
ELECTRICAL WIRE
WIRE Ground, flood lamp, 8" black (203.2 mm)
4шт.
9
F64468
BUSHING
Terminal, flood lamp
4шт.
10
A160351
ELECTRICAL WIRE
WIRE Adapter 5" blue (127.0 mm)
4шт.
12
F64483
COVER
CAP - terminal
4шт.
13
353-701
BUSHING
Wire harness
1шт.
14
L18331
CABLE TIE,375.9mm L, Nylon, Black
CABLE STRAP Nylon, wire harness
1шт.
15
214-1104
CLAMP
Harness
2шт.
16
A61195
O-RING,0.364" ID x 0.5" OD
Terminal bushing
2шт.
Выбрано товаров: 13
