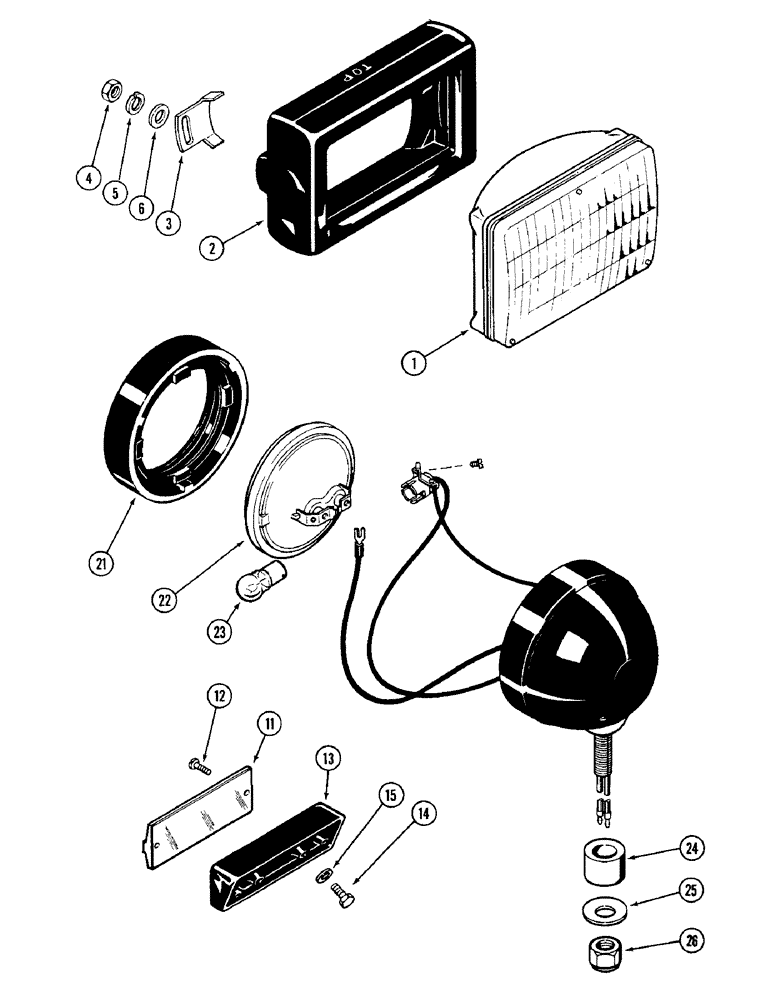

Запчасти Case IH 4690 (4-088) - HEAD LAMP (04) - ELECTRICAL SYSTEMS

1

A139458

LAMP

- sealed unit (#4652)

2шт.

2

A146354

MOUNTING PARTS

MOUNT - shock

2шт.

3

A146355

CLAMP

- mounting

4шт.

4

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

6

195-518

WASHER,1/4", SAE

- 9.32" x 5/8" x 5/64" (14.3 x 15.9 x 1.9 mm)

4шт.

11

A62415

REFLECTOR

- red, rear

2шт.

12

187-1058

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - self-tapping, #10 x 5/8" round head, rear reflector

4шт.

13

A62416

BRACKET

- reflector, rear

2шт.

14

187-1073

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 5/8"

SCREW - self-tapping, 1/4" x 5/8" hex head, rear reflector

4шт.

15

195-2251

WASHER,.281" x 1" x .109"

- 9/32" x 1" x 1/32" (7.14 x 25.4 x 0.79 MM), rear reflector

4шт.

A155077

LAMP

ASSEMBLY - flood, LH rear fender, J I Case installed, Includes: Ref. 21 - 24

1шт.

21

A25213

RETAINER

- sealed beam

1шт.

22

D71409

BULB

- sealed beam (#4409X)

1шт.

23

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

24

D37048

BUSHING

- pivot

1шт.

25

D37049

WASHER

- pivot

1шт.

26

129-125

NUT,1/2"-20, G5

1шт.
