(4-078) - CAB, LOWER WIRING HARNESS

Запчасти Case IH 4690 (4-078) - CAB, LOWER WIRING HARNESS (04) - ELECTRICAL SYSTEMS

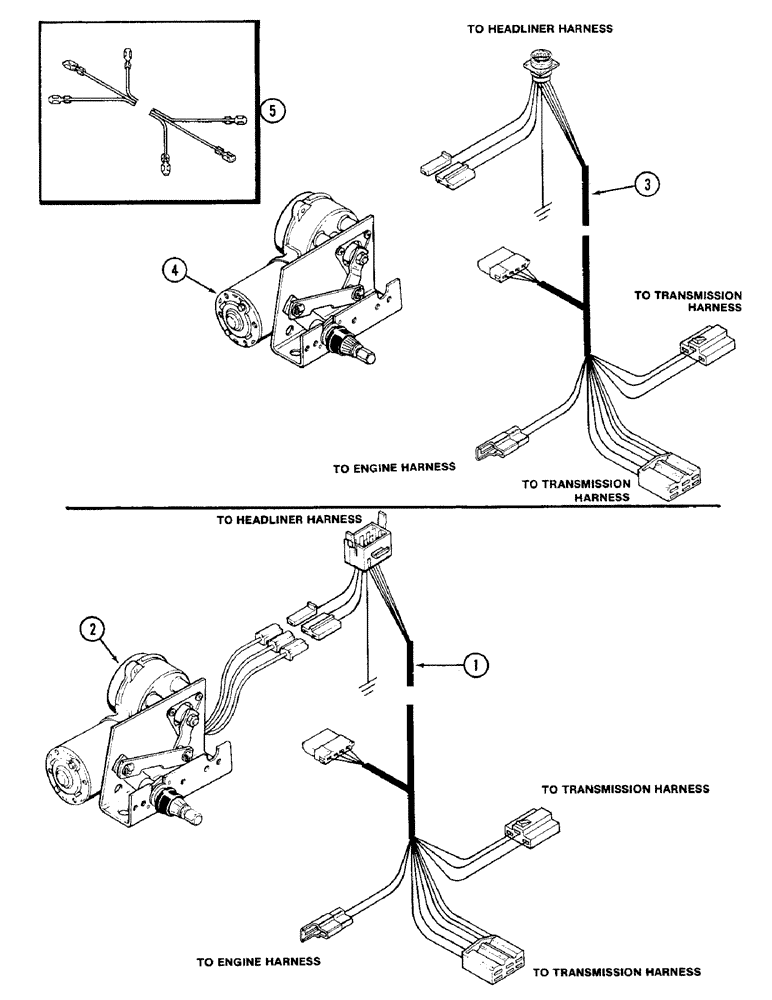

Схема запчастей Case IH 4690 - (4-078) - CAB, LOWER WIRING HARNESS (04) - ELECTRICAL SYSTEMS
1
2
3
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F64442

HARNESS

ASSEMBLY - lower, cab wiring, prior tp cab SN 12033908

1шт.

2

F98108

WIPER

ASSEMBLY - windshield (See Figure 9-426) (Order F96764, F64530 and F64524), prior to cab SN 12033908

1шт.

3

F64524

HARNESS

ASSEMBLY - lower, cab wiring, cab SN 12033908 and after

1шт.

4

F96764

WIPER

ASSEMBLY - windshield (See Figure 9-428) cab SN 12033908 and after

1шт.

5

F64530

ELECTRICAL WIRE

WIRE ASSEMBLY - adapter cab SN 12033908 and after

1шт.
