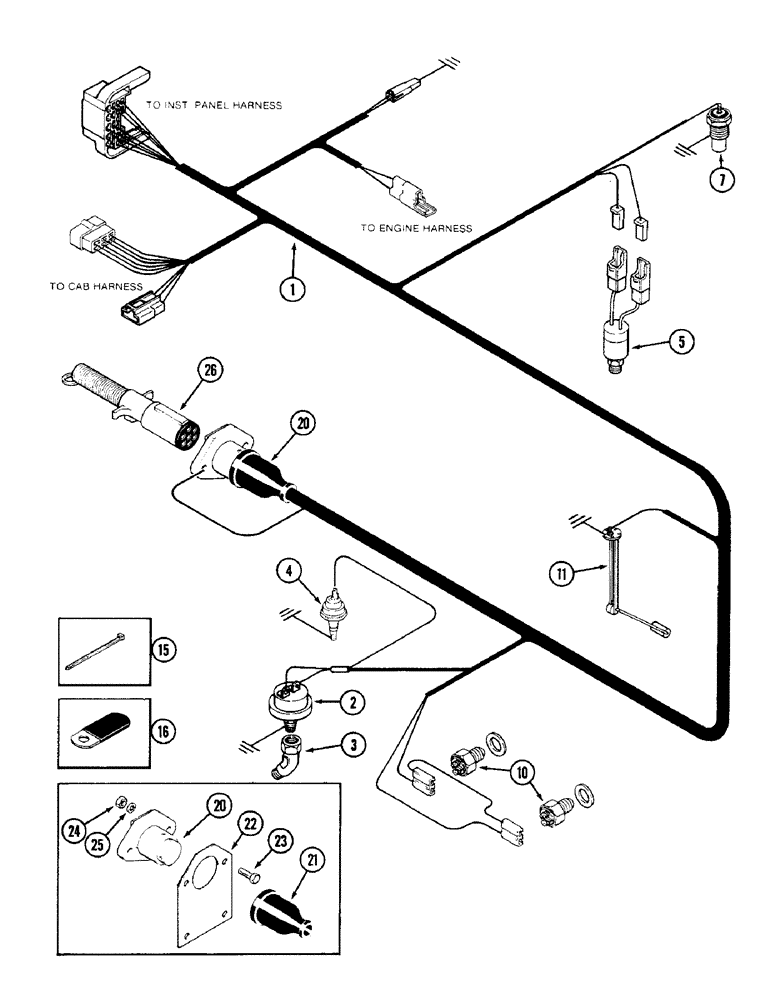

Запчасти Case IH 4690 (4-074) - TRANSMISSION WIRING (04) - ELECTRICAL SYSTEMS

1

A161496

HARNESS

ASSEMBLY - wire, transmission components

1шт.

2

A161461

SWITCH

- transmission differential pressure (At filter) (See Figure 8-246)

1шт.

3

221-1401

ELBOW,45º, 1/8"-27, NPT

- 1/8" PT 45 degree

1шт.

4

A66737

SWITCH, PRESSURE

SWITCH - transmission filter pressure (See Figure 8-246)

1шт.

5

A162422

SWITCH

SWTICH - transmission pressure (Replaces A145119) (See Figure 8-246)

1шт.

7

A135001

SWITCH

- transmission temperature

1шт.

10

A139078

SWITCH

- neutral start (See Figure 6-160)

2шт.

11

A160044

SENDER UNIT

SENDER - fuel tank level (See Figure 3-66)

1шт.

15

A160890

STRAP

- nylon, harness

1шт.

16

A22880

CLIP

CLAMP - wire

2шт.

20

A38739

CONNECTOR, ELEC

CONNECTOR - female, 7 point, auxiliary electric outlet

1шт.

21

A38740

GUARD

COVER - connector wiring, auxiliary electric outlet

1шт.

22

A149955

BRACKET

- mounting, auxiliary electric outlet

1шт.

23

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1" NC hex (Grade 5), Auxiliary electric outlet

4шт.

24

9635082

NUT,5/16" - 18, Gr 5

Auxiliary electric outlet 5/16"-18, G5

4шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Auxiliary electric outlet 5/16"

4шт.

26

A139672

PLUG

- male connector, 7 point, auxiliary electric outlet

1шт.
