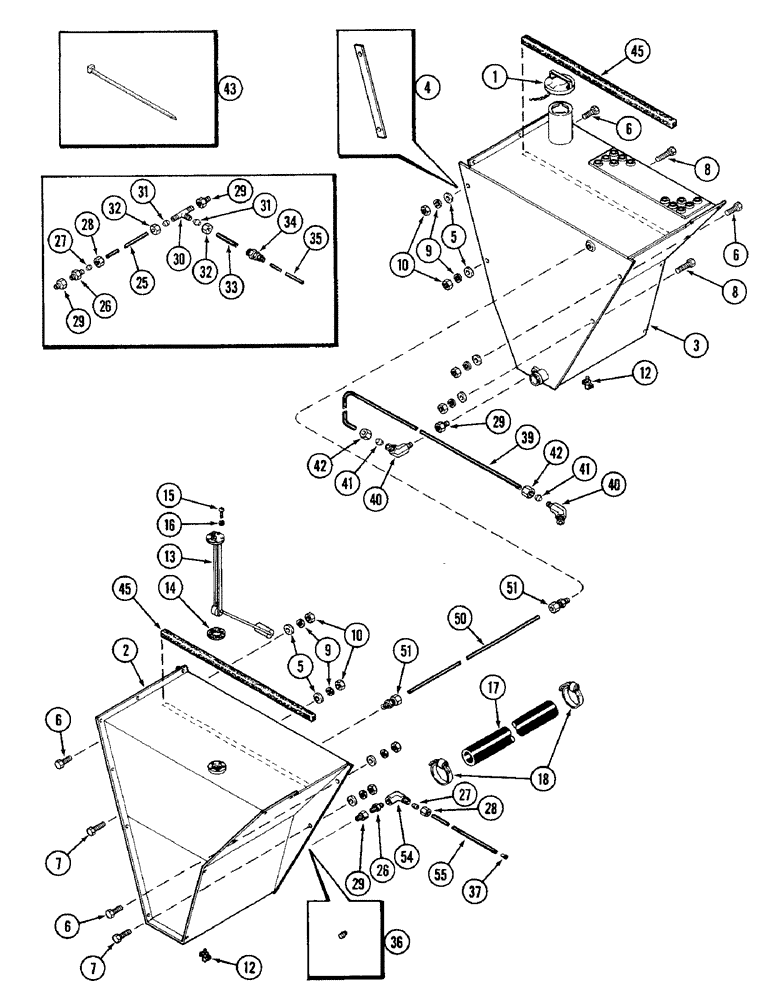

Запчасти Case IH 4690 (3-066) - FUEL TANK, 504BDTI DIESEL ENGINE (03) - FUEL SYSTEM

1

V34471

TUNNEL

- filler, LH tank

1шт.

2

A160870

TANK

- fuel, RH side

1шт.

3

A160871

TANK

- fuel, LH side

1шт.

4

A149394

SPACER

- fuel tank (Order A162058)

4шт.

5

A162058

SPACER

- fuel tank (Order A149394)

8шт.

6

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

7

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

8

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

9

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

10

129-107

NUT,5/8"-11, G5

8шт.

12

217-81

VALVE

- drain, 1/8" PT

2шт.

13

A160044

SENDER UNIT

SENDER - fuel level (In RH tank)

1шт.

14

A11822

GASKET

-, Serial Range: sender-tank

1шт.

15

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10-32 x 7/16" round head

5шт.

16

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

17

A160192

HOSE,2.00" ID x 29.00", SAE 30R1 PER SAE J30 OR SAE 30R2 TYPE 2

2.00" ID x 29.00", SAE 30R1 per SAE J30 - Passage, Tank to Tank

1шт.

18

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

25

A63997

TUBE

- vent, tank to tank, 3/8" x 25" (9.52 x 635 MM) (Order and cut from A67323 bulk) (Prior P.I.N. 8860450)

1шт.

26

222-5101

CONNECTOR, ELEC,17/32"-24 x 1/4" NPT

CONNECTOR - 3/8" tube x 1/4" PT (In LH tank) (Replaces 218-5101), Includes: Ref. 27 and 28

1шт.

27

222-5186

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

28

222-5181

NUT,9/16"-24

NUT - 3/8" tube

1шт.

29

217-2

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

- brass, 1/4" x 1/4"

3шт.

30

222-5120

TEE,7/16"-24 x 1/4" NPT Run

CONNECTOR ASSEMBLY - branch, 3/8" tube x 3/8" tube x 1/4" PT (In LH tank) (Prior to P.I.N. 8860450), Includes: Ref. 31 and 32

1шт.

31

222-5186

SLEEVE,3/8" Tube

- 3/8" (9.52 MM) tube

2шт.

32

222-5181

NUT,9/16"-24

NUT - 3/8" (9.52 MM) tube

2шт.

33

A135463

TUBE

- tee to return tube, 3/8" OD x 9-1/2" (9.52 x 241.3 MM) (Order and cut from A67322) (Prior P.I.N. 8860450)

1шт.

36

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - 1/4" square head (RH fuel tank rear) (Prior P.I.N.8860450)

1шт.

37

A141160

INSERT

- tube

1шт.

Ref #37 - (1/4")

1шт.

39

A161184

TUBE

- fuel, tank to pump, 3/8" x 86" (9.52 x 2184.4 MM) (Order and cut from A67323)

1шт.

40

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW ASSEMBLY - 45 degree, 3/8" tube x 1/4" PT, Includes: Ref. 41 and 42

2шт.

41

222-5186

SLEEVE,3/8" Tube

- 3/8" (9.52 MM) tube

1шт.

42

222-5181

NUT,9/16"-24

NUT - 3/8" (9.52 MM) tube

1шт.

43

A160890

STRAP

- nylon, fuel line tie

2шт.

45

A150492

FOAM

- sealing, top of tank

2шт.

50

A63997

TUBE

- vent, tank to tank, 3/8" OD x 25" (9.5 x 762 MM) (P.I.N. 8860450 and after)

1шт.

51

222-5101

CONNECTOR, ELEC,17/32"-24 x 1/4" NPT

CONNECTOR ASSEMBLY - 3/8" tube x 1/4" PT

2шт.

54

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW - 1/4" tube x 1/4" PT, 90 degree (Replaces 222-5103 connector) (Replaces 222-5114)

1шт.

55

L108947

TUBE,4.32 mm ID x 6.35 mm OD x 5340 mm L

- leakoff return from injector, 3/8" OD x 108" (9.5 x 2 743 MM) (P.I.N. 8860450 and after) (Order and cut from A67323 bulk) (Replaces A164699)

1шт.
