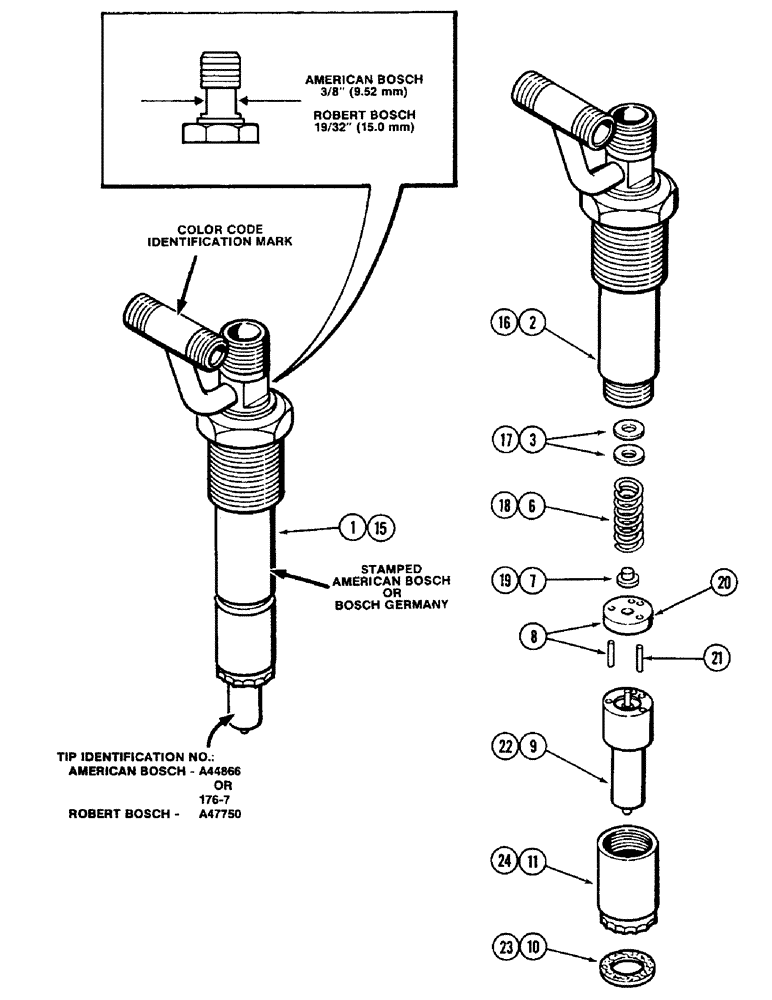

Запчасти Case IH 4690 (3-062) - FUEL INJECTOR NOZZLE, 504BDTI DIESEL ENGINE, ORANGE COLOR CODE INDENTIFICATION (03) - FUEL SYSTEM

1

A156325

FUEL SYSTEM INJECTOR

NOZZLE ASSEMBLY - fuel injection, Includes: Ref. 1 - 24

6шт.

1

NSS

NOT SOLD SEPARAT

NOZZLE ASSEMBLY - fuel injection, American Bosch (Order A156325), Includes: Ref. 2 - 11

1шт.

American Bosch and Robert Bosch injector nozlle components are not interchangeable. See illustration for indentification.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A156325), Includes: Ref. 3

1шт.

A44860

SHIM

KIT - shim, nozzle opening pressure (One kit required to repair six nozzles)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 6 in kit, 0.062" (1.57 MM)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 80 in kit, 0.002" (0.05 MM)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 50 in kit, 0.007" (0.18 MM0

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 50 in kit, 0.010" (0.25 MM)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 20 in kit, 0.025" (0.64 MM)

1шт.

6

A44864

SPRING

- nozzle pressure adjusting

1шт.

7

A44863

SEAT

- nozzle pressure adjusting spring

1шт.

8

A44862

VALVE

STOP - nozzle assembly, with pin

1шт.

9

A44866

NOZZLE INJECTION

TIP ASSEMBLY - nozzle injector, Includes: Ref. 10

1шт.

10

A76640

GASKET

- nozzle

1шт.

Whenever nozzle is removed from head, A76640 gasket must be replaced before nozzle is installed back in head.

1шт.

11

A44861

NUT

NUT - nozzle end

1шт.

15

NSS

NOT SOLD SEPARAT

NOZZLE ASSEMBLY - fuel injection, Robert Bosch (Order A156325), Includes: Ref. 16 - 24

1шт.

American Bosch and Robert Bosch injector nozlle components are not interchangeable. See illustration for indentification.

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A156325)

1шт.

A48186

KIT

- shim, nozzle opening pressure (One kit required to repair six nozzles), Includes: Ref. 17

1шт.

17

A48204

SHIM,1.00mm Thk

Nozzle, 5 in kit (.039") 1.00mm Thk

1шт.

17

A48205

SHIM,1.10mm Thk

Nozzle, 5 in kit (.043") 1.10mm Thk

1шт.

17

A48206

SHIM,1.20mm Thk

Nozzle, 5 in kit (.047") 1.20mm Thk

1шт.

17

A48207

SHIM,1.30mm Thk

Nozzle, 5 in kit (.051") 1.30mm Thk

1шт.

17

NLS

NO LONGER SERVICED

- nozzle, 5 in kit, 0.055" (1.40 MM)

1шт.

17

A48209

SHIM,1.50mm Thk

Nozzle, 5 in kit (.059") 1.50mm Thk

1шт.

17

A48210

SHIM,1.60mm Thk

Nozzle, 5 in kit (.063") 1.60mm Thk

1шт.

17

A48211

SHIM,1.70mm Thk

Nozzle, 5 in kit (.067") 1.70mm Thk

1шт.

17

A48212

SHIM,1.80mm Thk

Nozzle, 5 in kit (.071") 1.80mm Thk

1шт.

17

A48213

SHIM,1.90mm Thk

Nozzle, 5 in kit (.075") 1.90mm Thk

1шт.

18

A48198

SPRING

- nozzle pressure

1шт.

199

A48203

SEAT

- nozzle pressure spring

1шт.

20

A48199

VALVE

STOP - nozzle

1шт.

21

A48200

PIN

- valve stop

2шт.

22

A47750

NOZZLE INJECTION

TIP ASSEMBLY - nozzle injector, Includes: Ref. 23

1шт.

23

A76640

GASKET

- nozzle

1шт.

Whenever nozzle is removed from head, A76640 gasket must be replaced before nozzle is installed back in head.

1шт.

24

A48201

NUT

CAP NUT - nozzle end

1шт.
