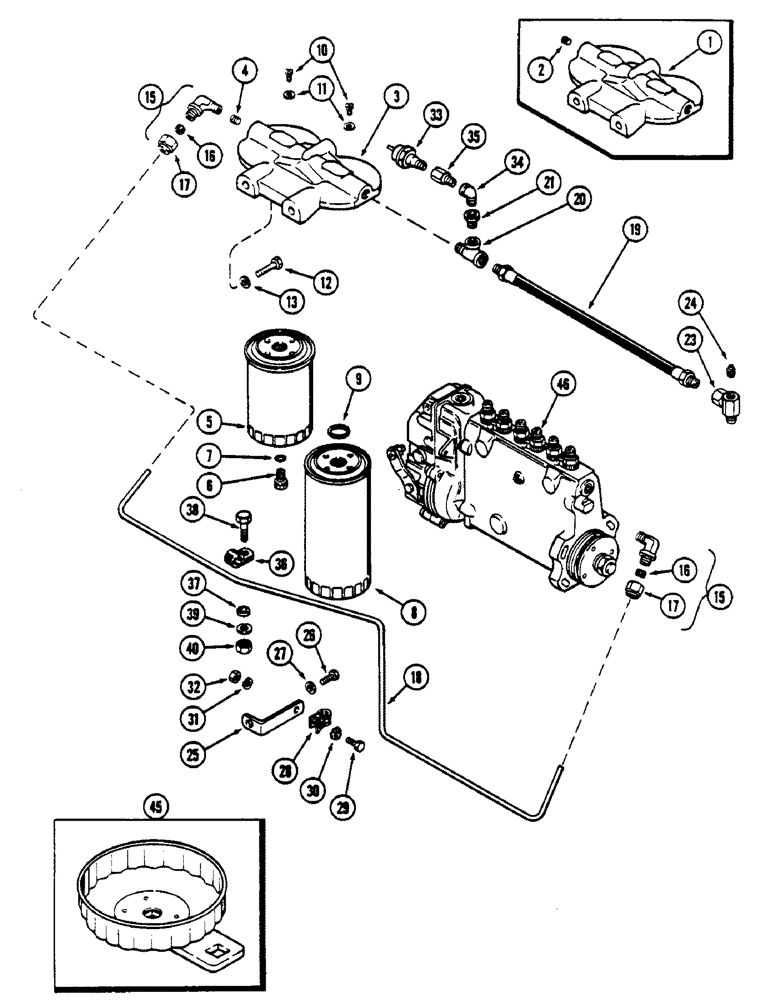

Запчасти Case IH 4690 (3-058) - FUEL FILTER SYSTEM, 504BDTI DIESEL ENGINE (03) - FUEL SYSTEM

1

A62339

HEAD

ASSEMBLY - filter mounting (Prior engine serial no. 10308300), Includes: Ref. 2

1шт.

2

222-1849

ELBOW,90 Degree, 17/32"-24 x 3/8" NPT, Comp

PLUG - 1/8" PT socket

1шт.

3

A155489

HEAD

ASSEMBLY - filter mounting (Engine serial no. 10308300 and after), Includes: Ref. 4

1шт.

4

222-1849

ELBOW,90 Degree, 17/32"-24 x 3/8" NPT, Comp

PLUG - 1/8" PT socket

1шт.

A44068

FUEL FILTER

ELEMENT KIT - fuel filter, Includes: Ref. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

FILTER - first stage, Includes: Ref. 6 and 7

1шт.

6

G49080

PLUG

- plastic, 3/8" NC

1шт.

7

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

1шт.

8

NSS

NOT SOLD SEPARAT

FILTER - second stage, Includes: Ref. 9

1шт.

9

A42315

GASKET

-, Serial Range: filter-head

1шт.

10

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, filter head

2шт.

11

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

- bleed screw

2шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - fuel line, 5/16" tube x 1/4" PT 90 degree, Includes: Ref. 16 and 17

2шт.

16

222-103

SLEEVE,5/16" Tube

(7.94 mm) 5/16" Tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube (7.94 MM)

1шт.

18

A157329

TUBE

- pump to filter (Replaces A62342)

1шт.

19

A155512

HOSE,0.38" ID x 14.12", SAE 100R6

HOSE - filter to pump (Replaces A65564)

1шт.

20

221-1691

TEE,Street, 1/4" NPT

- street, 1/4" PT

1шт.

21

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - reducer, 1/4" x 1/8" PT

1шт.

23

A20539

FITTING

UNION -, Serial Range: hose-pump

1шт.

24

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" PT square head

1шт.

25

A64856

BRACKET

- tube support

1шт.

26

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

28

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - tube

1шт.

29

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

30

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER - lock, 1/4" internal Shakeproof

1шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

32

25-104

NUT,1/4"-20, G5

1шт.

33

A162297

SWITCH

- fuel pressure sender (Replaces A66737) (See Figure 4-072)

1шт.

34

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

35

A161432

FITTING

SNUBBER -, Serial Range: switch-elbow

1шт.

36

49859

CLAMP

CLIP - tube, Serial Range: pump-filter

1шт.

37

A59660

SPACER

- clip

1шт.

38

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- 3/8" x 1-1/4" NC hex (Grade 5)

1шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

40

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

45

A64761

TOOL

- filter removal

1шт.

46

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 3-056)

1шт.
