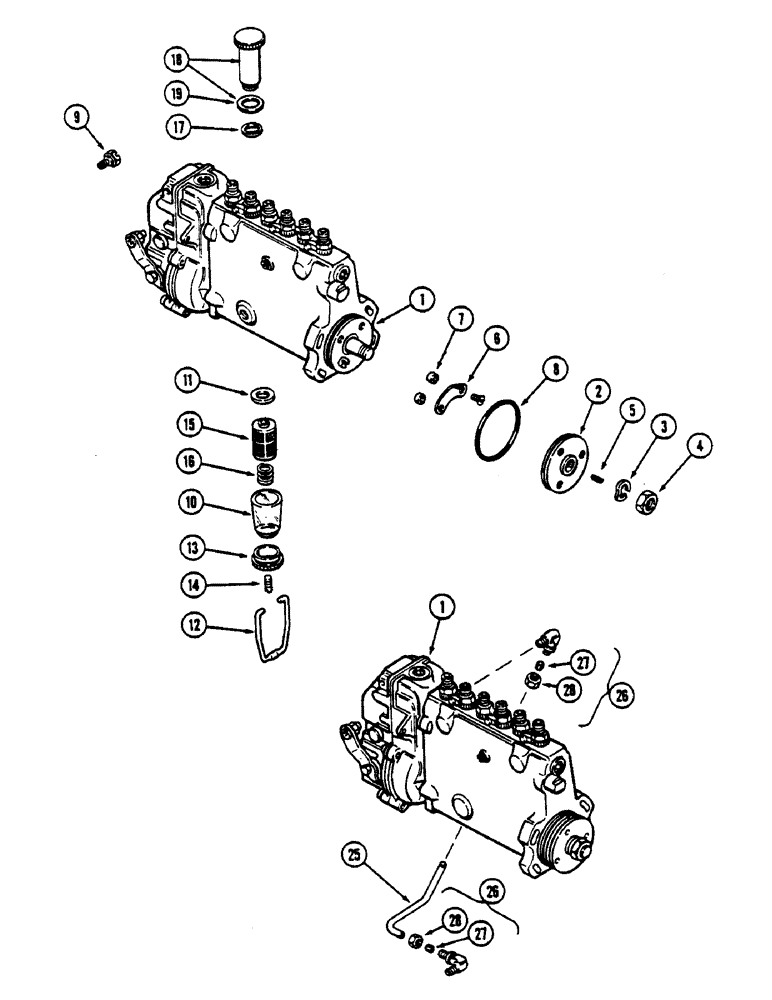

Запчасти Case IH 4690 (3-056) - FUEL INJECTION PUMP, 504BDTI DIESEL ENGINE (03) - FUEL SYSTEM

1

A142093

PUMP

ASSEMBLY - fuel injection (2200 RPM), Includes: Ref. 2 - 19

1шт.

1

AR142093

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP - N.A. Only

1шт.

1

AC142093

CORE-INJECTION PUMP

Return No, INJECTION PUMP - N.A. Only

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41851

LOCK WASHER

- lock, hub nut

1шт.

4

A41852

LOCK NUT

- hub

1шт.

5

A41850

KEY

-, Serial Range: hub-shaft

1шт.

6

A41858

INDICATOR

POINTER - hub adjustment

1шт.

7

A41859

BUSHING

SPACER - pointer

2шт.

8

A41856

O-RING,3mm Thk x 75mm ID

O RING - 2-21/64" ID x 1/8" width (59.13 ID x 3.17 MM width)

1шт.

9

814-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

- 4 x 0.7 x 8 MM hex (Control cable)

1шт.

10

A43347

BOWL

- filter

1шт.

11

A43346

GASKET

- bowl

1шт.

12

A43350

CLAMP

HANGER - bowl

1шт.

13

A43348

NUT

- hanger

1шт.

14

A43349

STUD

- bowl nut

1шт.

15

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

16

A43345

SPRING

- element

1шт.

17

A43351

SEAL

- copper, hand pump

1шт.

18

A43343

CARTRIDGE

PUMP ASSEMBLY - hand printer, Includes: Ref. 19

1шт.

19

A45342

GASKET

- pump

1шт.

25

A136903

TUBE

- oil

1шт.

26

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 1/4" tube x 1/8" PT 90 degree, Includes: Ref. 27 and 28

2шт.

27

222-102

SLEEVE,1/4" Tube

(6.35 mm) 1/4" Tube

1шт.

28

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube (6.35 MM)

1шт.
