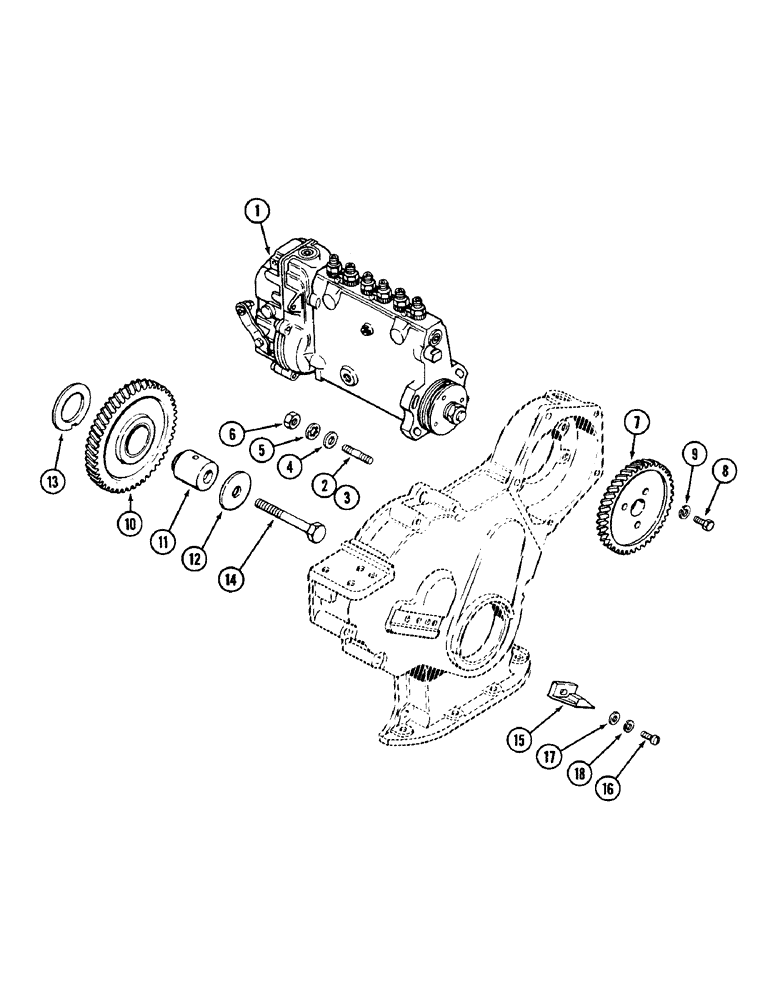

Запчасти Case IH 4690 (3-054) - FUEL INJECTION PUMP DRIVE, 504BDTI DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 3-056)

1шт.

2

A59077

STUD

- 3/8" NC x 1-5/16" (Replaces A58689)

3шт.

3

A142092

STUD

- drilled, 3/8" NC x 1-7/8"

1шт.

4

A57470

WASHER

- flat, 13/32" x 11/16" x 1/16" (10.32 x 17.46 x 1.59 MM)

4шт.

5

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

- slotted, 3/8" NC hex

1шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

78

A58693

GEAR

- drive, injection pump

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

10

A62542

GEAR

ASSEMBLY - idler

1шт.

11

A58690

SHAFT

- idler gear

1шт.

12

A58692

PLATE

WASHER - thrust, idler (Replace A58691)

1шт.

13

A58691

WASHER

PLATE - thrust, idler (Replaces A58692)

1шт.

14

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1шт.

15

A63911

INDICATOR

POINTER - timing

1шт.

16

169-119

SCREW,Sl Fil Hd, #12 - 24 x 3/4"

- #12-24 x 3/4" fillister head slotted

1шт.

17

195-16

WASHER,#12

- 1/4" x 9/16" x 1/16" (6.4 x 14.3 x 1.6 MM)

1шт.

18

192-108

LOCK WASHER,#12

WASHER - lock, #12

1шт.
