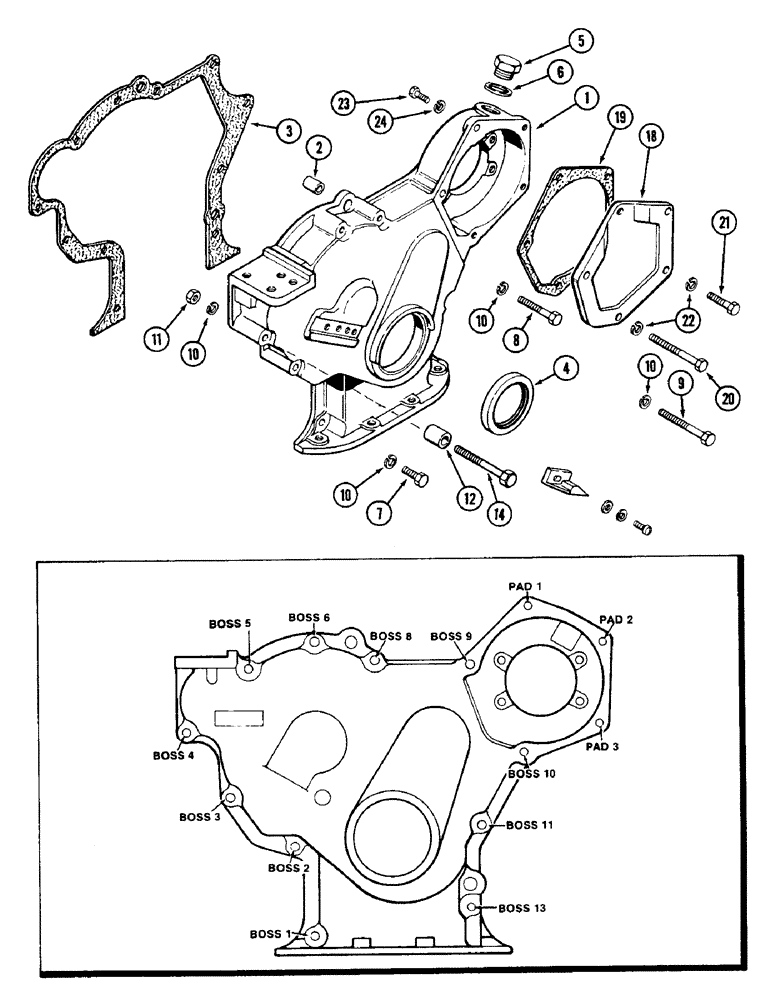

Запчасти Case IH 4690 (3-052) - TIMING GEAR COVER, 504BDTI DIESEL ENGINE (03) - FUEL SYSTEM

1

A63909

COVER

ASSEMBLY - timing gear, Includes: Ref. 2

1шт.

2

A58611

PIN

- dowel

1шт.

3

A58612

GASKET

-, Serial Range: cover-block

1шт.

4

A62049

OIL SEAL

- oil, crankshaft front

1шт.

5

A21140

PLUG

- timing window

1шт.

6

A58613

SEALING WASHER

GASKET - plug

1шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Boss 1, 2, 11 and 13) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

8

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

(Boss 3 and 8) Hex, 3/8"-16 x 2 1/2", G5

2шт.

9

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

(Boss 4 and 5) Hex, 3/8"-16 x 3 1/2", G5

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

A19774

BUSHING

SPACER - pry point (Used with 13-656 bolt, 3-1/2" long)

1шт.

14

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8" x 2-1/2" NC hex (Boss 6) (Replaces 13-656, 3-1/2" long)

1шт.

18

A61053

COVER

- pump drive

1шт.

19

A58615

GASKET

- cover

1шт.

20

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

(Boss 9 and 10) Hex, 3/8"-16 x 3 1/2", G5

2шт.

21

A151921

BOLT

- drilled (3/8" x 1-3/4" NC hex) (Pad 2 and 3)

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Pad 1) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.
