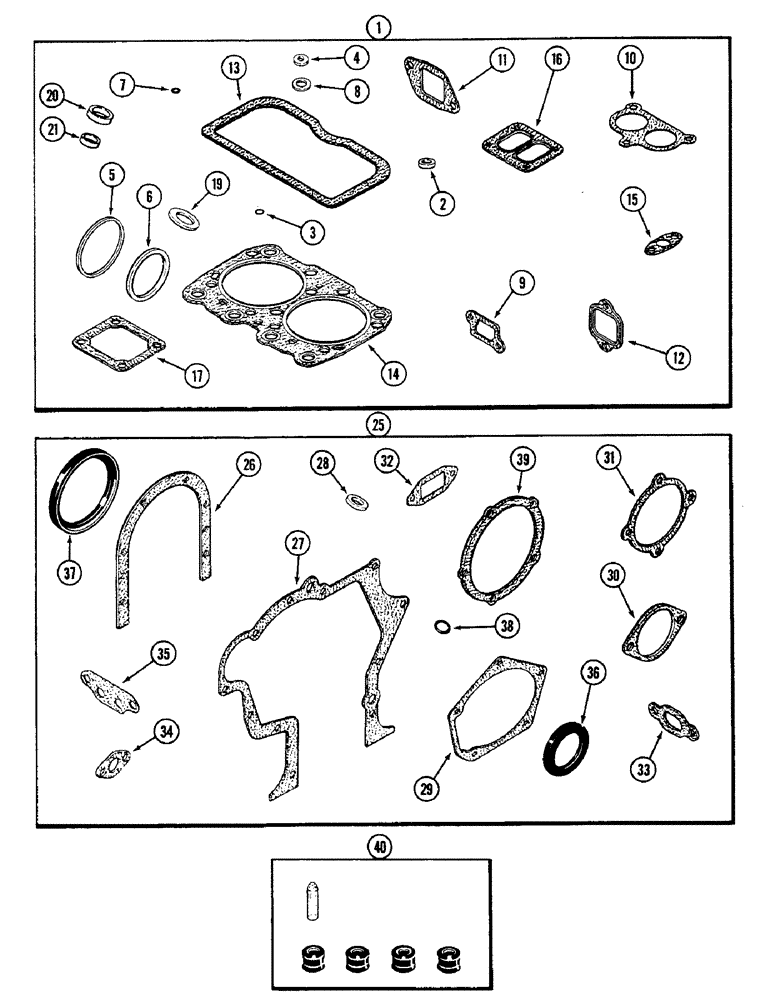

Запчасти Case IH 4690 (2-050) - ENGINE GASKET KITS, 504BDTI DIESEL ENGINE, VALVE GRIND KIT (02) - ENGINE

1

A157300

GASKET

KIT - valve grind (Replaces A151404), Includes: Ref. 2 - 21

1шт.

For a complete engine verhaul order A157300, A44075, A152479, and 3-M20614.

1шт.

2

A142098

GROMMET

- valve cover stud (Replaces A23684)

6шт.

3

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

O RING - rocker shaft tube

3шт.

4

A34133

GASKET

- breather tube screw

3шт.

5

A138817

RING,2.64mm Thk

SEAL - turbocharger exhaust

1шт.

6

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- turbocharger exhaust

1шт.

7

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem (See ref. 40)

12шт.

8

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather, Serial Range: tube-cover

3шт.

9

A58637

MANIFOLD GASKET

- water manifold

3шт.

10

A58639

GASKET

- thermostat housing

1шт.

11

A58662

MANIFOLD GASKET

- intake manifold

6шт.

12

A140252

MANIFOLD GASKET

- exhaust manifold

6шт.

13

A156960

CYLINDER HEAD GASKET,3.05mm Thk

- cylinder head cover (Replaces A65734)

3шт.

14

A138397

CYLINDER HEAD GASKET

- cylinder, Serial Range: head-block

3шт.

15

A58892

GASKET,1.59mm Thk

- turbocharger drain tube

1шт.

16

A58899

GASKET,0.45mm Thk

- turbocharger mounting

1шт.

17

A58910

GASKET

- intake elbow

1шт.

19

A76640

GASKET

- injection nozzle

6шт.

20

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- injection nozzle

6шт.

21

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injection nozzle

6шт.

25

A44075

GASKET KIT

- cylinder block, Includes: Ref. 26 - 39

1шт.

For a complete engine verhaul order A157300, A44075, A152479, and 3-M20614.

1шт.

26

A32830

GASKET

- rear oil seal retainer

1шт.

27

A58612

GASKET

- timing gear cover

1шт.

28

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

29

A58615

GASKET

- fuel pump cover

1шт.

30

A58617

GASKET

- pump opening (Not used this unit)

1шт.

31

A58646

GASKET

- water pump (Not used this unit)

1шт.

32

A58649

GASKET

- water pump body

1шт.

33

A58670

GASKET

- oil cooler, Serial Range: tube-block

1шт.

34

A58680

OIL PAN GASKET SET

- oil cooler, Serial Range: tube-pump

1шт.

35

A58756

OIL PAN GASKET SET

- oil filter base (Not used this unit)

1шт.

36

A62049

OIL SEAL

- oil, crankshaft front

1шт.

37

A62050

OIL SEAL

- oil, crankshaft rear

1шт.

38

A64434

O-RING,0.93" ID x 1.142" x 0.106"

O RING - oil pump and filter base

3шт.

39

A76656

GASKET

- water pump

1шт.

40

M20614

SEAL KIT

- valve seal (Includes 4 seals and tool), cylinder block

3шт.
