Запчасти Case IH 4690 (2-046) - OIL PUMP, 504BDTI DIESEL ENGINE (02) - ENGINE

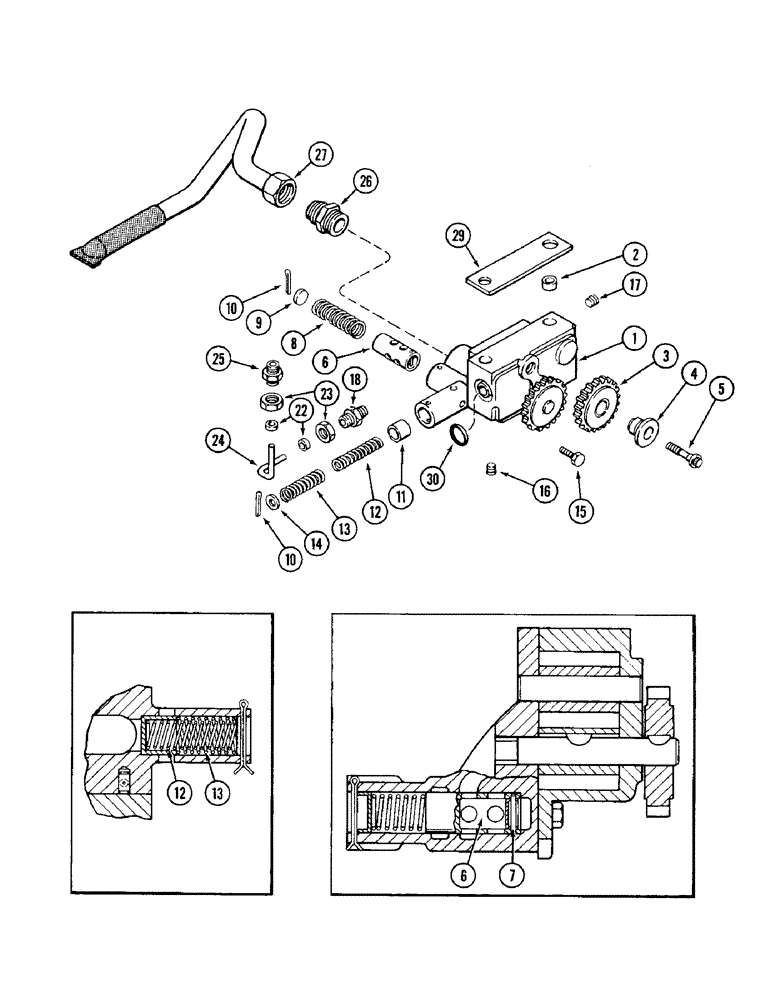

Схема запчастей Case IH 4690 - (2-046) - OIL PUMP, 504BDTI DIESEL ENGINE (02) - ENGINE
12
14
11
27
26
10
10
13
6
17
12
24
8
22
2
13
7
15
29
4
6
9
18
5
1
16
25
30
3
23

Артикул

Название

Примечание

Количество

1

A152998

PUMP

ASSEMBLY - oil, Includes: Ref. 2 - 18

1шт.

2

A58915

SLEEVE

- locating

1шт.

3

A63941

GEAR WHEEL

GEAR ASSEMBLY - idler

1шт.

4

A63944

SHAFT

- idler gear

1шт.

5

A63945

12 PT SCREW

BOLT - cap, LH thread

1шт.

6

A75286

VALVE

ASSEMBLY - relief (Includes cap plug), Includes: Ref. 7

1шт.

7

138-2063

PIN,3/32" x 1", Coiled

1шт.

8

A63949

SPRING

- relief valve, 2-7/8" (73.02 MM) free length

1шт.

9

41-1016

PLUG,Cup, 1"

- relief valve

1шт.

10

132-36

COTTER PIN,Ext Prong Sq Cut, 3/32" x 2"

PIN - cotter, 3/32" x 1-3/4"

2шт.

11

A76152

VALVE

- safety, pressure relief

1шт.

12

A76154

SPRING

- inner, 3-7/64" (78.98 MM) free length

1шт.

13

A76153

SPRING

- outer, 2-7/16" (61.91 MM) free length

1шт.

14

195-25

WASHER,3/8"

- 13/32" x 13/16" x 1/16" (10.3 x 20.6 x 1.6 MM)

1шт.

15

26-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

16

221-850

PLUG,Hex Soc, 1/16"-27

- 1/16" PT socket head

3шт.

17

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" PT socket head

1шт.

18

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR - 1/4" tube x 1/8" PT

1шт.

22

222-153

SLEEVE,1/4" Tube

2шт.

23

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

2шт.

24

A75290

TUBE

- sensing, oil gallery

1шт.

25

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR - 1/4" tube x 1/8" PT (In block)

1шт.

26

A142004

CONNECTOR, ELEC

CONNECTOR - suction tube

1шт.

27

A142503

SCREEN

TUBE ASSEMBLY - suction (Includes screen)

1шт.

29

A58859

SHIM,.005" Thk

Pump mounting (0.127 mm) .005" Thk

1шт.

30

A64434

O-RING,0.93" ID x 1.142" x 0.106"

O RING - oil port, 59/64" ID x 7/64" width (23.42 ID x 2.78 MM width)

1шт.

Выбрано товаров: 26
