(2-044) - PISTON ASSEMBLY, WITH THREE GROOVE SLEEVE, 504BDTI DIESEL ENGINE

Запчасти Case IH 4690 (2-044) - PISTON ASSEMBLY, WITH THREE GROOVE SLEEVE, 504BDTI DIESEL ENGINE (02) - ENGINE

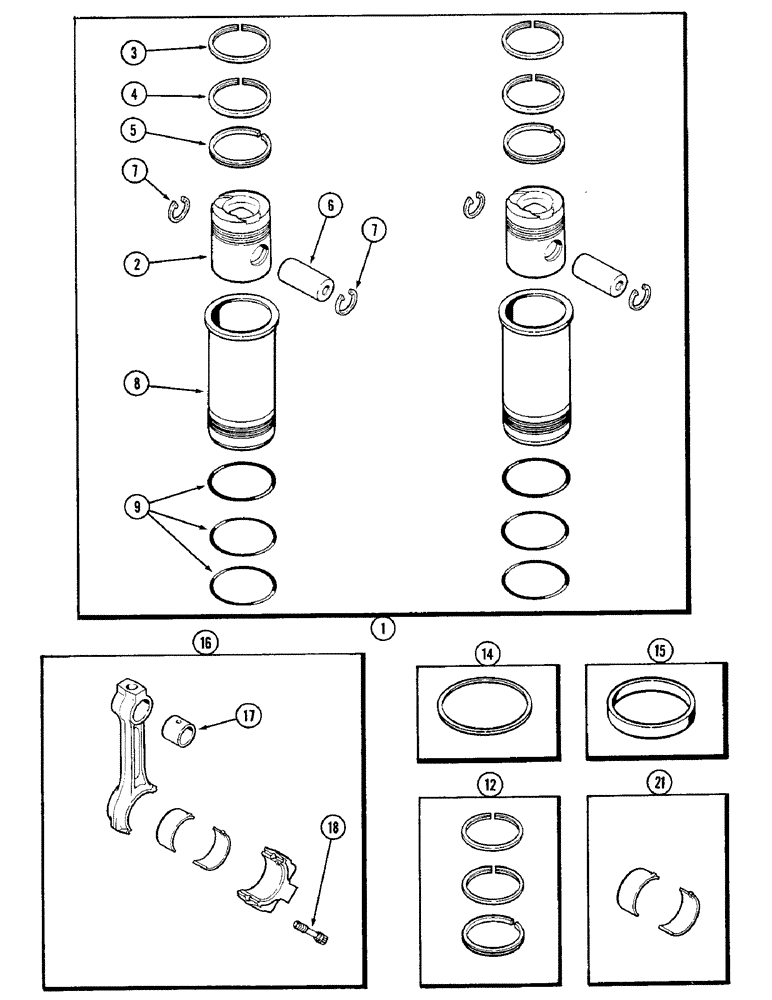

Схема запчастей Case IH 4690 - (2-044) - PISTON ASSEMBLY, WITH THREE GROOVE SLEEVE, 504BDTI DIESEL ENGINE (02) - ENGINE
7
9
4
21
17
1
18
2
8
12
6
3
14
16
7
15
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A152172

PISTON

PISTON AND SLEEVE KIT - matched set of 2, Includes: Ref. 2 - 9

3шт.

2

A138235

PISTON

PISTON - aluminum, 4-5/8" (117.47 MM) bore

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, first groove (Order ref. 12)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order ref. 12)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, third groove (Order ref. 12)

2шт.

6

A58584

PIN,45.71mm OD x 98.17mm L

PIN - piston

2шт.

7

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin 1.812", Int, #181

4шт.

8

A153638

SLEEVE CYLINDER

SLEEVE - cylinder (Three grooves)

2шт.

9

A144667

O-RING,4.734" ID x 5.012" OD x 0.0139"

O RING - sleeve seal

6шт.

12

A44054

RING

RING KIT - replacement (Set of 1)

6шт.

14

A148553

SHIM

SHIM - sleeve, 0.010" (0.254 MM) (Repairs only)

1шт.

14

A148554

SHIM

SHIM - sleeve, 0.005" (0.127 MM) (Repairs only)

1шт.

15

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

BUSHING - sleeve (Repairs only)

1шт.

A150328

ADHESIVE

LOCTITE - tube (Not shown)

1шт.

16

A65032

ROD

ROD ASSEMBLY - connecting, Includes: Ref. 17 and 18

6шт.

16

AR65032

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

16

AC65032

CORE-ROD CONNECTING

Core Connecting Rod Return Part Number

6шт.

17

A58580

BUSHING,45.3mm ID x 50.46mm OD x 45.47mm L

BUSHING - piston pin, connecting rod

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - cap, connecting rod

2шт.

21

A41758

BEARING LINER

INSERT - connecting rod bearing, standard (Set of 2)

6шт.

21

A41899

BEARING LINER

INSERT - connecting rod bearing, 0.002" undersize (0.05 MM) (Set of 2)

6шт.

21

A41900

BEARING LINER

INSERT - connecting rod bearing, 0.010" undersize (0.25 MM) (Set of 2)

4шт.

21

A41901

BEARING LINER

INSERT - connecting rod bearing, 0.020" undersize (0.50 MM) (Set of 2)

6шт.

21

A41902

BEARING LINER

INSERT - connecting rod bering, 0.030" undersize (0.75 MM) (Set of 2)

6шт.
