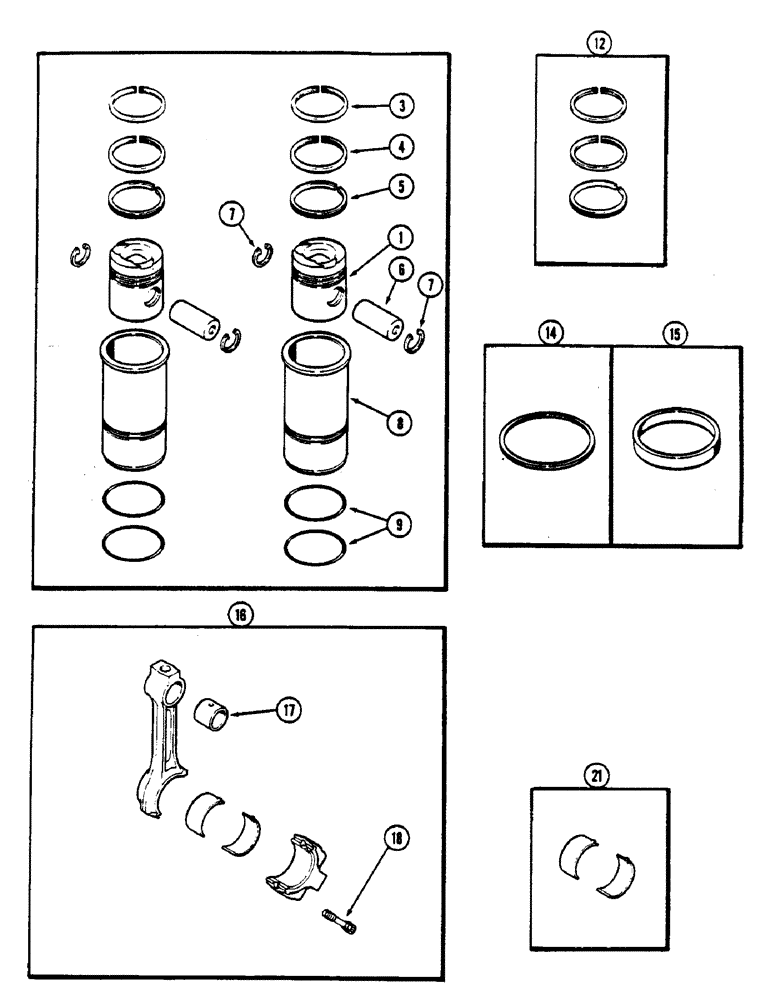

Запчасти Case IH 4690 (2-042) - PISTON ASSEMBLY, WITH TWO GROOVE SLEEVE, 504BDTI DIESEL ENGINE (02) - ENGINE

1

A138235

PISTON

Aluminum, 4-5/8" (117.47 mm) bore

6шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, first groove (Order ref. 12)

6шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order ref. 12)

6шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, third groove (Order ref. 12)

6шт.

6

A58584

PIN,45.71mm OD x 98.17mm L

Piston

6шт.

7

A44249

SNAP RING,1.812", Int, #181

Piston pin

12шт.

8

REF

INSTRUCTION

SLEEVE - cylinder (Two grooves) (Order ref. 8 and 9, Figure 2-044)

6шт.

9

A146616

O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro

Sleeve seal

12шт.

12

A44054

RING

KIT - replacement (Set of 1)

6шт.

14

A148553

SHIM

Sleeve, 0.010" (0.254 mm) (Repairs only)

1шт.

14

A148554

SHIM

Sleeve, 0.005" (0.127 mm) (Repairs only)

1шт.

15

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

Sleeve (Repairs only)

1шт.

A150328

ADHESIVE

LOCTITE - tube (Not shown)

1шт.

16

A65032

ROD

ASSY - connecting, Incl. Ref. 17 and 18

6шт.

16

AR65032

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

16

AC65032

CORE-ROD CONNECTING

Core Connecting Rod Return Part Number

6шт.

17

A58580

BUSHING,45.3mm ID x 50.46mm OD x 45.47mm L

BUSHING - piston pin, connecting rod

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

Cap, connecting rod

2шт.

21

A41758

BEARING LINER

INSERT - connecting rod bearing, standard (Set of 2)

6шт.

21

A41899

BEARING LINER

INSERT - connecting rod bearing, 0.002" undersize (0.05 mm) (Set of 2)

6шт.

21

A41900

BEARING LINER

INSERT - connecting rod bearing, 0.010" undersize (0.25 mm) (Set of 2)

4шт.

21

A41901

BEARING LINER

Connecting rod bearing, 0.020" undersize (0.50 mm) (Set of 2)

6шт.

21

A41902

BEARING LINER

INSERT - connecting rod bearing, 0.030" undersize (0.75 mm) (Set of 2)

6шт.
